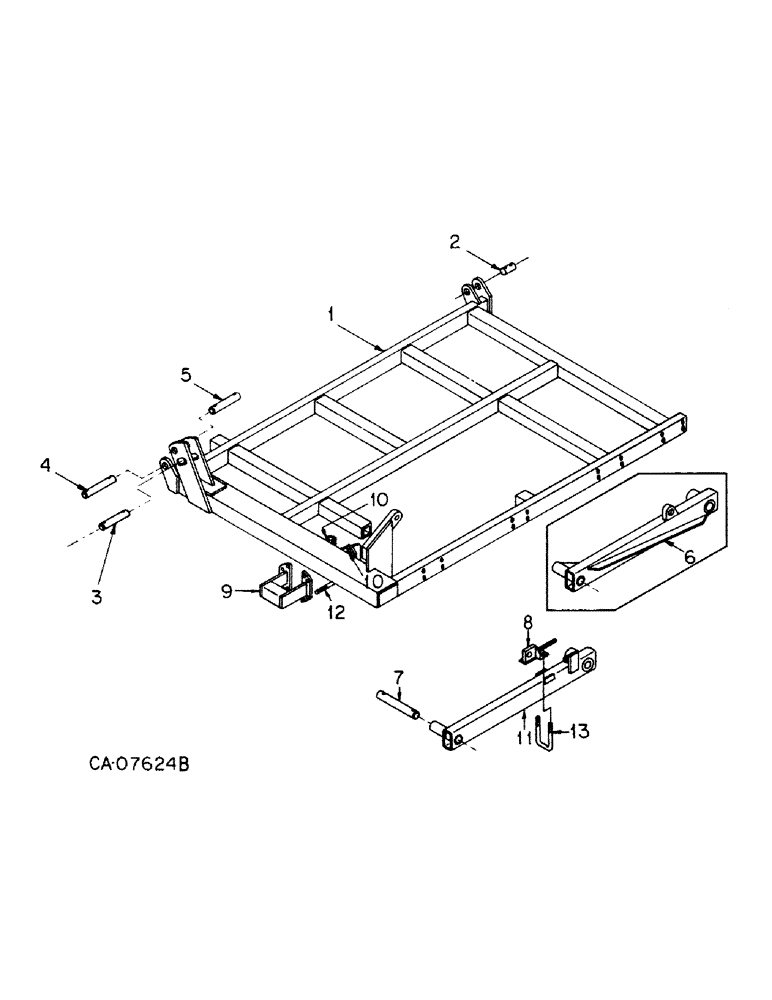

Запчасти Case IH 365 (D-04) - FOLDING WING FRAMES AND CONNECTIONS (09) - CHASSIS

1

1256424C1

FRAME

wing left 2 ft 8 in., 2 on 19 ft 8 in.

1шт.

1

1256425C1

FRAME

wing right 2 ft 8 in, 2 on 19 ft 8 in.

1шт.

1

1256426C1

FRAME

wing left 4 ft 2 in., 2 on 22 ft 8 in.

1шт.

1

1256427C1

FRAME

wing right 4 ft 2 in.., 2 on 22 ft 8 in.

1шт.

1

1256428C2

FRAME

wing left 5 ft 8 in., 2 on 25 ft 8 in.

1шт.

1

1256429C2

FRAME

wing right 5 ft 8 in., 2 on 25 ft 8 in.

1шт.

2

62574C1

PIN

lift tube

1шт.

For 19 ft 8 in., 22 ft 8 in. and 25 ft 8 in. sizes.

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

3

1256430C1

PIN

cylinder, trailing only

1шт.

For 19 ft 8 in., 22 ft 8 in. and 25 ft 8 in. sizes.

1шт.

373025R91

PIN ASSY.

PIN, quick attachable snap

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1.062 x 2.000 x .108

8шт.

4

1256431C1

PIN

left

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

5

1256432C1

PIN

lock

1шт.

For 19 ft 8 in., 22 ft 8 in. and 25 ft 8 in. sizes.

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

373025R91

PIN ASSY.

PIN, quick attachable snap

1шт.

6

1256433C1

ARM

wing gauge wheel LH, Serial Range: -10370

1шт.

For 19 ft 8 in., 22 ft 8 in. and 25 ft 8 in. sizes.

1шт.

6

1256434C1

ARM

wing gauge wheel RH, Serial Range: -10370

1шт.

For 19 ft 8 in., 22 ft 8 in. and 25 ft 8 in. sizes.

1шт.

180159

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

7/16 x 2-3/4 type 5

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5

1шт.

7

1256401C1

PIN

gauge wheel arm

1шт.

For 19 ft 8 in., 22 ft 8 in. and 25 ft 8 in. sizes.

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

6шт.

8

1265743C1

ANCHOR

hyd cyl adjustable LH, Start Serial: 10371

1шт.

For 19 ft 8 in., 22 ft 8 in. and 25 ft 8 in. sizes.

1шт.

NLS

NO LONGER SERVICED

.812 x 1.469 x .108

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

8

1265746C1

ANCHOR

hyd cyl adjustable RH, Start Serial: 10371

1шт.

For 19 ft 8 in., 22 ft 8 in. and 25 ft 8 in. sizes.

1шт.

131017

WASHER

.812 x 1.469 x .108

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

9

1256665C1

BRACKET

ASSY, tool, 2 for 16 ft 4 in. trailing, 4 for 19 ft 8 in., 22 ft 8 in. & 25 ft 8 in. trailing

1шт.

10

1256666C1

BAR

CLAMP, flat, 4 for 16 ft 4 in. trailing, 8 for 19 ft. 8 in., 22 ft 8 in. & 25 ft 8 in. trailing

1шт.

11

1265742C1

ARM

wing gauge wheel LH, Start Serial: 10371

1шт.

For 19 ft 8 in., 22 ft 8 in. and 25 ft 8 in. sizes.

1шт.

11

1265745C1

ARM

wing gauge wheel RH, Start Serial: 10371

1шт.

For 19 ft 8 in., 22 ft 8 in. and 25 ft 8 in. sizes.

1шт.

12

1265749C1

STUD

threaded, 8 for 16 ft 4 in., 16 for 19 ft 8 in., 22 ft 8 in. and 25 ft 8 in.

1шт.

13

1265744C1

U-BOLT,7/16" - 14 x 2.03" W x 5.5" L

wing gauge wheel, Start Serial: 10371

2шт.

For 19 ft 8 in., 22 ft 8 in. and 25 ft 8 in. sizes.

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

271501

SOCKET

NUT, 7/16 type 5

4шт.
