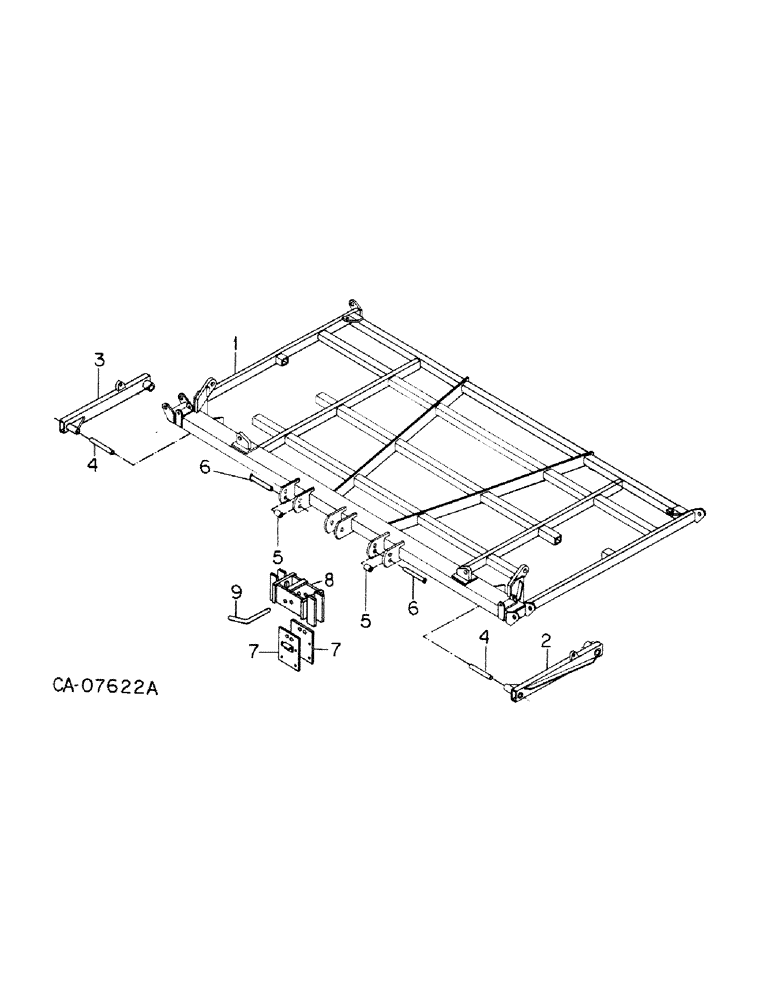

Запчасти Case IH 365 (D-02) - CENTER FRAME & GAUGE WHEEL ARMS (09) - CHASSIS

1

1256399C1

FRAME

center

1шт.

NLS

NO LONGER SERVICED

7/16 x 2-3/4 type 5

2шт.

9413954

LOCK NUT,7/16"-14, GB

NUT, 7/16 PHC p/t lock type 5

2шт.

2

1256400C1

ARM

gauge wheel LH

1шт.

3

1256406C1

ARM

gauge wheel RH

1шт.

4

1256401C1

PIN

2шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

4шт.

5

1256402C1

BUSHING

1.25 ID, cat II

2шт.

5

1256403C1

BUSHING

1.48 ID, cat III

2шт.

6

1256404C1

PIN

hitch 1-1/8 OD, cat II

2шт.

6

1256405C1

PIN

hitch 1-1/16 OD, cat III

2шт.

517758R91

SPLIT PIN/SAFETY PIN

PIN, quick attachable cot.

2шт.

7

1265753C1

CARRIER

transport

4шт.

187147

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

5/16 x 3-1/2 type 5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

120376

NUT,5/16"-18, G5

8шт.

8

1265758C1

LOCK

ASSY, transport

2шт.

9

1265748C1

PIN

transport lock

2шт.

480523R1

HAIR PIN COTTER

quick attachable, transport lock pin

2шт.
