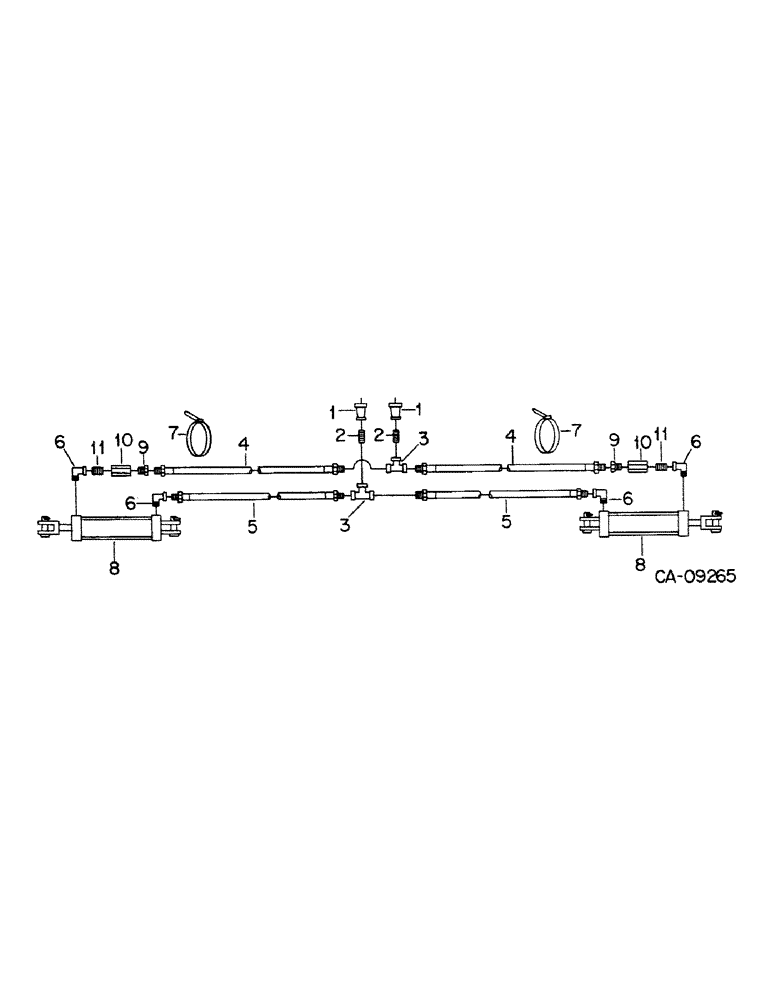

Запчасти Case IH 365 (D-28) - HYDRAULIC CYLINDER & CONNECTIONS, WING FOLD, 19 FT 8 IN., 22 FT 8 IN. AND , PRODUCT GRAPHICS (08) - HYDRAULICS

1

444114

COUPLING,1/2"-14 NPTF x 3/8"-18 NPTF

1/2 to 3/8 pln auto pipe

2шт.

2

109421

PIPE,Nipple, 3/8" NPT x 1 1/2"

NIPPLE, 3/8 x 1-1/2 pln long pipe

2шт.

3

444122

TEE,3/8"-18 NPTF Fem

3/8-18 pln auto pipe

2шт.

4

1265747C1

HOSE

ASSY, 114 x 60 in. hydraulic lift cylinder

2шт.

5

1265700C1

HOSE

ASSY, 1/4 x 54 in. hydraulic lift cylinder

2шт.

6

444045

ELBOW

1/2-14 znp auto 90D pipe street

4шт.

7

58556C1

CABLE TIE

TIE, wrap

2шт.

8

75753C91

CYLINDER ASSY, 3-1/2 x 8 in. double acting hydraulic, note

2шт.

75765C1

SEAL

KIT, cylinder o-ring and seal service, for service replacement of cylinder assy, 75753C91, order

1шт.

8

1272147C91

CYLINDER

ASSY, 3-1/2 x 8 in. double acting hydraulic, note

1шт.

1260900C1

HYD CONNECTOR,1/2" - 14 x 3/4" - 16 NPT

ADAPTER, 1/2-14 NPTF female x 3/4-16 male

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

2шт.

9

144215

ADAPTER,1/2" NPT Male x 1/4" NPT Fem

1/2 to 1/4 znp out/h/hd pipe

2шт.

10

62517C1

VALVE

RESTRICTOR, hydraulic cylinder inlet hose

2шт.

11

121208

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE, 1/2 x 1-1/8 pln close pipe

2шт.

77583C91

PACKAGE

IH trademark, large size, consists of, (2) IH trademark 6.58 x 7.09 (NSS), (2) IH trademark 7.68 x 8.27 (NSS), (2) IH trademark 10.24 x 11.02 (NSS)

2шт.

77582C91

PACKAGE

IH trademark, medium size, consists of, (2) IH trademark 3.66 x 3.94 (NSS), (2) IH trademark 4.39 x 4.72 (NSS), (2) IH trademark 5.48 x 5.91 (NSS)

2шт.

77581C91

PRODUCT GRAPHIC

PACKAGE, IH trademark, small size, consists of, (2) IH trademark 1.46 x 1.57 (NSS), (2) IH trademark 2.19 x 2.36 (NSS), (2) trademark 2.93 x 3.15 (NSS)

2шт.

547495R92

DECAL KIT

PACKAGE, International, for red machines, consists of, (2) International 8.56 x .56 (NSS), (2) International 14.06 x .94 (NSS), (2) International 23.12 x 1.50 (NSS), (2) International 35.12 x 2.25 (NSS)

2шт.

547497R92

DECAL

PACKAGE, model designation, for red machines, consists of, (2) model designation 8.78 x 2.45 (NSS), (2) model designation 14.08 x 4.50 (NSS), (2) model designation 20.04 x 7.57 (NSS), (2) model designation 15.20 x 7.56 (NSS)

2шт.

175311C1

REFLECTOR

red

2шт.

174732C1

REFLECTOR

amber

1шт.

1254170C1

DECAL

PRODUCT GRAPHIC, caution

1шт.

198195A1

DECAL

Case logo, new, the model designation is 222579A1

1шт.
