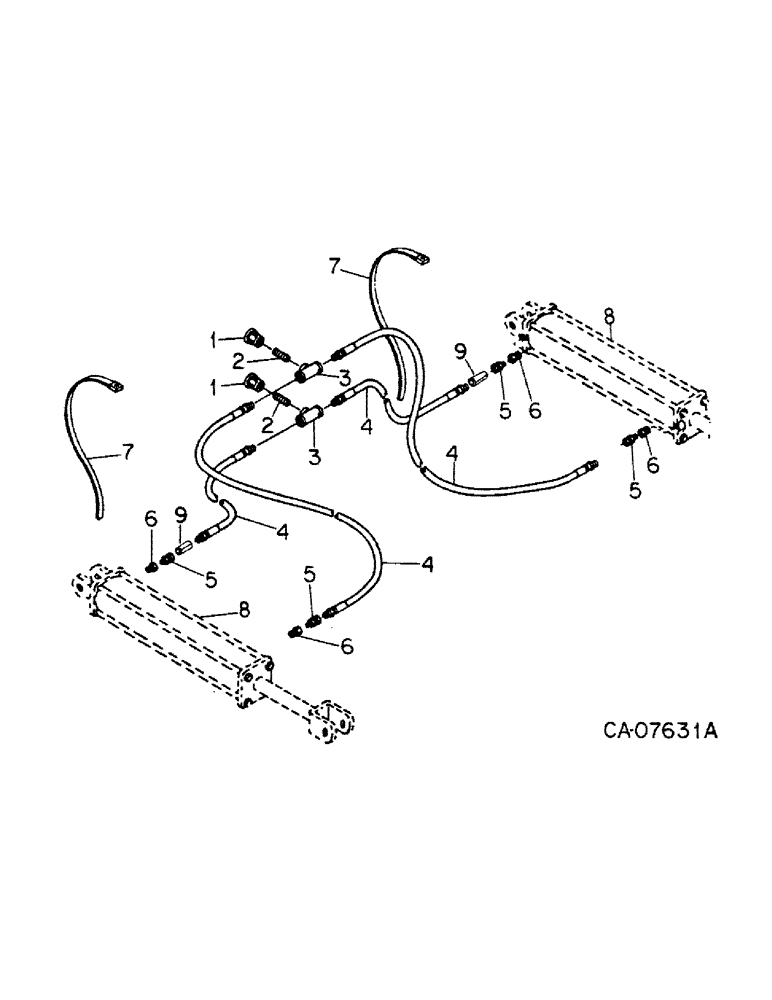

Запчасти Case IH 365 (D-27) - HYDRAULIC CYLINDER & CONNECTIONS, WING FOLDING, 19 FT 8 IN., (08) - HYDRAULICS

1

444114

COUPLING,1/2"-14 NPTF x 3/8"-18 NPTF

1/2 to 3/8 pln auto pipe

2шт.

2

109421

PIPE,Nipple, 3/8" NPT x 1 1/2"

NIPPLE, 3/8 x 1-1/2 pln long pipe

2шт.

3

444122

TEE,3/8"-18 NPTF Fem

3/8-18 pln auto pipe

2шт.

4

1256447C1

HYDRAULIC HOSE

HOSE, hydraulic 72 in.

4шт.

5

1256448C1

ADAPTER

SWIVEL, 2-way restrictor

4шт.

6

444016

REDUCER

ADAPTER, 1/2 to 3/8 pln auto pipe

4шт.

7

386170C1

CABLE TIE,.30" x 27 1/2"

TIE, plastic wrap

2шт.

8

60739C91

CYLINDER

ASSY, 3-1/2 x 8 in. double acting hydraulic, note

2шт.

547725R91

SEAL KIT

PACKAGE, cylinder o-ring and seal service, for service replacement of cylinder assy 60739C91, order

1шт.

8

1272147C91

CYLINDER

ASSY, 3-1/2 x 8 in. double acting hydraulic, note

1шт.

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN, 1 x 3-1/4 znp clevis

2шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.

1260900C1

HYD CONNECTOR,1/2" - 14 x 3/4" - 16 NPT

ADAPTER, 1/2-14 NPTF female x 3/4-16 male

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

2шт.

8

140683C94

HYDRAULIC CYLINDER

CYLINDER ASSY, 3-1/2 x 8 in. double acting hydraulic, note, order cylinder assy, 1272147C91

1шт.

79980C1

SEAL KIT

cylinder o-ring and seal service

1шт.

9

62517C1

VALVE

RESTRICTOR, hyd cyl inlet hose

2шт.
