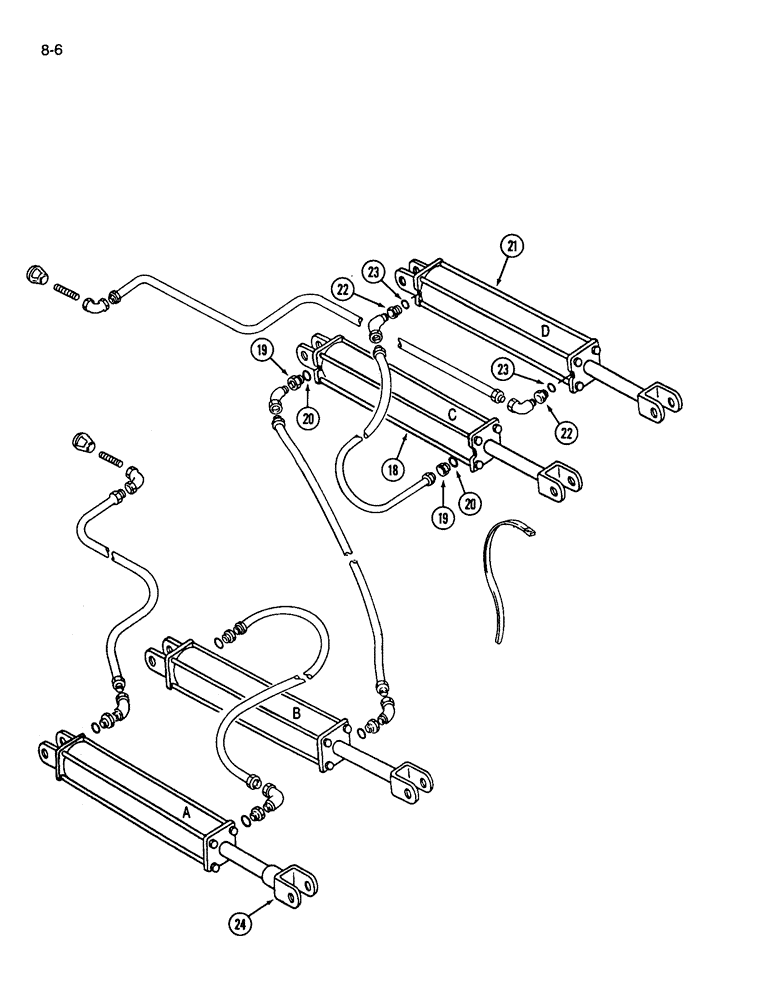

Запчасти Case IH 365 (8-06) - HYDRAULIC CIRCUIT, DEPTH CONTROL, FOLDING FRAME, MACHINES BUILT P.I.N. 10371 AND AFTER (08) - HYDRAULICS

18

1923517C91

CYLINDER

ASSEMBLY - hydraulic, 3-1/2 x 8 inch (See Page 8-23)

1шт.

18

85029C92

CYLINDER

ASSEMBLY - hydraulic, 3-1/2 x 8 inch (See Page 8-25) (Labled C for trailing machines)

1шт.

19

1272523C1

HYD CONNECTOR,3/4"-16 Male ORB x 3/8"-18 NPT Fem

ADAPTER - 3/4 inch male x 3/8 inch female

2шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

21

1923516C91

CYLINDER

ASSEMBLY - hydraulic, 3-1/4 x 8 inch (See Page 8-19)

1шт.

87423770R

REMAN-HYD CYLINDER

365 CaseIH Vibra Tine Cult. Prior To P.I.N. 10371 , Reman For New P/N's 1923516C91 & 87423770, N.A. Only

1шт.

87423770C

CORE-HYD CYLINDER

Return Number, For N.A. Only

1шт.

21

85028C92

CYLINDER

ASSEMBLY - hydraulic, 3-1/4 x 8 inch (See Page 8-21) (Labled D for trailing machines)

1шт.

87423770R

REMAN-HYD CYLINDER

365 CaseIH Vibra Tine Cult., Reman For New P/N's 85028C92 & 87423770, N.A. Only

1шт.

87423770C

CORE-HYD CYLINDER

Return Number, For N.A. Only

1шт.

22

1272523C1

HYD CONNECTOR,3/4"-16 Male ORB x 3/8"-18 NPT Fem

ADAPTER - 3/4 inch male x 3/8 inch female

2шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

24

1256657C1

KIT

- stop collar

1шт.

Ref #24A - 7737869 Cylinder Stop Collar Pkg 08/01/96

1шт.
