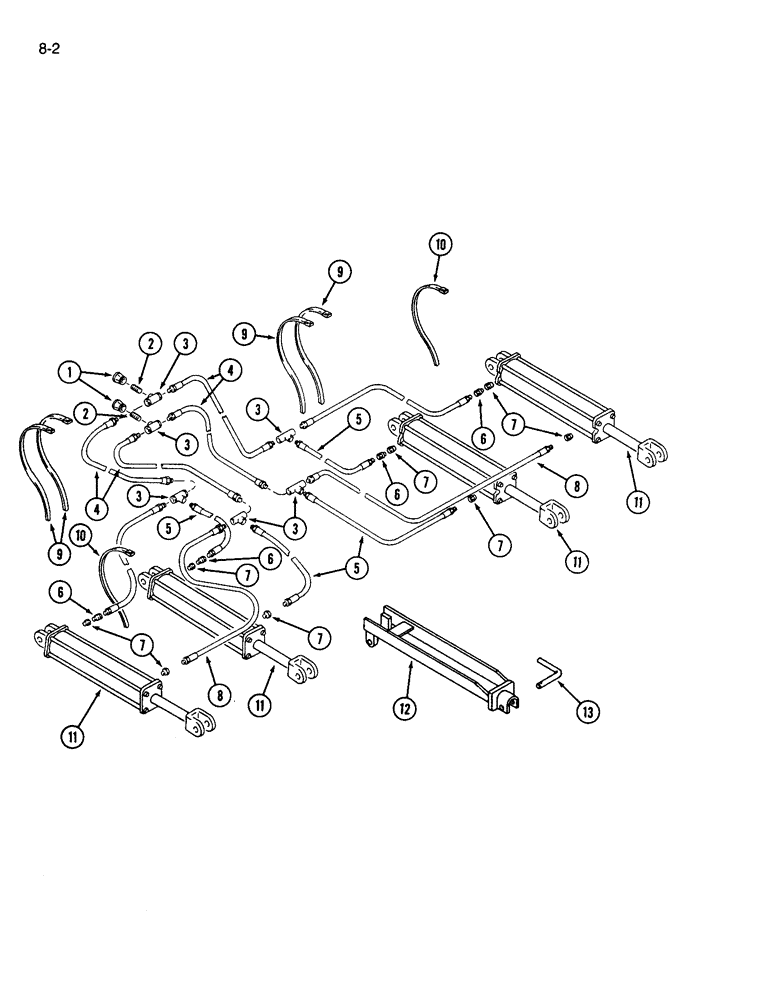

Запчасти Case IH 365 (8-02) - HYDRAULIC CIRCUIT, DEPTH CONTROL, FOLDING FRAME, MACHINES BUILT PRIOR TO P.I.N. 10371 (08) - HYDRAULICS

1

444114

COUPLING,1/2"-14 NPTF x 3/8"-18 NPTF

- plain auto pipe, 1/2 to 3/8 inch

2шт.

2

221-161

PIPE,Nipple, 3/8" NPT x 1 1/2"

FITTING - plain long pipe, 3/8 x 1-1/2 inch

2шт.

3

444122

TEE,3/8"-18 NPTF Fem

- plain auto pipe, 3/8 inch

6шт.

4

1256450C1

HYDRAULIC HOSE

HOSE - hydraulic, 60 inch

4шт.

5

1256449C1

HYDRAULIC HOSE

HOSE - hydraulic, 24 inch

4шт.

6

1256448C1

ADAPTER

RESTRICTOR - two way swivel

4шт.

7

444016

REDUCER

ADAPTER - plain auto pipe, 1/2 to 3/8 inch

8шт.

8

1256450C1

HYDRAULIC HOSE

HOSE - hydraulic, 60 inch (Cultivators coded D and E)

4шт.

8

1256447C1

HYDRAULIC HOSE

HOSE - hydraulic, 72 inch (Cultivators coded F and G)

4шт.

8

1256451C1

HYDRAULIC HOSE

HOSE - hydraulic, 90 inch (Cultivators coded H and I)

4шт.

8

1256700C1

HOSE - hydraulic, 54 inch (Used on wing lift cylinders)

2шт.

9

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - hose tie

4шт.

10

306132C1

CABLE TIE,14.5" L

STRAP - hose tie 14 in

2шт.

11

145210C92

CYLINDER

ASSEMBLY - hydraulic, 3 x 8 inch (See Page 8-15)

4шт.

11

1272146C91

CYLINDER

ASSEMBLY - hydraulic, 3 x 8 inch (See Page 8-17)

4шт.

603883C91

ROD, CONNECTING

ADAPTER - 3/4 x 1/2 inch O-ring boss

8шт.

12

1256641C1

STOP

- depth control cylinder

4шт.

13

1256642C1

ROD

PIN - cylinder stop

4шт.
