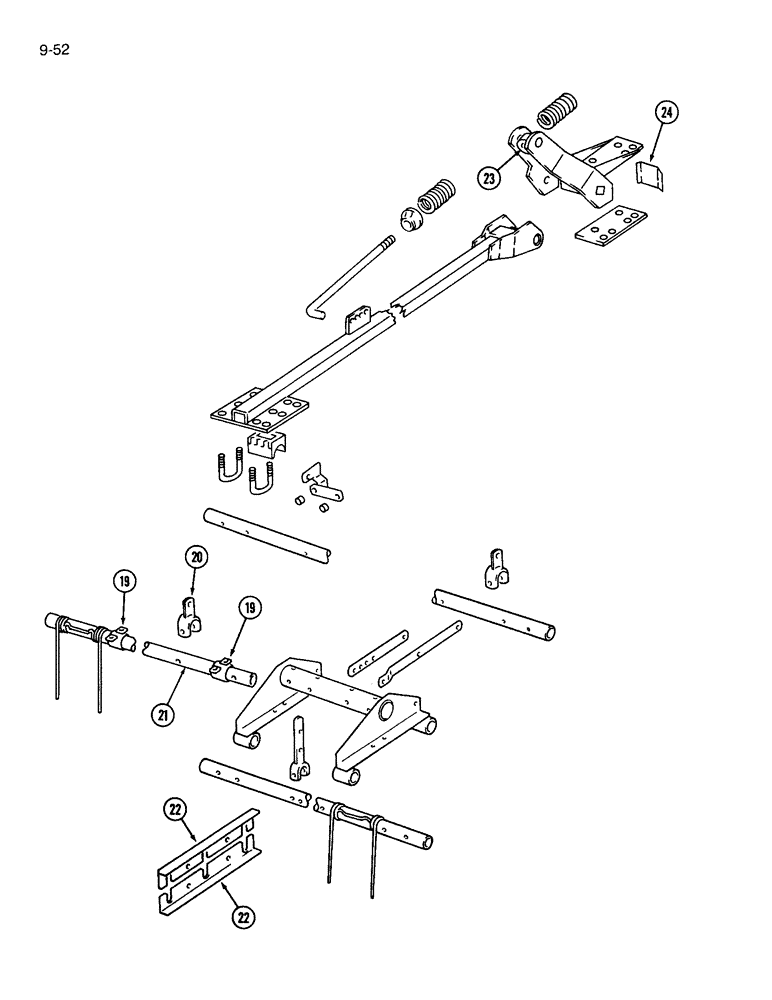

Запчасти Case IH 365 (9-52) - MULCHER ATTACHMENT, THREE BAR, MACHINES BUILT PRIOR TO P.I.N. 10371 (09) - CHASSIS/ATTACHMENTS

19

485063R1

BUSHING - center bar (Cultivators coded A)

4шт.

19

485063R1

BUSHING - center bar (Cultivators coded B and C)

6шт.

19

485063R1

BUSHING - center bar (Cultivators coded D through I)

8шт.

424-616

BOLT,Hex, 3/8" - 16 x 1", Gr 2

- hex, 3/8 NC x 1 inch (Quantity of 2 per bushing)

1шт.

492-11038

LOCK WASHER,3/8"

(Quantity of 2 per bushing) 3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

(Quantity of 2 per bushing) 3/8"-16, G5

1шт.

20

485601R1

ARM

POST - center (Cultivators coded A)

4шт.

20

485601R1

ARM

POST - center (Cultivators coded B, C, D and E)

6шт.

20

485601R1

ARM

POST - center (Cultivators coded F, G, H and I)

8шт.

180159

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

- hex, 7/16 x 2-3/4 inch (Quantity of 1 per post)

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT - hex lock, 7/16 inch (Quantity of 1 per post)

1шт.

Q3542

HEADED PIN,11.1mm OD x 38.1mm L

PIN - plain head, 7/16 x 1-1/2 inch (Quantity of 1 per post)

1шт.

432-1016

COTTER PIN,5/32" x 1"

(Quantity of 1 per post) 5/32" x 1"

1шт.

21

485604R1

TUBE

BAR - second tooth (Cultivators coded B and C)

2шт.

21

490552R1

TUBE

BAR - second tooth (Cultivators coded A, H and I)

2шт.

21

490552R1

TUBE

BAR - second tooth (Cultivators coded B, C, D and E)

1шт.

21

485602R1

TUBE

BAR - second tooth (Cultivators coded D and E)

1шт.

21

485605R1

TUBE

BAR - second tooth (Cultivators coded D and E)

1шт.

21

485605R1

TUBE

BAR - second tooth (Cultivators coded F and G)

4шт.

21

485605R1

TUBE

BAR - second tooth (Cultivators coded H and I)

2шт.

22

485598R1

SUPPORT

RAIL - center (Cultivators coded A, D and E)

4шт.

22

485598R1

SUPPORT

RAIL - center (Cultivators coded B and C)

6шт.

22

485598R1

SUPPORT

RAIL - center (Cultivators coded F, G, H and I)

8шт.

424-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 2

- hex, 5/16 NC x 3/4 inch (Quantity of 1 per rail)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Quantity of 1 per rail) 5/16"

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Qty of 1 per rail)

1шт.

23

1256635C1

TRUNNION

- rod (Cultivators coded A)

2шт.

23

1256635C1

TRUNNION

- rod (Cultivators coded B and C)

3шт.

23

1256635C1

TRUNNION

- rod (Cultivators coded D through I)

4шт.

24

1256634C1

SPACER

- (Cultivators coded A)

2шт.

24

1256634C1

SPACER

- (Cultivators coded B and C)

3шт.

24

1256634C1

SPACER

- (Cultivators D through I)

4шт.
