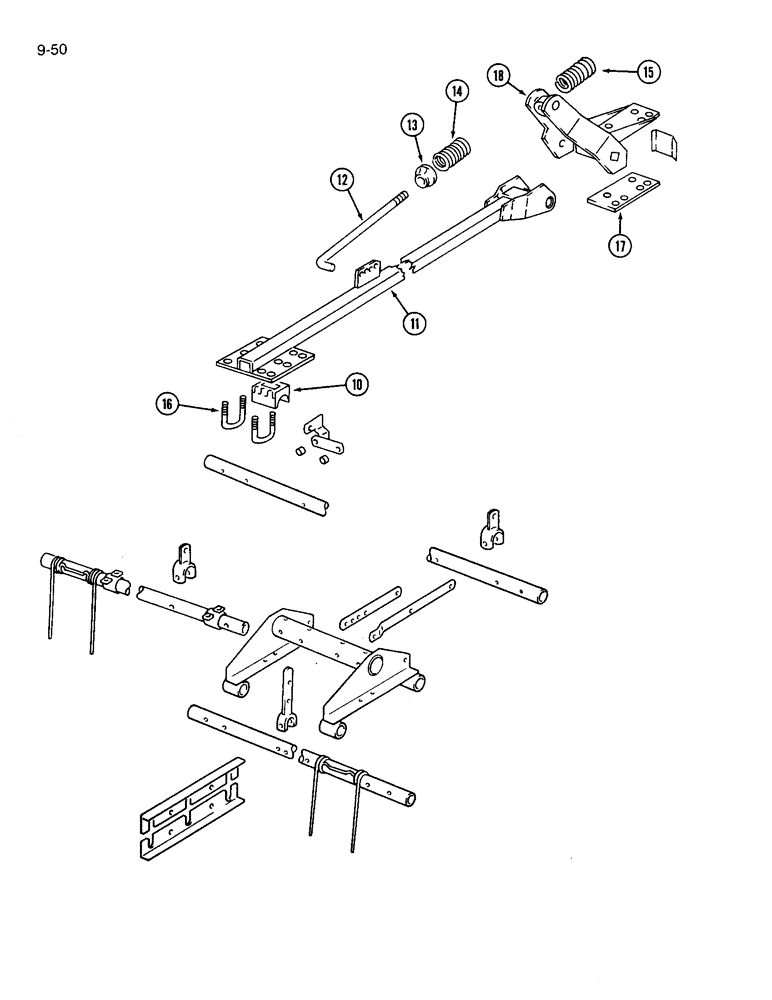

Запчасти Case IH 365 (9-50) - MULCHER ATTACHMENT, THREE BAR, MACHINES BUILT PRIOR TO P.I.N. 10371 (09) - CHASSIS/ATTACHMENTS

10

490687R1

CLAMP

- casting (Cultivators coded A)

4шт.

10

490687R1

CLAMP

- casting (Cultivators coded B and C)

6шт.

10

490687R1

CLAMP

- casting (Cultivators coded D through I)

8шт.

11

812223C1

ARM

- carrier (Cultivators coded A)

2шт.

11

812223C1

ARM

- carrier (Cultivators coded B and C)

3шт.

11

812223C1

ARM

- carrier (Cultivators coded D through I)

4шт.

18741R1

BOLT

- round head square neck, 3/4 NC x 6 inch (Quantity of 1 per arm)

1шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC (Quantity of 1 per arm)

1шт.

12

596580R1

ROD

- compression (Cultivators coded A)

2шт.

12

596580R1

ROD

- compression (Cultivators coded B and C)

3шт.

12

596580R1

ROD

- compression (Cultivators coded D through I)

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2" (Quantity of 1 per rod)

1шт.

495-81041

WASHER,25/32" x 1 1/2" x .060"

- flat, 25/32 x 1-1/2 x 1/16 inch (Quantity of 1 per rod)

1шт.

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NC (Quantity of 1 per rod)

1шт.

13

1431BX

COLLAR CLAMP

COLLAR - with set screw (Cultivators coded A)

2шт.

13

1431BX

COLLAR CLAMP

COLLAR - with set screw (Cultivators coded B and C)

3шт.

13

1431BX

COLLAR CLAMP

COLLAR - with set screw (Cultivators coded D through I)

4шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 x 3/4 inch

1шт.

14

596574R1

SPRING

- compression, bottom (Cultivators coded A)

2шт.

14

596574R1

SPRING

- compression, bottom (Cultivators coded B and C)

3шт.

14

596574R1

SPRING

- compression, bottom (Cultivators coded D through I)

4шт.

15

485611R1

SPRING

- compression, top (Cultivators coded A)

2шт.

15

485611R1

SPRING

- compression, top (Cultivators coded B and C)

3шт.

15

485611R1

SPRING

- compression, top (Cultivators coded D through I)

4шт.

16

490688R1

BOLT,1/2" - 13 x 4 1/2"

U-BOLT - 1/2 inch (Cultivators coded A)

8шт.

16

490688R1

BOLT,1/2" - 13 x 4 1/2"

U-BOLT - 1/2 inch (Cultivators coded B and C)

12шт.

16

490688R1

BOLT,1/2" - 13 x 4 1/2"

U-BOLT - 1/2 inch (Cultivators coded D through I)

16шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Quantity of 2 per U-bolt) 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Qty of 2 per U-bolt) 1/2"-13, G5

1шт.

17

812225C1

BAR

CLAMP - mounting (Cultivators coded A)

2шт.

17

812225C1

BAR

CLAMP - mounting (Cultivators coded B and C)

3шт.

17

812225C1

BAR

CLAMP - mounting (Cultivators coded D through I)

4шт.

461723R1

BOLT,5/8" - 11 x 6", Grade 5

- hex, special, 5/8 x 6 inch (Quantity of 4 per clamp)

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Quantity of 4 per clamp) 5/8"

1шт.

425-1010

NUT,5/8"-11, G5

(Qty of 4 per clamp) 5/8"-11, G5

1шт.

18

812224C1

BRACKET

- attaching (Cultivator coded A)

2шт.

18

812224C1

BRACKET

- attaching (Cultivators coded B and C)

3шт.

18

812224C1

BRACKET

- attaching (Cultivators coded D through I)

4шт.
