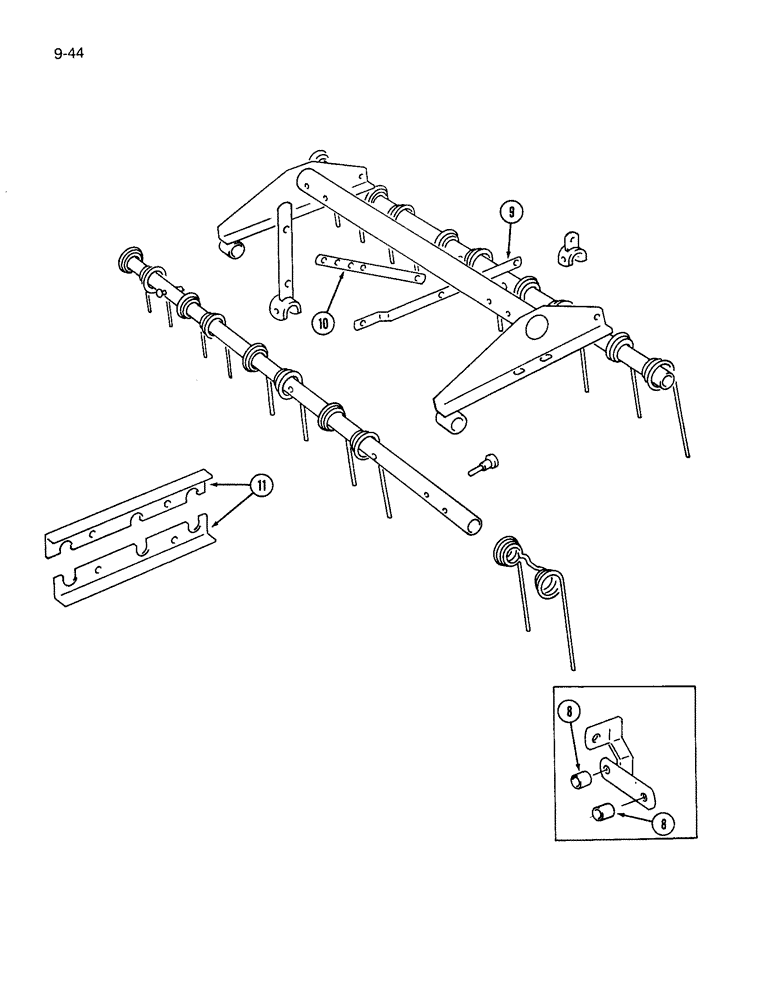

Запчасти Case IH 365 (9-44) - MULCHER, TWO BAR COIL TINE, HEAVY DUTY, FRAME AND TOOTH BAR, MACHINES BUILT PRIOR TO P.I.N. 10371 (09) - CHASSIS/ATTACHMENTS

8

485591R1

SPACER

BUSHING - tooth (Cultivators coded D and E)

4шт.

9

485593R1

SUPPORT

REACH - handle (Cultivators coded A, H and I)

2шт.

9

485593R1

SUPPORT

REACH - handle (Cultivators coded B and C)

3шт.

9

485593R1

SUPPORT

REACH - handle (Cultivators coded D, E, F and G)

4шт.

10

485594R1

BAR

REACH - adjusting (Cultivators coded A, H and I)

2шт.

10

485594R1

BAR

REACH - adjusting (Cultivators coded B and C)

3шт.

10

485594R1

BAR

REACH - adjusting (Cultivators coded D, E, F, and G)

4шт.

21658R1

HEADED PIN,7/16" x 1"

PIN - headed, 7/16 x 1 inch (Cultivators coded A, H and I)

8шт.

21658R1

HEADED PIN,7/16" x 1"

PIN - headed, 7/16 x 1 inch (Cultivators coded B and C)

12шт.

21658R1

HEADED PIN,7/16" x 1"

PIN - headed, 7/16 x 1 inch (Cultivators coded D, E, F and G)

16шт.

495-81158

WASHER,0.47" ID x 1" OD x 0.06" Thk

- flat, 15/32 x 1 x 3/64 inch (Quantity of 1 per pin)

1шт.

432-1016

COTTER PIN,5/32" x 1"

(Quantity of 1 per pin) 5/32" x 1"

1шт.

480523R1

HAIR PIN COTTER

9/64" dia

1шт.

11

485598R1

SUPPORT

RAIL - center (Cultivators coded A, D and E)

4шт.

11

485598R1

SUPPORT

RAIL - center (Cultivators coded B and C)

6шт.

11

485598R1

SUPPORT

RAIL - center (Cultivators coded F, G, H and I)

8шт.

424-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 2

- hex, 5/16 NC x 3/4 inch (Quantity of 1 per rail)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Quantity of 1 per rail) 5/16"

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Qty of 1 per rail)

1шт.
