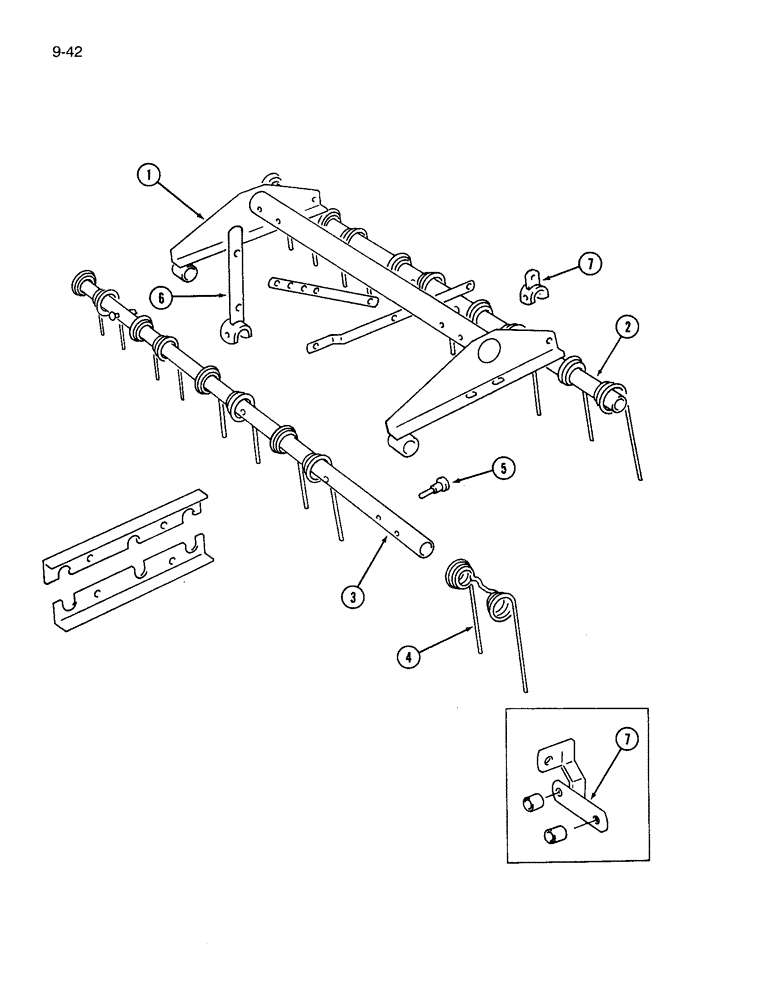

Запчасти Case IH 365 (9-42) - MULCHER, TWO BAR COIL TINE, HEAVY DUTY, FRAME AND TOOTH BAR, MACHINES BUILT PRIOR TO P.I.N. 10371 (09) - CHASSIS/ATTACHMENTS

1

490549R1

FRAME

- tooth bar (Cultivators coded A, H and I)

2шт.

1

490549R1

FRAME

- tooth bar (Cultivators coded B, C, D and E)

1шт.

2

490550R1

TUBE

BAR - front tooth (Cultivators coded A, H and I)

2шт.

2

490550R1

TUBE

BAR - front tooth (Cultivators coded B, C, D and E)

1шт.

2

485596R1

TUBE

BAR - front tooth (Cultivators coded B and C)

2шт.

2

485599R1

TUBE

BAR - front tooth (Cultivators coded D and E)

1шт.

2

485599R1

TUBE

BAR - front tooth (Cultivators coded F and G)

4шт.

2

485599R1

TUBE

BAR - front tooth (Cultivators coded H and I)

2шт.

3

490551R1

TUBE

BAR - rear tooth (Cultivators coded A, H and I)

2шт.

3

490551R1

TUBE

BAR - rear tooth (Cultivators coded B, C, D and E)

1шт.

3

485597R1

TUBE

BAR - rear tooth (Cultivators coded B and C)

2шт.

3

485590R1

TUBE

BAR - rear tooth (Cultivators coded D and E)

2шт.

3

485600R1

TUBE

BAR - rear tooth (Cultivators coded D and E)

1шт.

3

485600R1

TUBE

BAR - rear tooth (Cultivators coded F and G)

4шт.

3

485600R1

TUBE

BAR - rear tooth (Cultivators coded H and I)

2шт.

432-1644

COTTER PIN,1/4" x 2 3/4"

Pin, Split (Cotter), (Cultivators coded A) 1/4" x 2 3/4"

8шт.

432-1644

COTTER PIN,1/4" x 2 3/4"

Pin, Split (Cotter), (Cultivators coded B and C) 1/4" x 2 3/4"

12шт.

432-1644

COTTER PIN,1/4" x 2 3/4"

Pin, Split (Cotter), (Cultivators coded D through I) 1/4" x 2 3/4"

16шт.

4

72901C1

TOOTH

- spring (Cultivators coded A)

24шт.

4

72901C1

TOOTH

- spring (Cultivators coded B and C)

28шт.

4

72901C1

TOOTH

- spring (Cultivators coded D and E)

34шт.

4

72901C1

TOOTH

- spring (Cultivators coded F and G)

40шт.

4

72901C1

TOOTH

- spring (Cultivators coded H and I)

44шт.

5

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Quantity of 2 per tooth)

1шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC (Quantity of 2 per tooth)

1шт.

6

485592R1

ARM

HANDLE - tooth bar (Cultivators coded A, H and I)

2шт.

6

485592R1

ARM

HANDLE - tooth bar (Cultivators coded B and C)

3шт.

6

485592R1

ARM

HANDLE - tooth bar (Cultivators coded D, E, F and G)

4шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

- hex, 7/16 x 2-3/4 inch (Quantity of 1 per handle)

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT - hex lock, 7/16 inch (Quantity of 1 per handle)

1шт.

7

485601R1

ARM

POST - center (Cultivators coded A)

2шт.

7

485601R1

ARM

POST - center (Cultivators coded B and C)

3шт.

7

485601R1

ARM

POST - center (Cultivators coded D and E)

2шт.

7

485601R1

ARM

POST - center (Cultivators coded F, G, H and I)

4шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

- hex, 7/16 x 2-3/4 inch (Quantity of 1 per post)

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT - hex lock, 7/16 inch (Quantity of 1 per post)

1шт.

7

485595R1

SUPPORT

POST - front (Cultivators coded D and E)

2шт.

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.
