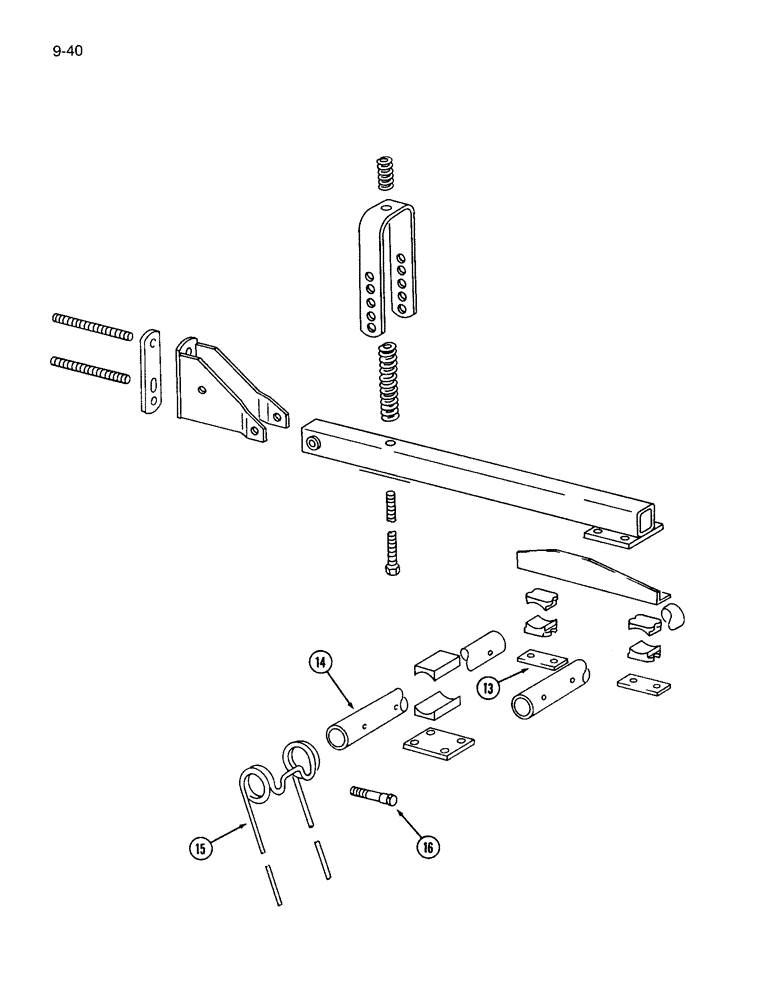

Запчасти Case IH 365 (9-40) - MULCHER, TWO BAR COIL TINE (09) - CHASSIS/ATTACHMENTS

13

63223C1

PLATE

- clamp (Cultivators coded A)

9шт.

13

63223C1

PLATE

- clamp (Cultivators coded B through I)

18шт.

14

63262C1

TUBE

TOOTH BAR - 14 feet 6 inch (Cultivators coded A)

2шт.

14

63430C1

TOOTH

BAR - 3 feet 6 inch (Cultivators coded B and C)

4шт.

14

63260C1

TUBE

TOOTH BAR - 11 feet 6 inch (Cultivators coded B through I)

2шт.

14

63229C1

TUBE

TOOTH BAR - 4 feet 6 inch (Cultivators coded D and E)

4шт.

14

63230C1

TUBE

TOOTH BAR - 5 feet 6 inch (Cultivators coded F and G)

4шт.

14

63232C1

TUBE

TOOTH BAR - 7 feet 6 inch (Cultivators coded H and I)

4шт.

15

63235C2

TOOTH

- 6 inch spacing (Cultivators coded A)

30шт.

15

63235C2

TOOTH

- 6 inch spacing (Cultivators coded B and C)

40шт.

15

63235C2

TOOTH

- 6 inch spacing (Cultivators coded D and E)

44шт.

15

63235C2

TOOTH

- 6 inch spacing (Cultivators coded F and G)

48шт.

15

63235C2

TOOTH

- 6 inch spacing (Cultivators coded H and I)

56шт.

16

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Quantity of 1 per tooth)

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC (Quantity of 1 per tooth)

1шт.
