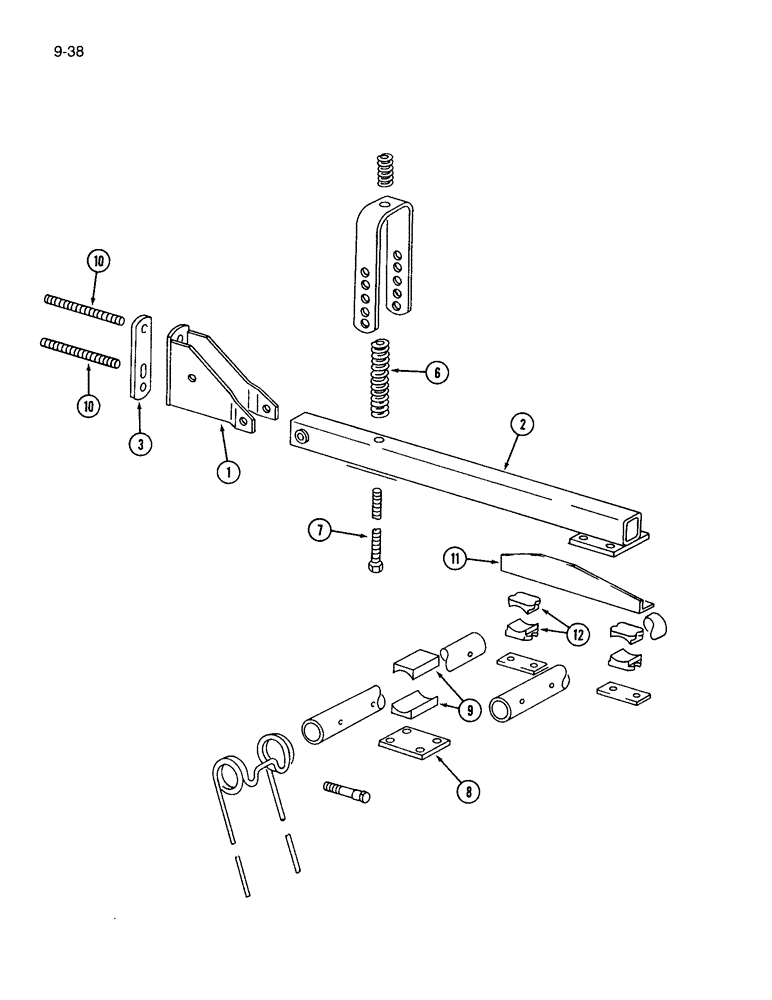

Запчасти Case IH 365 (9-38) - MULCHER, TWO BAR COIL TINE (09) - CHASSIS/ATTACHMENTS

1

63238C1

BRACKET

- mounting (Cultivators coded A)

3шт.

1

63238C1

BRACKET

- mounting (Cultivators coded B through I)

6шт.

424-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 2

- hex, 1/2 NC x 1-1/4 inch (Quantity of 2 per bracket)

1шт.

424-848

BOLT,Hex, 1/2" - 13 x 3", Gr 2

- hex, 1/2 NC x 3 inch (Quantity of 1 per bracket)

1шт.

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC (Quantity of 1 per bolt)

1шт.

2

63239C1

ARM

ASSEMBLY - carrier (Cultivators coded A)

3шт.

2

63239C1

ARM

ASSEMBLY - carrier (Cultivators coded B through I)

6шт.

3

63252C1

BAR

CLAMP - flat (Cultivators coded A)

3шт.

3

63252C1

BAR

CLAMP - flat (Cultivators coded B through I)

6шт.

4

63253C1

ANCHOR

- spring (Cultivators coded A)

3шт.

4

63253C1

ANCHOR

- spring (Cultivators coded B through I)

6шт.

5

63254C1

SPRING

- compression (Cultivators coded A)

3шт.

5

63254C1

SPRING

- compression (Cultivators coded B through I)

6шт.

6

63255C1

SPRING

- compression (Cultivators coded A)

3шт.

6

63255C1

SPRING

- compression (Cultivators coded B through I)

6шт.

7

63256C1

BOLT

ROD - compression (Cultivators coded A)

3шт.

7

63256C1

BOLT

ROD - compression (Cultivators coded B through I)

6шт.

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC (Quantity of 2 per rod)

1шт.

8

63257C1

BAR

PLATE - clamp (Cultivators coded A)

3шт.

8

63257C1

BAR

PLATE - clamp (Cultivators coded B through I)

6шт.

9

547853R1

CLAMP

- casting (Cultivators coded A)

6шт.

9

547853R1

CLAMP

- casting (Cultivators coded B through I)

12шт.

424-764

BOLT,Hex, 7/16" - 14 x 4", Gr 2

- hex, 7/16 NC x 4 inch (Quantity of 4 per arm)

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Quantity of 1 per bolt) 7/16"

1шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC (Quantity of 1 per bolt)

1шт.

10

63258C1

STUD

- bracket (Cultivators coded A)

6шт.

10

63258C1

STUD

- bracket (Cultivators coded B through I)

12шт.

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") (Quantity of 2 per stud) 1/2", SAE

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Quantity of 2 per stud) 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Qty of 2 per stud) 1/2"-13, G5

1шт.

11

63228C1

SUPPORT

FRAME - connecting (Cultivators coded A)

4шт.

11

63228C1

SUPPORT

FRAME - connecting (Cultivators coded B through I)

7шт.

12

63222C1

CLAMP

- casting (Cultivators coded A)

16шт.

12

63222C1

CLAMP

- casting (Cultivators coded B through I)

28шт.

424-764

BOLT,Hex, 7/16" - 14 x 4", Gr 2

- hex, 7/16 NC x 4 inch (Quantity of 4 per frame)

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Quantity of 1 per bolt) 7/16"

1шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC (Quantity of 1 per bolt)

1шт.
