(9-36) - ROTARY MULCHER, DOUBLE UNITS

Запчасти Case IH 365 (9-36) - ROTARY MULCHER, DOUBLE UNITS (09) - CHASSIS/ATTACHMENTS

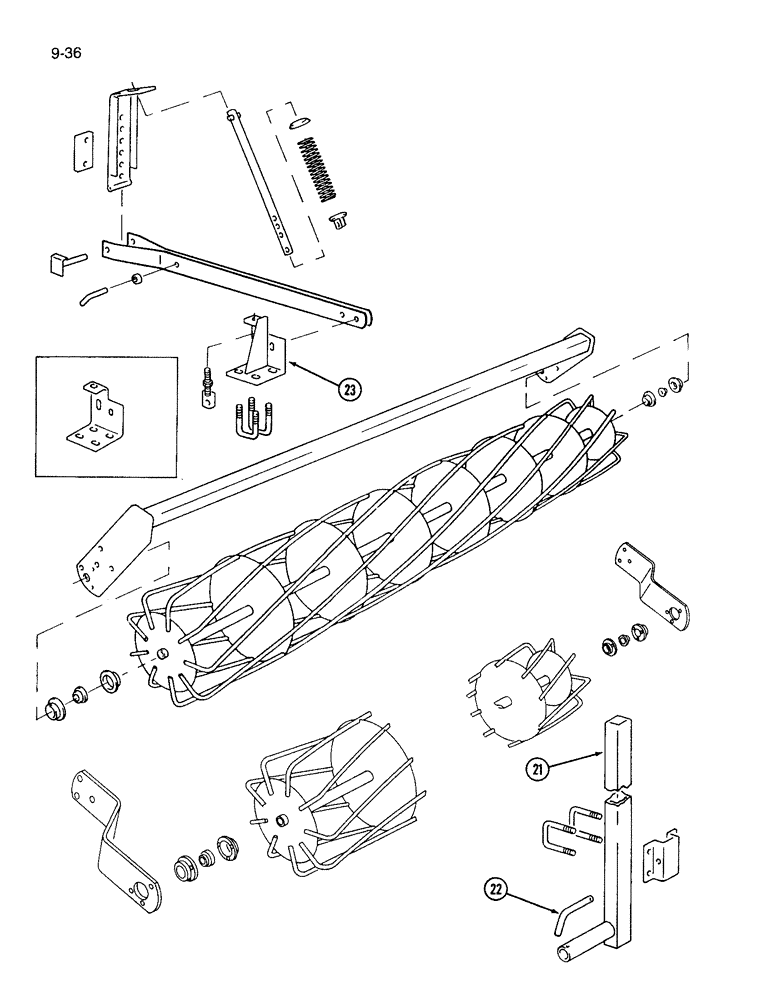

Схема запчастей Case IH 365 - (9-36) - ROTARY MULCHER, DOUBLE UNITS (09) - CHASSIS/ATTACHMENTS
23
22
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

21

1265766C1

STAND

ASSEMBLY - jack

1шт.

22

1265768C1

PIN

- jackstand

1шт.

480523R1

HAIR PIN COTTER

9/64" dia

1шт.

23

1265737C1

PIVOT

- adjusting (Replaces 1256473C1) (Cultivators coded A, P.I.N 10371 and After)

6шт.

23

1265737C1

PIVOT

- adjusting (Replaces 1256473C1) (Cultivators coded B and C, P.I.N. 10371 and After)

8шт.

23

1265737C1

PIVOT

- adjusting (Replaces 1256473C1) (Cultivators coded D through I, P.I.N. 10371 and After)

10шт.
