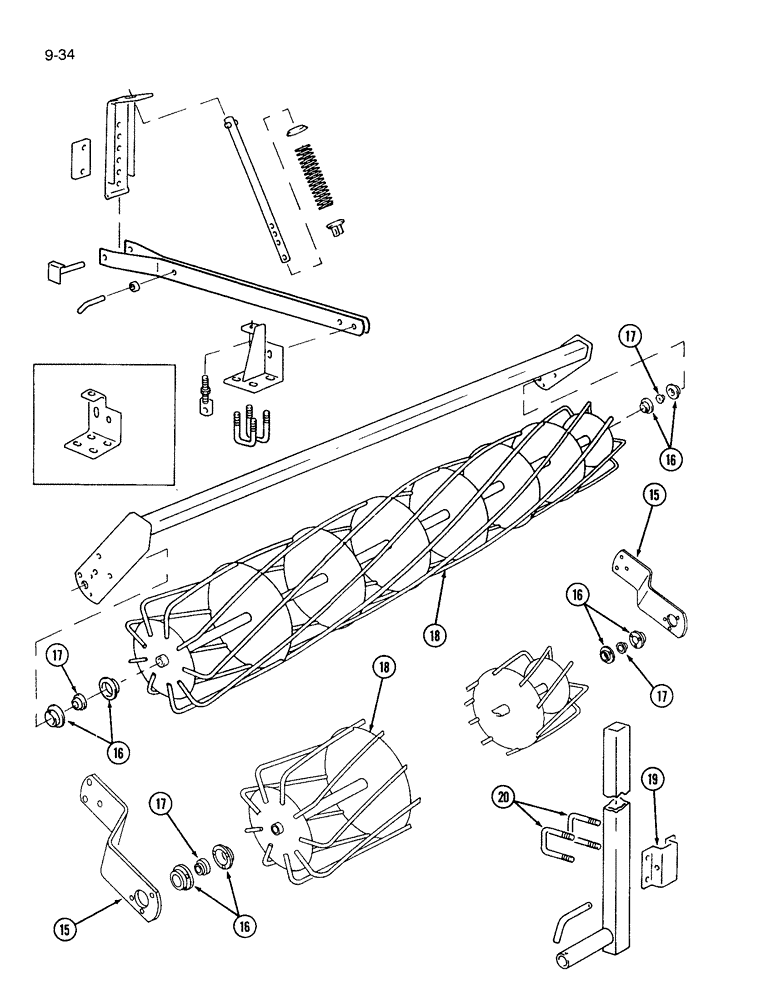

Запчасти Case IH 365 (9-34) - ROTARY MULCHER, DOUBLE UNITS (09) - CHASSIS/ATTACHMENTS

15

1256485C1

BRACKET

- offset (Cultivators coded A)

4шт.

15

1256485C1

BRACKET

- offset (Cultivators coded B and C)

6шт.

15

1256485C1

BRACKET

- offset (Cultivators coded D through I)

8шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT - hex, 7/16 NC x 1-1/4 inch (Quantity of 3 per bracket)

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Quantity of 1 per bolt) 7/16"

1шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC (Quantity of 1 per bolt)

1шт.

16

455961R1

BEARING HOUSING,3.5625" OD x 0.3125"

FLANGE - bearing (Cultivators coded A)

16шт.

16

455961R1

BEARING HOUSING,3.5625" OD x 0.3125"

FLANGE - bearing (Cultivators coded B and C)

24шт.

16

455961R1

BEARING HOUSING,3.5625" OD x 0.3125"

FLANGE - bearing (Cultivators coded D through I)

32шт.

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - round head square neck, 5/16 NC x 1 inch (Quantity of 6 per basket)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Quantity of 1 per bolt) 5/16"

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Qty of 1 per bolt)

1шт.

17

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

- ball (Cultivators coded A)

8шт.

17

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

- ball (Cultivators coded B and C)

12шт.

17

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

- ball (Cultivators coded D through I)

16шт.

18

1256478C1

CONTROL

BASKET - 48 inch (Cultivators coded A)

2шт.

18

1256478C1

CONTROL

BASKET - 48 inch (Cultivators coded B, C, D and E)

3шт.

18

1256478C1

CONTROL

BASKET - 48 inch (Cultivators coded F and G)

4шт.

18

1256478C1

CONTROL

BASKET - 48 inch (Cultivators coded H and I)

1шт.

18

1256480C1

CONTROL

BASKET - 60 inch (Cultivators coded A, F and G)

1шт.

18

1256480C1

CONTROL

BASKET - 60 inch (Cultivators coded H and I)

4шт.

18

1256482C1

CONTROL

BASKET - 72 inch (Cultivators coded B, C, F and G) (Prior to P.I.N. 10371)

4шт.

18

1256482C1

CONTROL

BASKET - 72 inch (Cultivators coded D and E) (Prior to P.I.N. 10371)

2шт.

18

1256482C1

CONTROL

BASKET - 72 inch (Cultivators coded H and I) (Prior to P.I.N. 10371)

6шт.

18

1256484C1

CONTROL

BASKET - 84 inch (Cultivators coded A) (Prior to P.I.N. 10371)

4шт.

18

1256484C1

CONTROL

BASKET - 84 inch (Cultivators coded H and I) (Prior to P.I.N. 10371)

2шт.

18

1265740C1

CONTAINER

BASKET - 36 inch (Cultivators coded B and C)

2шт.

18

1265740C1

CONTAINER

BASKET - 36 inch (Cultivators coded D and E)

4шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch (Quantity of 2 per basket)

1шт.

492-11075

LOCK WASHER,3/4"

(Quantity of 2 per basket) 3/4"

1шт.

19

1265765C1

HOUSING

- stand

1шт.

20

1265767C1

U-BOLT,1/2" - 13 x 2.56" W x 3.6" L

- stand housing

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.
