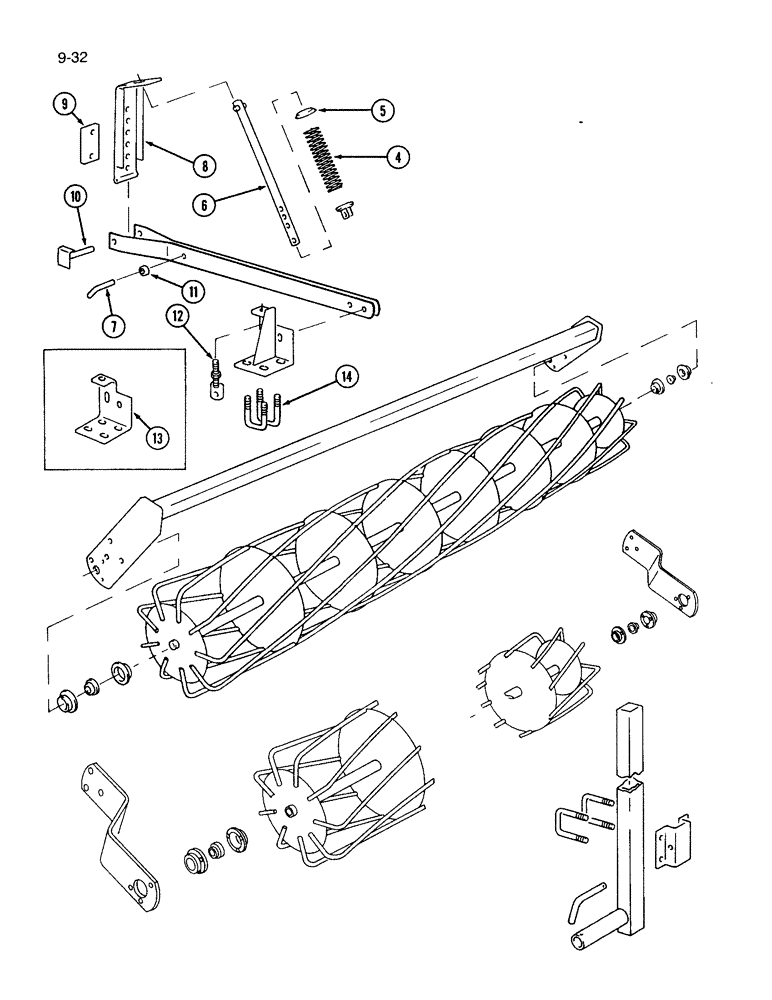

Запчасти Case IH 365 (9-32) - ROTARY MULCHER, DOUBLE UNITS (09) - CHASSIS/ATTACHMENTS

4

1256472C1

SPRING

- carrier (Cultivators coded A)

6шт.

4

1256472C1

SPRING

- carrier (Cultivators coded B and C)

10шт.

4

1256472C1

SPRING

- carrier (Cultivators coded D through I)

10шт.

5

80057C1

CAP

- spring, upper (Cultivators coded A)

6шт.

5

80057C1

CAP

- spring, upper (Cultivators coded B and C)

8шт.

5

80057C1

CAP

- spring, upper (Cultivators coded D through I)

10шт.

6

1256468C1

GUIDE

- spring (Cultivators coded A)

6шт.

6

1256468C1

GUIDE

- spring (Cultivators coded B and C)

8шт.

6

1256468C1

GUIDE

- spring (Cultivators coded D through I)

10шт.

7

80056C1

PIN

- spring guide (Cultivators coded A)

6шт.

7

80056C1

PIN

- spring guide (Cultivators coded B and C)

8шт.

7

80056C1

PIN

- spring guide (Cultivators coded D through I)

10шт.

545245R1

NO LONGER SERVICED

PIN - quick attachable, cotter (Quantity of 2 per pin)

1шт.

8

1256466C1

ARM

- mounting (Cultivators coded A)

6шт.

8

1256466C1

ARM

- mounting (Cultivators coded B and C)

8шт.

8

1256466C1

ARM

- mounting (Cultivators coded D through I)

10шт.

9

1256476C1

BAR

- flat (Cultivators coded A)

6шт.

9

1256476C1

BAR

- flat (Cultivators coded B and C)

8шт.

9

1256476C1

BAR

- flat (Cultivators coded D through I)

10шт.

13-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

- hex, 5/8 NC x 4-1/2 inch (Quantity of 2 per bar)

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Quantity of 2 per bar) 5/8"

1шт.

425-1010

NUT,5/8"-11, G5

(Qty of 2 per bolt) 5/8"-11, G5

1шт.

10

1256470C1

PIN

- welded (Quantity of 1 per carrier arm)

1шт.

10

1265738C1

PIN

- headed, 5/8 x 1-7/8 inch (Quantity of 1 per carrier arm)

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), (Quantity of 1 per pin) 1/4" x 2"

1шт.

11

1256474C1

BUSHING

- (Prior to P.I.N. 10371)(Quantity of 1 per pin)

1шт.

12

1265736C1

ADJUSTMENT SCREW

- adjusting (Cultivators coded A)

6шт.

12

1265736C1

ADJUSTMENT SCREW

- adjusting (Cultivators coded B and C)

8шт.

12

1265736C1

ADJUSTMENT SCREW

- adjusting (Cultivators coded D through I)

10шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Qty of 1 per adjusting screw) 1/2"-13, G5

1шт.

13

1256473C1

PIVOT

- adjusting (Replaced by 1265737C1) (Cultivators coded A)

6шт.

13

1256473C1

PIVOT

- adjusting (Replaced by 1265737C1) (Cultivators coded B and C)

8шт.

13

1256473C1

PIVOT

- adjusting (Replaced by 1265737C1) (Cultivators coded D through I)

10шт.

14

1256475C2

U-BOLT,7/16" - 14 x 2.03" W x 3" L

- adjusting pivot (Quantity of 2 per pivot)

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Quantity of 2 per U-bolt) 7/16"

1шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC (Quantity of 2 per U-bolt)

1шт.
