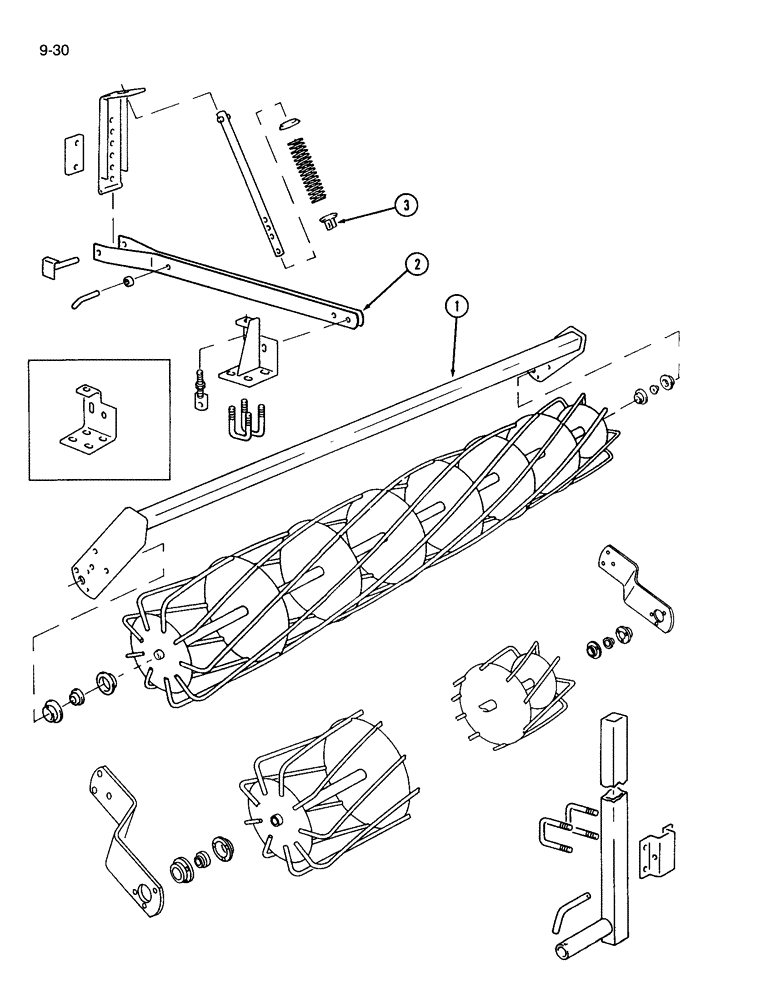

Запчасти Case IH 365 (9-30) - ROTARY MULCHER, DOUBLE UNITS (09) - CHASSIS/ATTACHMENTS

1

1256477C1

CARRIER

- basket, 48 inch (Cultivators coded A)

2шт.

1

1256477C1

CARRIER

- basket, 48 inch (Cultivators coded B, C, D and E)

3шт.

1

1256477C1

CARRIER

- basket, 48 inch (Cultivators coded F and G)

4шт.

1

1256477C1

CARRIER

- basket, 48 inch (Cultivators coded H and I)

1шт.

1

1265739C1

CARRIER

- basket, 36 inch (Cultivators coded B and C)

1шт.

1

1265739C1

CARRIER

- basket, 36 inch (Cultivators coded D and E)

2шт.

1

1256479C1

CARRIER

- basket, 60 inch (Cultivators coded A, F and G)

1шт.

1

1256479C1

CARRIER

- basket, 60 inch (Cultivators coded H and I)

4шт.

1

1256481C1

CARRIER

- basket, 72 inch (Cultivators coded B, C, F and G) (Prior to P.I.N. 10371)

2шт.

1

1256481C1

CARRIER

- basket, 72 inch (Cultivators coded D and E) (Prior to P.I.N. 10371)

1шт.

1

1256481C1

CARRIER

- basket, 72 inch (Cultivators coded H and I) (Prior to P.I.N. 10371)

3шт.

1

1256483C1

CARRIER

- basket, 84 inch (Cultivators coded A) (Prior to P.I.N. 10371)

2шт.

1

1256483C1

CARRIER

- basket, 84 inch (Cultivators coded H and I) (Prior to P.I.N. 10371)

1шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch (Quantity of 2 per carrier)

1шт.

492-11075

LOCK WASHER,3/4"

(Quantity of 2 per carrier) 3/4"

1шт.

2

1256467C1

ARM

- carrier (Cultivators coded A) (Prior to P.I.N. 10371)

6шт.

2

1256467C1

ARM

- carrier (Cultivators coded B and C) (Prior to P.I.N. 10371)

8шт.

2

1256467C1

ARM

- carrier (Cultivators coded D through I) (Prior to P.I.N. 10371)

10шт.

2

1265735C1

ARM

- carrier (Cultivators coded A) (P.I.N. 10371 and After)

6шт.

2

1265735C1

ARM

- carrier (Cultivators coded B and C) (P.I.N. 10371 and After)

8шт.

2

1265735C1

ARM

- carrier (Cultivators coded D through I) (P.I.N. 10371 and After)

10шт.

2

1265796C1

ARM

- carrier (Cultivators coded A) (Machines built 1987 and After)

6шт.

2

1265796C1

ARM

- carrier (Cultivators coded B and C) (Machines built 1987 and After)

8шт.

2

1265796C1

ARM

- carrier (Cultivators coded D through I) (Machines built 1987 and After)

10шт.

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(Quantity of 3 per arm) Hex, 1/2"-13 x 2", G5

1шт.

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, (Qty of 3 per arm) 1/2"-13, GC

1шт.

3

1256471C2

CAP

- spring (Cultivators coded A)

6шт.

3

1256471C2

CAP

- spring (Cultivators coded B and C)

8шт.

3

1256471C2

CAP

- spring (Cultivators coded D through I)

10шт.
