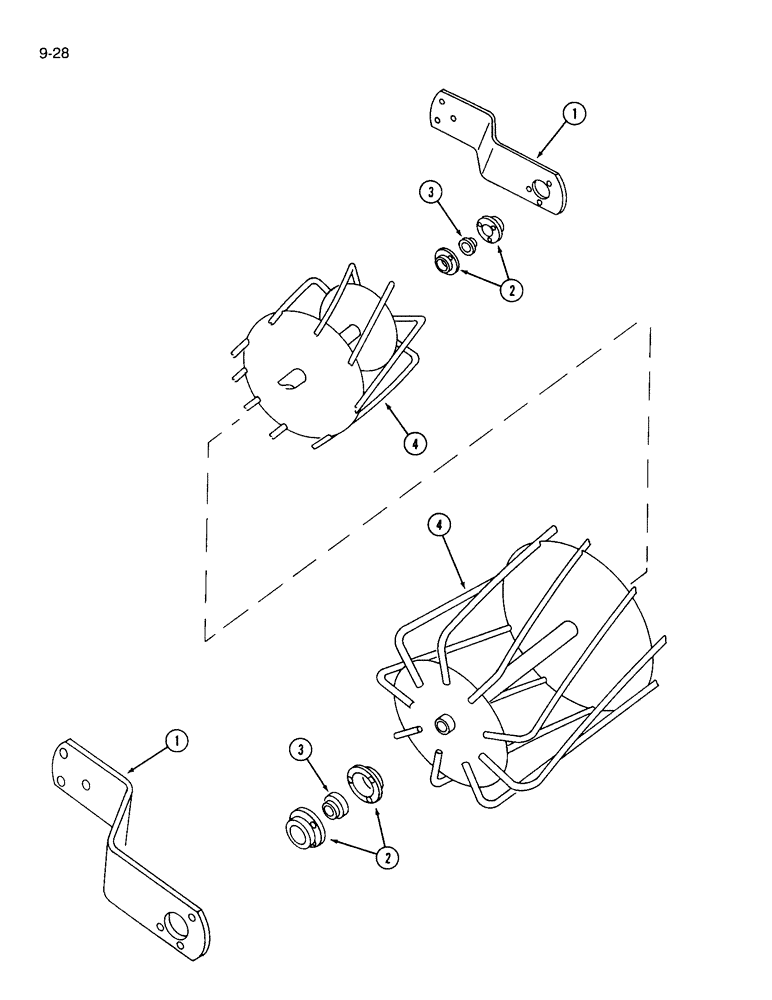

Запчасти Case IH 365 (9-28) - ROLLING MULCHER, ADD ON (09) - CHASSIS/ATTACHMENTS

1

1256485C1

BRACKET

- offset (Cultivators coded A)

4шт.

1

1256485C1

BRACKET

- offset (Cultivators coded B and C)

6шт.

1

1256485C1

BRACKET

- offset (Cultivators coded D through I)

8шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT - hex, 7/16 NC x 1-1/4 inch (Quantity of 3 per bracket)

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Quantity of 1 per bolt) 7/16"

1шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC (Quantity of 1 per bolt)

1шт.

2

455961R1

BEARING HOUSING,3.5625" OD x 0.3125"

FLANGE - bearing (Cultivators coded A)

8шт.

2

455961R1

BEARING HOUSING,3.5625" OD x 0.3125"

FLANGE - bearing (Cultivators coded B and C)

12шт.

2

455961R1

BEARING HOUSING,3.5625" OD x 0.3125"

FLANGE - bearing (Cultivators coded D through I)

16шт.

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - round head square neck, 5/16 NC x 1 inch (Quantity of 6 per basket)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Quantity of 1 per bolt) 5/16"

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Qty of 1 per bolt)

1шт.

3

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

- ball (Cultivators coded A)

4шт.

3

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

- ball (Cultivators coded B and C)

6шт.

3

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

- ball (Cultivators coded D through I)

8шт.

4

1256478C1

CONTROL

BASKET - 48 inch (Cultivators coded D and E)

2шт.

4

1256480C1

CONTROL

BASKET - 60 inch (Cultivators coded B, C, F and G)

1шт.

4

1256482C1

CONTROL

BASKET - 72 inch (Cultivators coded A, B, C, H and I)

2шт.

4

1256484C1

CONTROL

BASKET - 84 inch (Cultivators coded H and I)

2шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch (Quantity of 2 per basket)

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, (Quantity of 1 per bolt) 3/4"

1шт.
