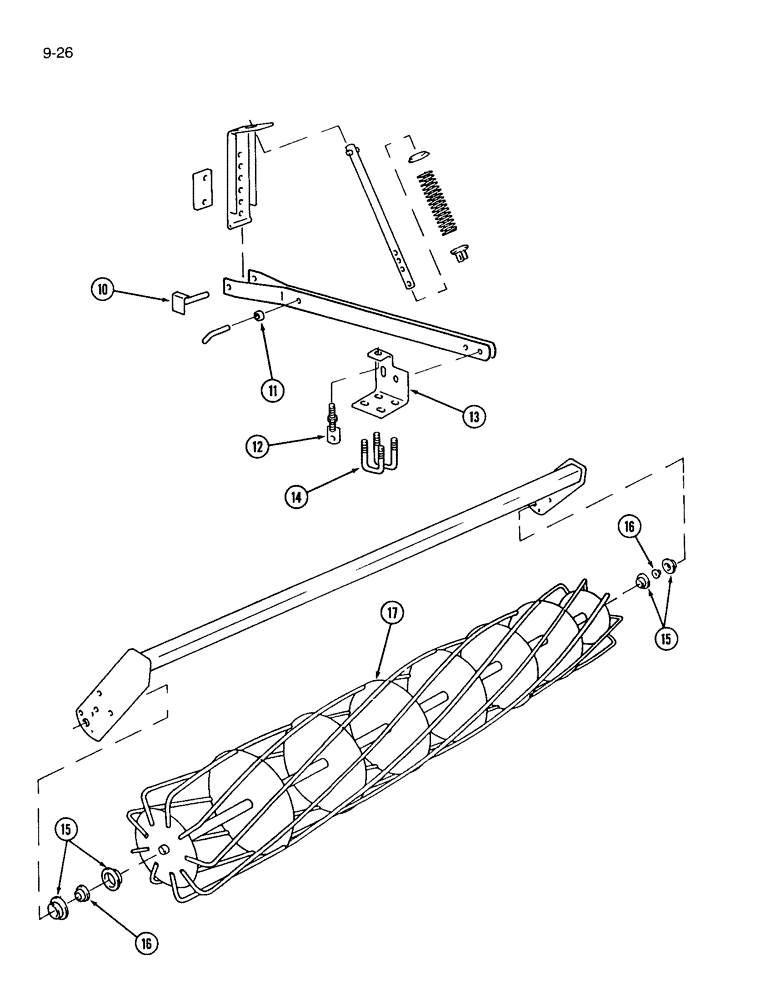

Запчасти Case IH 365 (9-26) - ROTARY MULCHER, MACHINES BUILT PRIOR TO P.I.N. 10371 (09) - CHASSIS/ATTACHMENTS

10

1256470C1

PIN

- carrier arm (Cultivators coded A, B and C)

6шт.

10

1256470C1

PIN

- carrier arm (Cultivators coded D, E, F and G)

8шт.

10

1256470C1

PIN

- carrier arm (Cultivators coded H and I)

10шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), (Quantity of 1 per pin) 1/4" x 2"

1шт.

11

1256474C1

BUSHING

- carrier arm (Cultivators coded A, B and C)

6шт.

11

1256474C1

BUSHING

- carrier arm (Cultivators coded D, E, F and G)

8шт.

11

1256474C1

BUSHING

- carrier arm (Cultivators coded H and I)

10шт.

12

1265736C1

ADJUSTMENT SCREW

- adjusting (Replaces 1256473C1) (Cultivators coded A, B and C)

6шт.

12

1265736C1

ADJUSTMENT SCREW

- adjusting (Replaces 1256473C1) (Cultivators coded D, E, F and G)

8шт.

12

1265736C1

ADJUSTMENT SCREW

- adjusting (Replaces 1256473C1) (Cultivators coded H and I)

10шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Qty of 1 per adjusting screw) 1/2"-13, G5

1шт.

13

1265737C1

PIVOT

- adjusting (Replaces 1256473C1) (Cultivators coded A, B and C)

6шт.

13

1265737C1

PIVOT

- adjusting (Replaces 1256473C1) (Cultivators coded D, E, F and G)

8шт.

13

1265737C1

PIVOT

- adjusting (Replaces 1256473C1) (Cultivators coded H and I)

10шт.

14

1256475C2

U-BOLT,7/16" - 14 x 2.03" W x 3" L

- adjusting pivot (Quantity of 2 per pivot)

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Quantity of 2 per U-bolt) 7/16"

1шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC (Quantity of 2 per U-bolt)

1шт.

15

455961R1

BEARING HOUSING,3.5625" OD x 0.3125"

FLANGE - bearing (Quantity of 4 per basket)

1шт.

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - round head square neck, 5/16 NC x 1 inch (Quantity of 6 per basket)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Quantity of 6 per basket) 5/16"

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Qty of 6 per basket)

1шт.

16

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

- ball (Quantity of 2 per basket)

1шт.

17

1256478C1

CONTROL

BASKET - 48 inch (Cultivators coded D and E)

2шт.

17

1256480C1

CONTROL

BASKET - 60 inch (Cultivators coded B, C, F and G)

1шт.

17

1256482C1

CONTROL

BASKET - 72 inch (Cultivators coded B, C, D, E, H and I)

2шт.

17

1256482C1

CONTROL

BASKET - 72 inch (Cultivators coded F and G)

3шт.

17

1256484C1

CONTROL

BASKET - 84 inch (Cultivators coded A, H and I)

2шт.
