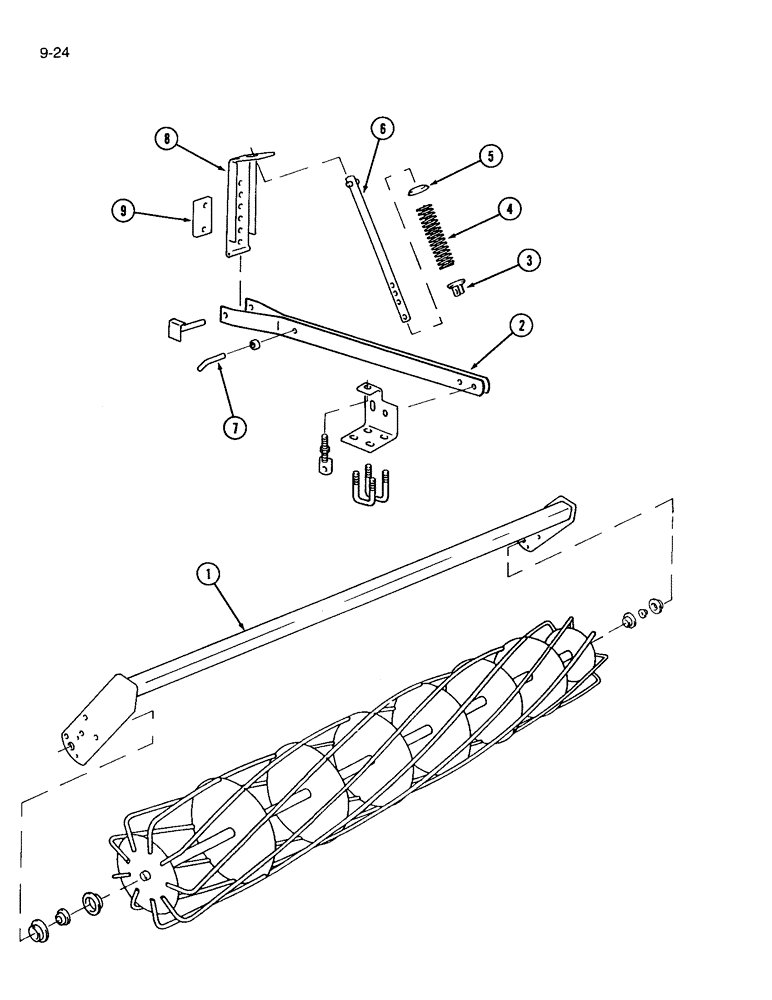

Запчасти Case IH 365 (9-24) - ROTARY MULCHER, MACHINES BUILT PRIOR TO P.I.N. 10371 (09) - CHASSIS/ATTACHMENTS

1

1256477C1

CARRIER

- basket, 48 inch (Cultivators coded D and E)

2шт.

1

1256479C1

CARRIER

- basket, 60 inch (Cultivators coded B, C, F and G)

1шт.

1

1256481C1

CARRIER

- basket, 72 inch (Cultivators coded B, C, D, E, H and I)

2шт.

1

1256481C1

CARRIER

- basket, 72 inch (Cultivators coded F and G)

3шт.

1

1256483C1

CARRIER

- basket, 84 inch (Cultivators coded A, H and I)

2шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch (Quantity of 2 per carrier)

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, (Quantity of 2 per carrier) 3/4"

1шт.

2

1256467C1

ARM

- carrier (Cultivators coded A, B and C)

6шт.

2

1256467C1

ARM

- carrier (Cultivators coded D, E, F and G)

8шт.

2

1256467C1

ARM

- carrier (Cultivators coded H and I)

10шт.

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(Quantity of 3 per arm) Hex, 1/2"-13 x 2", G5

1шт.

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, (Qty of 3 per arm) 1/2"-13, GC

1шт.

3

1256471C2

CAP

- spring (Cultivators coded A, B and C)

6шт.

3

1256471C2

CAP

- spring (Cultivators coded D, E, F and G)

8шт.

3

1256471C2

CAP

- spring (Cultivators coded H and I)

10шт.

4

1256472C1

SPRING

- carrier (Cultivators coded A, B and C)

6шт.

4

1256472C1

SPRING

- carrier (Cultivators coded D, E, F and G)

8шт.

4

1256472C1

SPRING

- carrier (Cultivators coded H and I)

10шт.

5

80057C1

CAP

- spring, upper (Cultivators coded A, B and C)

6шт.

5

80057C1

CAP

- spring, upper (Cultivators coded D, E, F and G)

8шт.

5

80057C1

CAP

- spring, upper (Cultivators coded H and I)

10шт.

6

1256468C1

GUIDE

- spring (Cultivators coded A, B and C)

6шт.

6

1256468C1

GUIDE

- spring (Cultivators coded D, E, F and G)

8шт.

6

1256468C1

GUIDE

- spring (Cultivators coded H and I)

10шт.

7

80056C1

PIN

- spring guide (Cultivators coded A, B and C)

6шт.

7

80056C1

PIN

- spring guide (Cultivators coded D, E, F and G)

8шт.

7

80056C1

PIN

- spring guide (Cultivators coded H and I)

10шт.

545254R1

PIN

- quick attachable cotter (Quantity of 1 per pin)

1шт.

8

1256466C1

ARM

- mounting (Cultivators coded A, B and C)

6шт.

8

1256466C1

ARM

- mounting (Cultivators coded D, E, F and G)

8шт.

8

1256466C1

ARM

- mounting (Cultivators coded H and I)

10шт.

9

1256476C1

BAR

- flat (Cultivators coded A, B and C)

6шт.

9

1256476C1

BAR

- flat (cultivators coded D, E, F and G)

8шт.

9

1256476C1

BAR

- flat (Cultivators coded H and I)

10шт.

13-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

- hex, 5/8 NC x 4-1/2 inch (Quantity of 2 per bar)

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Quantity of 1 per bolt) 5/8"

1шт.

425-1010

NUT,5/8"-11, G5

(Qty of 1 per bolt) 5/8"-11, G5

1шт.
