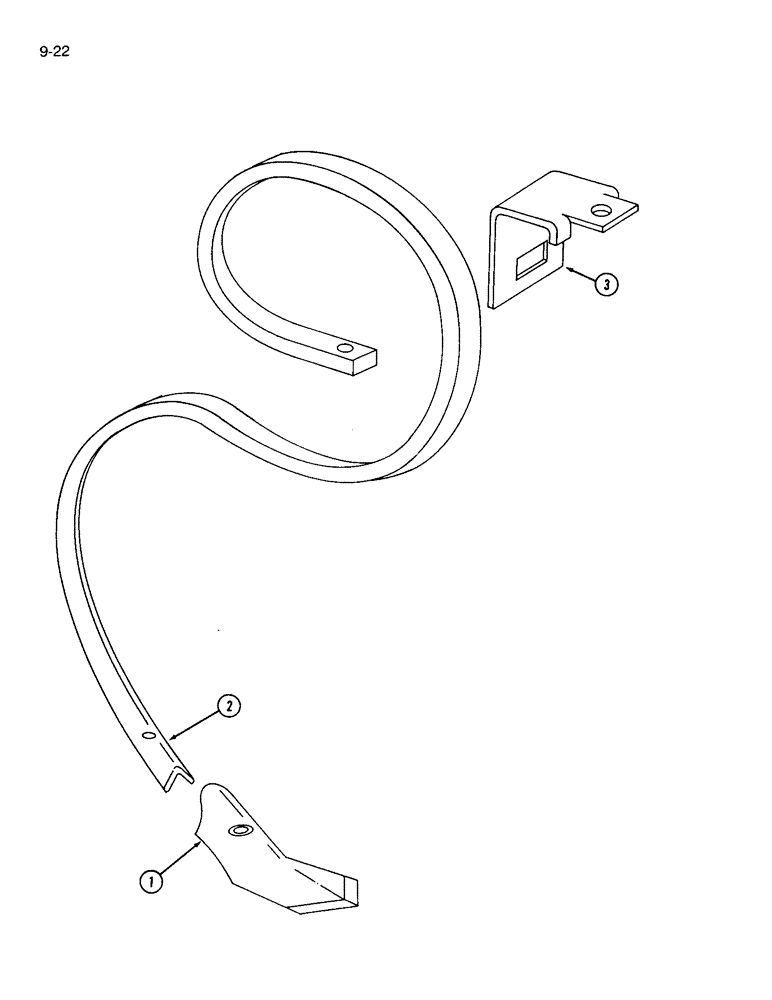

Запчасти Case IH 365 (9-22) - POINT AND SWEEP (09) - CHASSIS/ATTACHMENTS

1

64478C1

POINT

- heavy duty reversible, 13 OZ (See Note)

1шт.

1

1281302C1

SHOVEL

SWEEP - vibra tine, 2-1/2 inch (Replaces 100365C1)(See Note)

1шт.

1

1281303C1

SHOVEL

SWEEP - vibra tine, 4 inch (Replaces 100366C1)(See Note)

1шт.

1

1281304C1

SHOVEL

SWEEP - vibra tine, 7 inch (Replaces 100367C1)(See Note)

1шт.

138544C1

PLOW BOLT,3/8" - 16 x 1.58" Cl 5B

BOLT - tool mounting (Quantity of 1 per point or sweep)

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC (Quantity of 1 per bolt)

1шт.

Ref #2 - All Shanks under this ref # are 17 1/4" 08/01/96

1шт.

2

138584C1

TINE

SHANK - vibra tine (Cultivators coded A)

37шт.

2

138584C1

TINE

SHANK - vibra tine (Cultivators coded B and C)

45шт.

2

138584C1

TINE

SHANK - vibra tine (Cultivators coded D and E)

53шт.

2

138584C1

TINE

SHANK - vibra tine (Cultivators coded F and G)

61шт.

2

138584C1

TINE

SHANK - vibra tine (Cultivators coded H and I)

69шт.

3

138583C1

CLAMP

- tooth (Quantity of 1 per tine)

1шт.

411-764

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 4", Gr 2

BOLT - round head square neck, 7/16 x 4 inch (Quantity of 1 per clamp)

1шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, (Quantity of 1 per clamp) 7/16"-14, GB

1шт.
