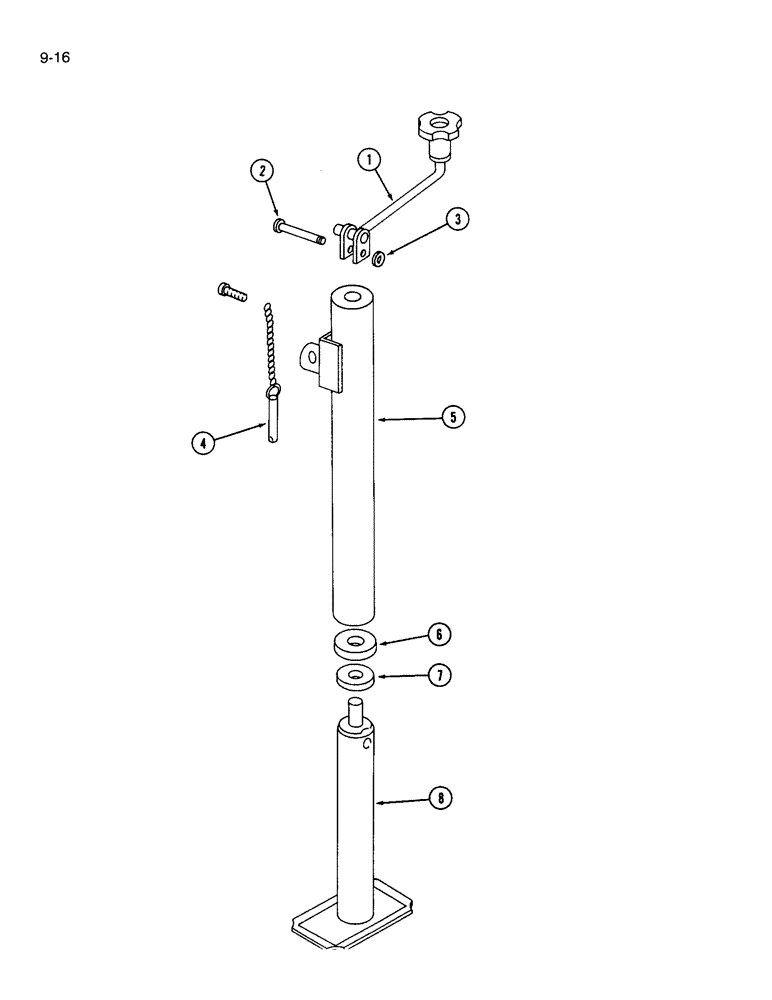

Запчасти Case IH 365 (9-16) - JACK ASSEMBLY, TRAILING MACHINES (09) - CHASSIS/ATTACHMENTS

1256363C91

JACK ASSY.

JACK ASSEMBLY - top crank

1шт.

1

1256366C1

CRANK

ASSEMBLY - jack

1шт.

2

1256367C1

PIN

- headed, crank

1шт.

3

1256368C1

NUT

- retaining, push on

1шт.

4

1256369C1

CHAIN (AG)

CHAIN ASSEMBLY - with pin

1шт.

488289R1

PIN - quick attachable cotter

1шт.

5

NSS

NOT SOLD SEPARAT

TUBE - outer

1шт.

6

1256370C91

ROLLER BEARING,0.5" ID x 1.42" OD x 0.45"

BEARING - roller

1шт.

7

59113C1

THRUST WASHER

- thrust

1шт.

8

NSS

NOT SOLD SEPARAT

TUBE - inner stake

1шт.
