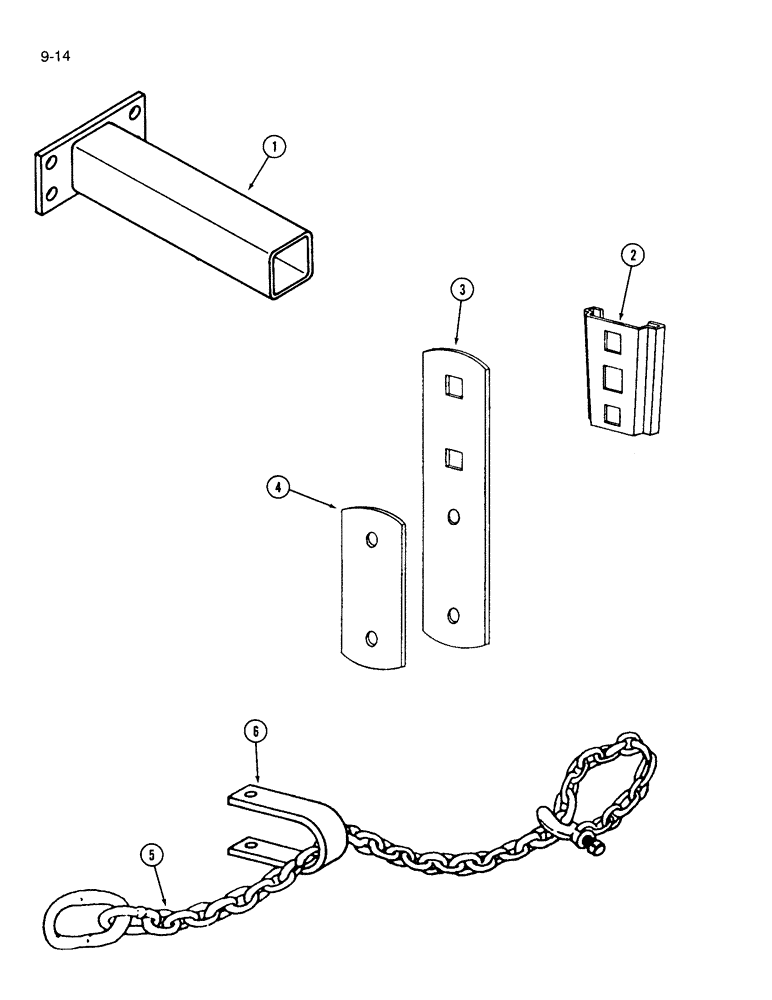

Запчасти Case IH 365 (9-14) - STUBS (09) - CHASSIS/ATTACHMENTS

1

1256420C1

SUPPORT

STUB - 2-1/2 inch

2шт.

1

1256421C1

SUPPORT

STUB - 7-1/2 inch

2шт.

1

1256422C1

SUPPORT

STUB - 12 inch

2шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch (Used only for attaching to folding wings)

24шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(Used only for attaching to rigid wings) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

24шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

24шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

24шт.

2

62593C1

BAR

SUPPORT - SMV lamp, safety equip.

1шт.

3

398976R1

BRACKET

SOCKET - lamp bracket, safety equip.

1шт.

412-716

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT - round head square neck, 7/16 NC x 1 inch, safety equip.

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Safety equip. 7/16"

1шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC, Safety equip.

1шт.

4

63242C1

BAR

CLAMP - SMV mounting, safety equip.

1шт.

424-656

BOLT - hex, 3/8 x 3-1/2 inch, safety equip.

2шт.

492-11038

LOCK WASHER,3/8"

safety equip. 3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

Safety equip. 3/8"-16, G5

2шт.

5

100682C3

CHAIN (AG)

CHAIN ASSEMBLY - safety, 5/16 link x 59-1/4 inch

1шт.

61913C92

PACKAGE

KIT - clevis and hardware, safety chain

1шт.

6

148558C1

CLEVIS

- safety chain

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Safety chain Hex, 5/8"-11 x 3 1/2", G5

1шт.

20033R1

LOCK NUT

NUT - hex lock, 5/8 inch NC, safety chain

1шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch, safety chain

1шт.

495-81047

WASHER,25/32" x 2" x .179"

- flat, 25/32 x 2 x 5/32 inch, safety chain

1шт.

22244R1

LOCK NUT

- hex lock, 3/4 inch NC, safety chain

1шт.
