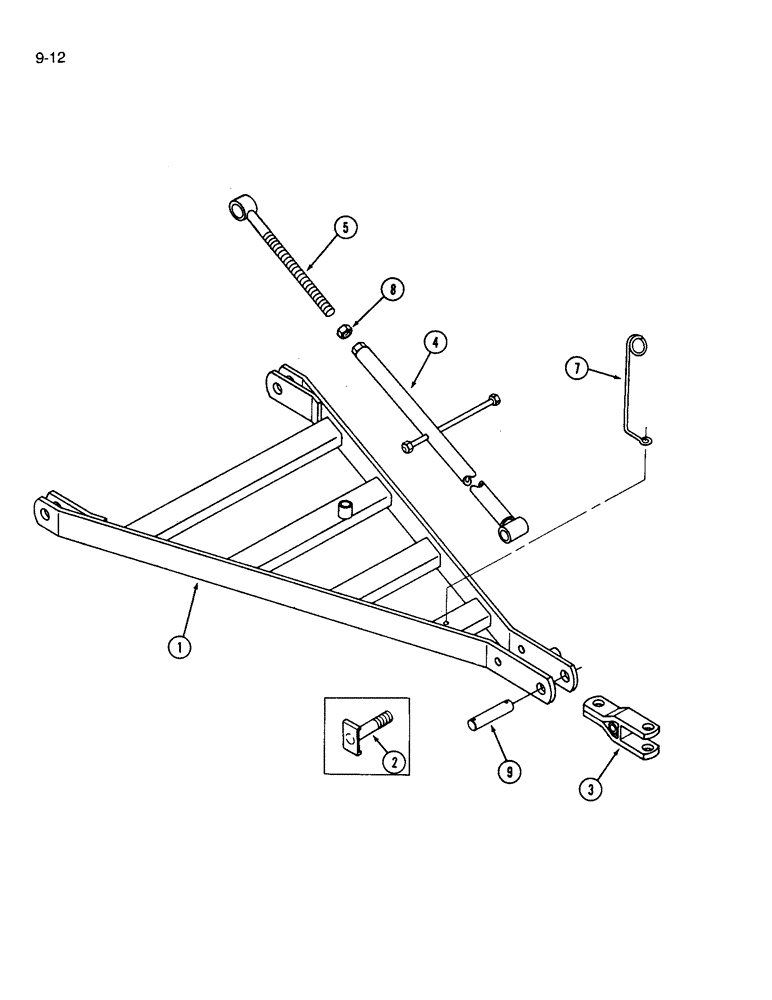

Запчасти Case IH 365 (9-12) - HITCH FRAME (09) - CHASSIS/ATTACHMENTS

1

1256414C3

TRAILER HITCH

HITCH - frame

1шт.

413-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

- hex, 1 NC x 6-1/2 inch

1шт.

495-81065

WASHER,26.19mm ID x 31.75mm OD x 1.7mm Thk

- flat, 1-1/32 x 1-1/4 x 3/64 inch

1шт.

26566R1

LOCK NUT

- hex, self-locking, 1-8 inch NC

1шт.

2

1256416C1

PIN

- clevis

1шт.

3

1256415C2

CLEVIS

- hitch

1шт.

4

1256417C2

TUBE

AND SWIVEL - hitch frame

1шт.

5

1265741C1

ADJUSTMENT SCREW

ASSEMBLY - adjusting (P.I.N. 10371 and After)

1шт.

5

1256418C1

ADJUSTMENT SCREW

- adjusting (Prior to P.I.N 10371)

1шт.

NSS

NOT SOLD SEPARAT

BUSHING - screw (Order 1256418C1)

1шт.

7

460046R1

ROD

GUIDE - hose

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT - hex, 7/16 NC x 1-1/4 inch

1шт.

495-31044

WASHER,7/16" x 7/8" x .083"

- flat, 7/16 x 7/8 x 5/64 inch

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

1шт.

8

425-1420

JAM NUT,Jam, 1 1/4"-7, G5

- hex, jam, 1-1/4 inch NC

1шт.

9

1265707C2

PIN

- stress proof, 1-1/2 inch

1шт.

19845R1

LOCK PIN,3/8" x 2 3/4", Slotted

Pin, 3/8" x 2 3/4", Slotted

2шт.
