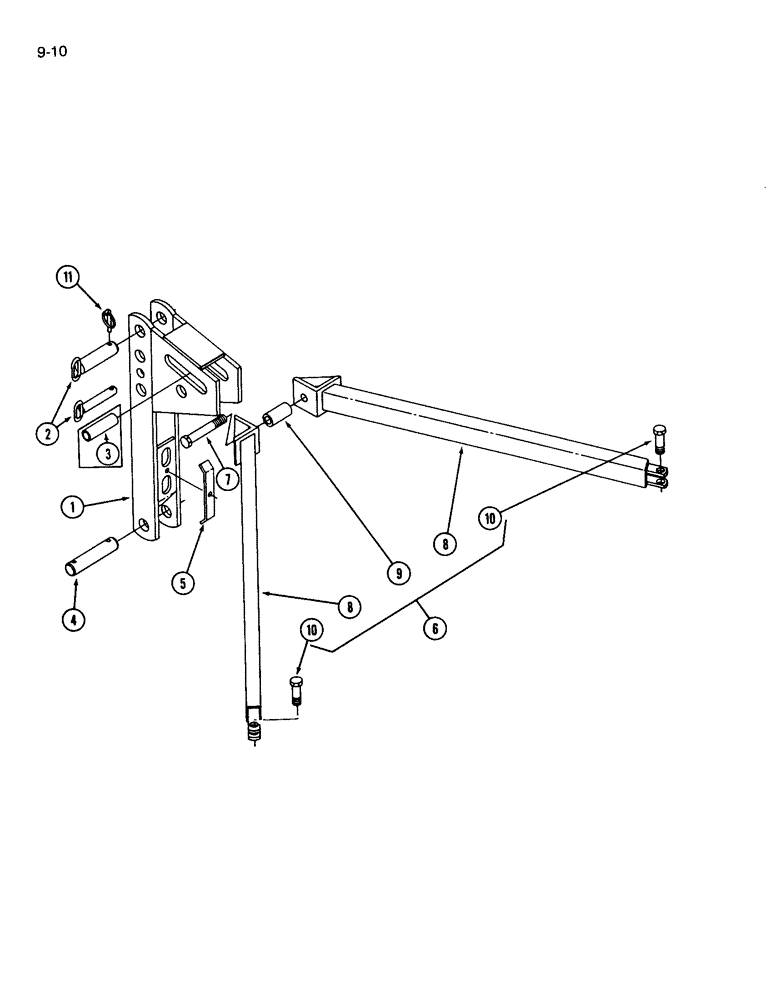

Запчасти Case IH 365 (9-10) - MAST AND STABILIZER (09) - CHASSIS/ATTACHMENTS

1

1256407C1

SUPPORT

FRAME ASSEMBLY - mast

1шт.

2

63133C2

PIN

- mast, 1 inch OD (Category II)

1шт.

2

1256409C1

PIN

- mast, 1-1/4 inch OD (Category III)

1шт.

3

1256410C1

BUSHING

- mast to stabilizer (Used with 1256413C1)

1шт.

22837R1

SCREW

BOLT - hex, 1 x 5-1/2 inch

1шт.

495-81065

WASHER,26.19mm ID x 31.75mm OD x 1.7mm Thk

- flat, 1-1/32 x 1-1/4 x 3/64 inch

2шт.

26566R1

LOCK NUT

- hex, self-locking, 1 inch NC

1шт.

4

1256411C1

PIN

-, Serial Range: mast-frame

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

2шт.

5

1256412C1

CLAMP

- hose

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

231-1445

NUT,5/16"-18, GB

NUT - light hex, self-locking, 5/16 inch NC

1шт.

6

1256413C2

STABILIZER

ASSEMBLY - frame

1шт.

7

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex, 3/4 NC x 6 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

8

1254032C1

STABILIZER

- frame

2шт.

9

1254033C1

TUBE

- spacer

1шт.

10

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

11

A30338

PIN

- self locking, 1/4 x 1-3/4 inch

1шт.
