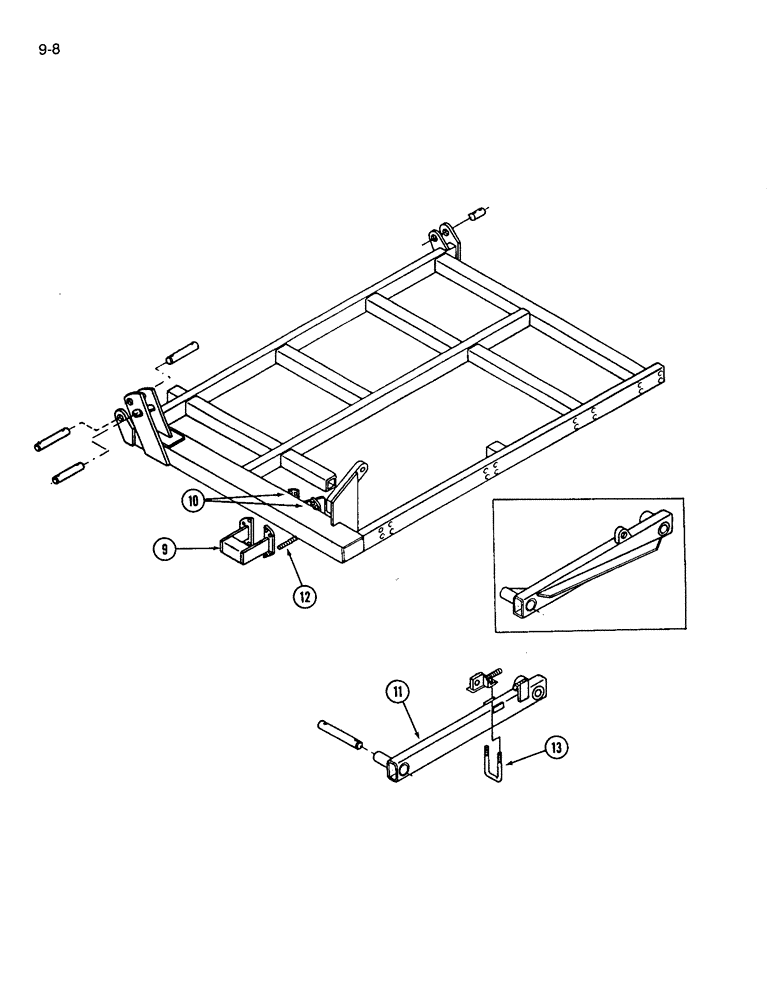

Запчасти Case IH 365 (9-08) - WING FRAMES, FOLDING (09) - CHASSIS/ATTACHMENTS

9

1256665C1

BRACKET

ASSEMBLY - tooth bar (Cultivators coded C)

2шт.

9

1256665C1

BRACKET

ASSEMBLY - tooth bar (Cultivators coded E, G and I)

4шт.

10

1256666C1

BAR

CLAMP - flat (Cultivators coded C)

4шт.

10

1256666C1

BAR

CLAMP - flat (Cultivators coded E, G and I)

8шт.

11

1265742C1

ARM

- wing gauge wheel, left (P.I.N. 10371 and After) (See Note)

1шт.

11

1265745C1

ARM

- wing gauge wheel, right (P.I.N. 10371 and After) (See Note)

1шт.

12

1265749C1

STUD

- threaded (Cultivators coded C)

8шт.

12

1265749C1

STUD

- threaded (Cultivators coded E, G and I)

16шт.

13

1265744C1

U-BOLT,7/16" - 14 x 2.03" W x 5.5" L

- wing gauge wheel (See Note)

2шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

4шт.
