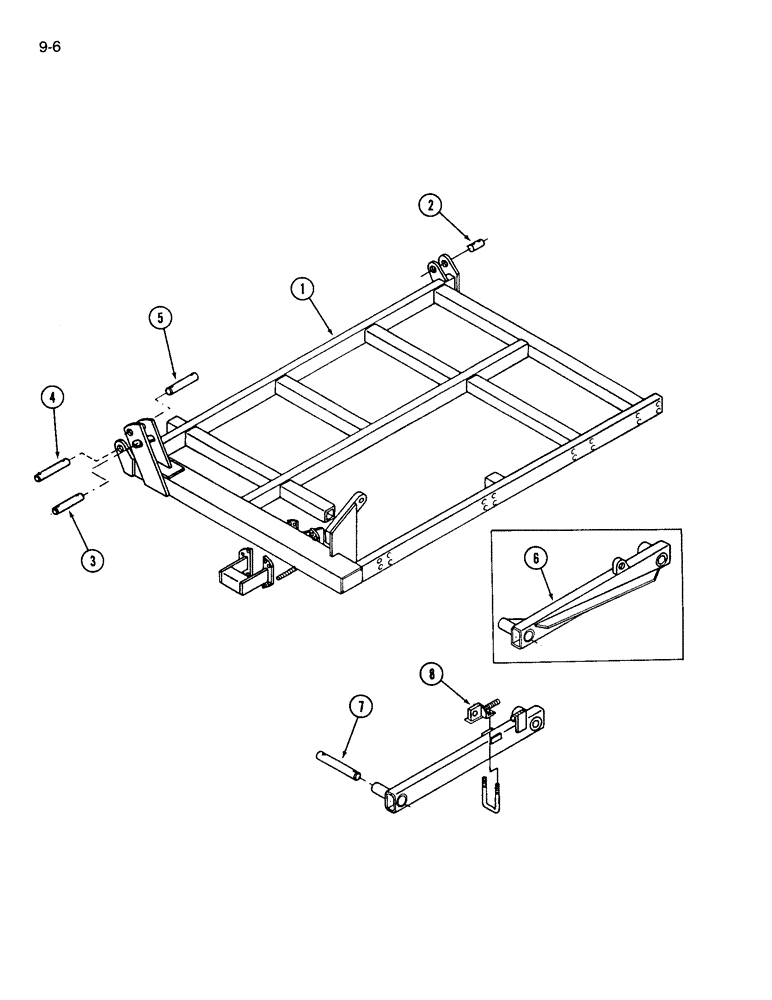

Запчасти Case IH 365 (9-06) - WING FRAMES, FOLDING (09) - CHASSIS/ATTACHMENTS

1

1256424C1

FRAME

- wing, left, 2 feet 8 inches (Cultivators coded D and E)

2шт.

1

1256425C1

FRAME

- wing, right, 2 feet 8 inches (Cultivators coded D and E)

2шт.

1

1256426C1

FRAME

- wing, left, 4 feet 2 inches (Cultivators coded F and G)

2шт.

1

1256427C1

FRAME

- wing, right, 4 feet 2 inches (Cultivators coded F and G)

2шт.

1

1256428C2

FRAME

- wing, left, 5 feet 8 inches (Cultivators coded H and I)

2шт.

1

1256429C2

FRAME

- wing, right, 5 feet 8 inches (Cultivators coded H and I)

2шт.

2

62574C1

PIN

- lift tube (See Note)

1шт.

32-1624

COTTER PIN,1/4" x 1 1/2"

PIN, SPLIT (COTTER), 1/4" x 1 1/2"

2шт.

3

1256430C1

PIN

- cylinder (Cultivators coded E, G and I)

4шт.

A30338

PIN

- self locking, 1/4 x 1-3/4 inch

4шт.

32-1624

COTTER PIN,1/4" x 1 1/2"

PIN, SPLIT (COTTER), 1/4" x 1 1/2"

4шт.

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 1/8 inch

8шт.

4

1256431C1

PIN

- lift

1шт.

32-1624

COTTER PIN,1/4" x 1 1/2"

PIN, SPLIT (COTTER), 1/4" x 1 1/2"

2шт.

5

1256432C1

PIN

- lock (See Note)

1шт.

32-1624

COTTER PIN,1/4" x 1 1/2"

PIN, SPLIT (COTTER), 1/4" x 1 1/2"

1шт.

A30338

PIN

- self locking, 1/4 x 1-3/4 inch

1шт.

6

1256433C1

ARM

- wing gauge wheel, left (Prior to P.I.N. 10371) (See Note)

1шт.

6

1256434C1

ARM

- wing gauge wheel, right (Prior to P.I.N. 10371) (See Note)

1шт.

NLS

NO LONGER SERVICED

- hex, 7/16 x 2-3/4 inch

1шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

1шт.

7

1256401C1

PIN

- gauge wheel arm (See Note)

1шт.

32-1624

COTTER PIN,1/4" x 1 1/2"

PIN, SPLIT (COTTER), 1/4" x 1 1/2"

6шт.

8

1265743C1

ANCHOR

- hydraulic cylinder, adjustable, left (P.I.N. 10371 and After)(See Note)

1шт.

8

1265746C1

ANCHOR

- hydraulic cylinder, adjustable, right (P.I.N. 10371 and After)(See Note)

1шт.

495-11081

WASHER,3/4", SAE

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.
