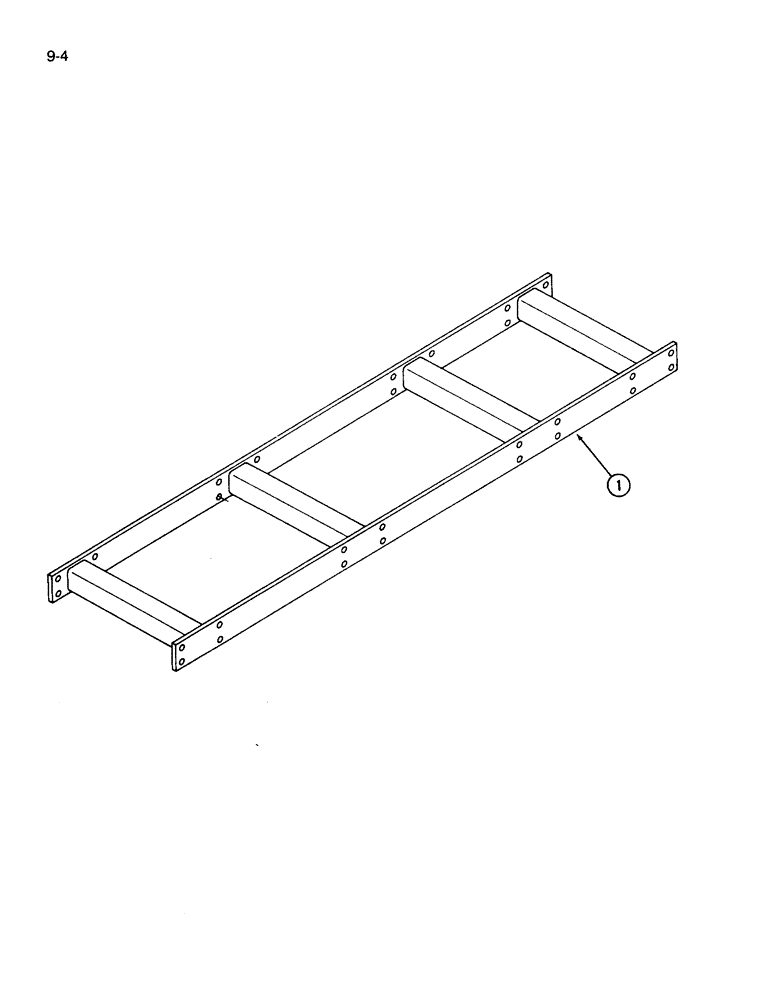

Запчасти Case IH 365 (9-04) - WING FRAMES, RIGID (09) - CHASSIS/ATTACHMENTS

1

1256419C1

FRAME

- wing, rigid (See Note)

2шт.

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

32шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

32шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

32шт.
