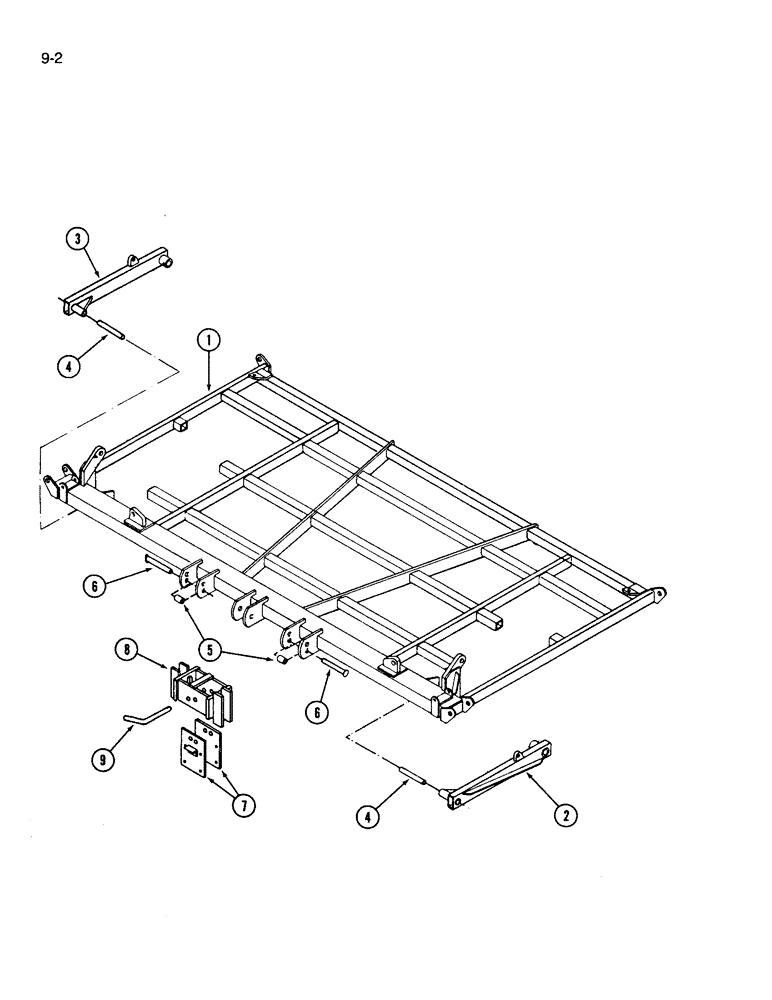

Запчасти Case IH 365 (9-02) - CENTER FRAME AND GAUGE WHEEL ARMS (09) - CHASSIS/ATTACHMENTS

1

1256399C1

FRAME

- center

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

- hex, 7/16 x 2-3/4 inch

2шт.

9413954

LOCK NUT,7/16"-14, GB

NUT - hex lock, 7/16 inch NC

2шт.

2

1256400C1

ARM

- gauge wheel, left

1шт.

3

1256406C1

ARM

- gauge wheel, right

1шт.

4

1256401C1

PIN

- gauge wheel arm

2шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

4шт.

5

1256402C1

BUSHING

- 1-1/4 inch ID (Category II)

2шт.

5

1256403C1

BUSHING

- 1-15/32 inch ID (Category III)

2шт.

6

1256404C1

PIN

- hitch, 1-1/8 inch OD (Category II)

2шт.

6

1256405C1

PIN

hitch, 1-7/16 inch OD, category III

1шт.

517758R91

SPLIT PIN/SAFETY PIN

PIN - quick attachable cotter

2шт.

7

1265753C1

CARRIER

- transport lock

4шт.

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch

8шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

8

1265758C1

LOCK

ASSEMBLY - transport

2шт.

9

1978739C1

PIN

transport lock, Replaces:1265748C1

2шт.

480523R1

HAIR PIN COTTER

quick attachable, transport lock

2шт.

117698A1

CHANNEL

cylinder, lock

1шт.
