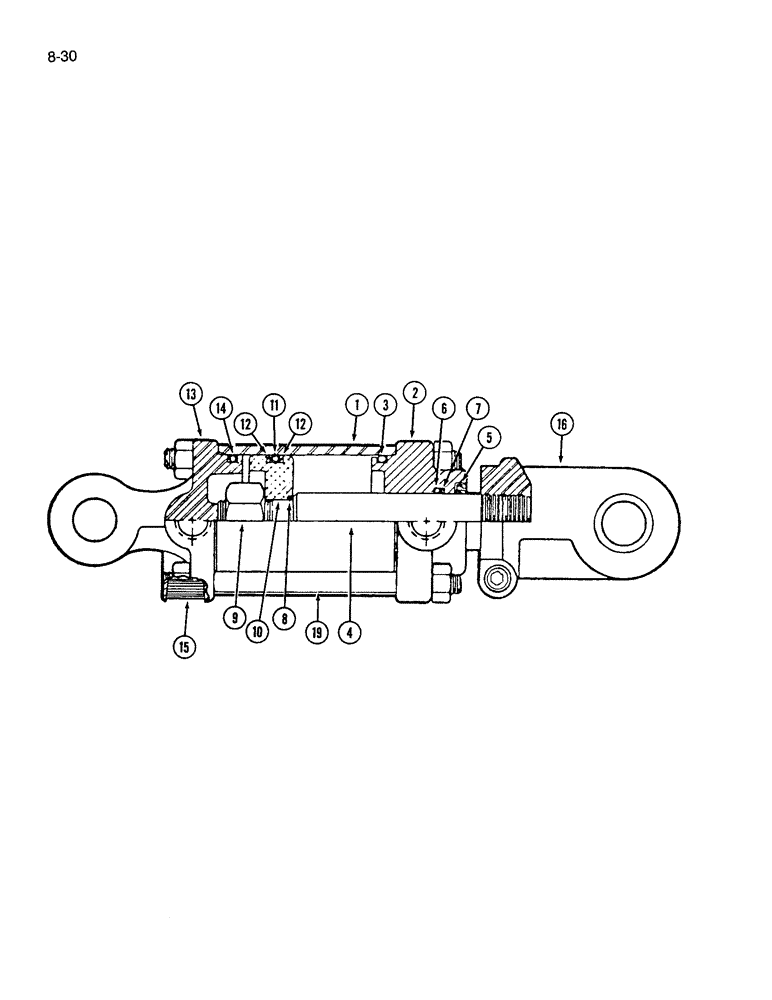

Запчасти Case IH 365 (8-30) - HYDRAULIC CYLINDER, 3-1/2 ID X 8 INCH STROKE (08) - HYDRAULICS

75753C91

CYLINDER ASSEMBLY - hydraulic, 3-1/2 x 8 inch (No longer available, order 1272147C91 cylinder assembly, See Page 8-33)

1шт.

1

B17238

TUBE

- cylinder (Replaces 75758C1)

1шт.

2

75759C1

END

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of seal and O-ring kit P/N B17232 (Replaces 75765C1)

1шт.

4

B17246

ROD

- piston (Replaces 75760C1)

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal and O-ring kit P/N B17232 (Replaces 75765C1)

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal and O-ring kit P/N B17232 (Replaces 75765C1)

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup, piston rod O-ring

1шт.

Part of seal and O-ring kit P/N B17232 (Replaces 75765C1)

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING -, Serial Range: rod-piston

1шт.

Part of seal and O-ring kit P/N B17232 (Replaces 75765C1)

1шт.

9

425-119

NUT,Hex, 9/16"-18, G5

NF Hex, 9/16"-18, G5

1шт.

10

B17275

PISTON

- cylinder (Replaces 75761C1)

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of seal and O-ring kit P/N B17232 (Replaces 75765C1)

1шт.

12

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

2шт.

Part of seal and O-ring kit P/N B17232 (Replaces 75765C1)

1шт.

13

B17281

BASE

HEAD - cylinder, closed end (Replaces 75755C1)

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - cylinder head

1шт.

Part of seal and O-ring kit P/N B17232 (Replaces 75765C1)

1шт.

15

75757C1

PLUG

- cylinder head

1шт.

16

T55022

CLEVIS

- rod (Replaces 812266C1 and 75763C1)

1шт.

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - cap, hex socket, 3/8 NC x 1-3/4 inch (Not shown)

1шт.

425-106

NUT,3/8"-16, Cl 5

(Not shown) 3/8"-16, G5

1шт.

19

75754C1

ROD

- tie, cylinder

4шт.

75764C1

PIN

- clevis (Not shown)

1шт.

75756C1

PIN

- cylinder head, closed end (Not shown)

1шт.

480523R1

HAIR PIN COTTER

(Not shown)

2шт.

B17232

SEAL

KIT - seal and O-ring, Includes Refs. 3, 5, 6, 7, 8, 11, 12 and 14 (Replaces 75765C1)

1шт.
