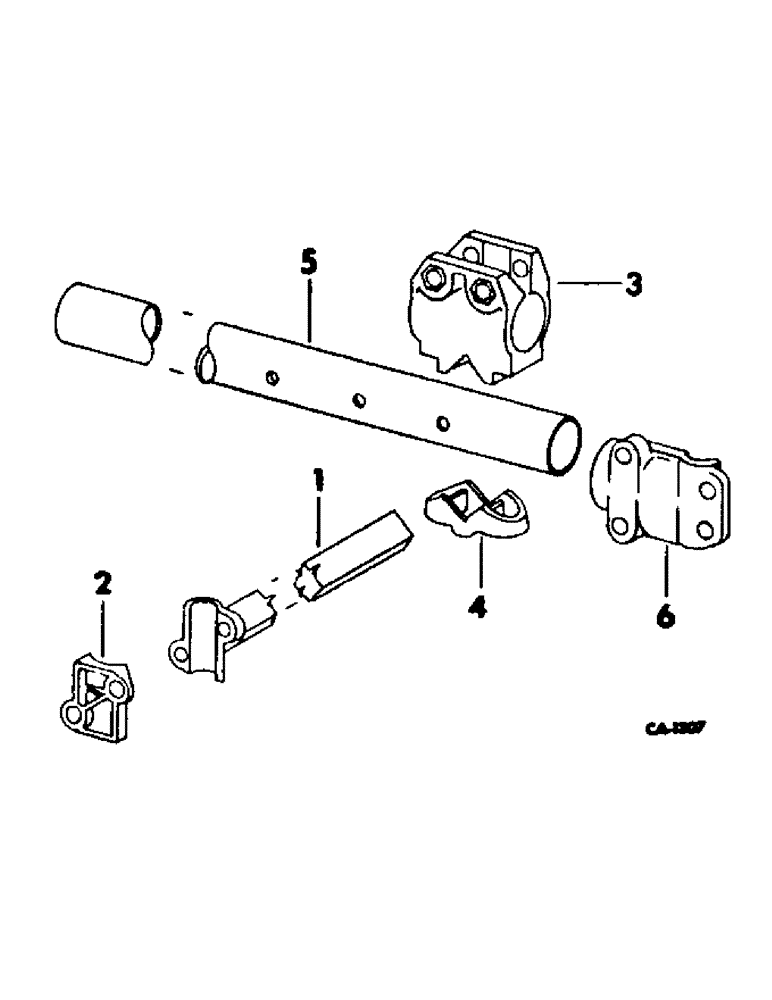

Запчасти Case IH 353 (AT-05) - TOOLING EQUIPMENT, FOR ROUND TOOL BARS

1

30927B

EXTENSION

17-1/2 in. tool bar, for units A, B, G and K

4шт.

1

30790BA

EXTENSION

8-5/8 in. tool bar, 4 used for unit G, 8 used for unit A, 12 used for unit B, 16 used for unit K

1шт.

1

30791BA

EXTENSION

14-1/8 in. tool bar, 4 used for unit G, 8 used for unit A, 12 used for unit B, 16 used for unit K

1шт.

1

542041R1

EXTENSION

11-5/8 tool bar, 12 used for unit H, 16 used for unit J

1шт.

2

510918R1

CLAMP

CAP, extension, 8 used for unit G, 12 used for unit H, 16 used for units A and J, 24 used for unit B, 32 used for unit K

1шт.

18956R1

BOLT,5/8" - 11 x 2 1/2", Gr 2

5/8 x 2-1/2 C-Z sq-hd mach, 2 used per cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 2 used per cap

1шт.

3

542998R1

CLAMP

round tool bar, 8 used for unit G, 12 used for unit H, 16 used for units A and J, 24 used for unit B, 32 used for unit K

1шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8 x 3-1/4 znd hex-hd cap, 2 used per clamp

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8 x 3 znd hex-hd cap, 2 used per clamp

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex., 4 used per clamp

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga. C-Z, 2 used per clamp

1шт.

4

547750R1

CLAMP

CAP, clamp, will work for 28256BB, 8 used for unit G, 12 used for unit H, 16 used for units A and J, 24 used for unit B, 32 used for unit K

1шт.

5

542986R2

TUBE, round tool bar, 3 used for unit G, 5 used for unit A, 7 used for units B and H, 9 used for units J and K

1шт.

6

542996R1

CLAMP

round tooling std half, 10 used for unit A, 14 used for unit B

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8 x 2-3/4 znd hex-hd cap, 10 used for unit A, 14 used for unit B

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

SCREW, 5/8 x 3-1/2 znd hex-hd cap, 10 used for unit A, 14 used for unit B

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex., 20 used for unit A, 28 used for unit B

1шт.
