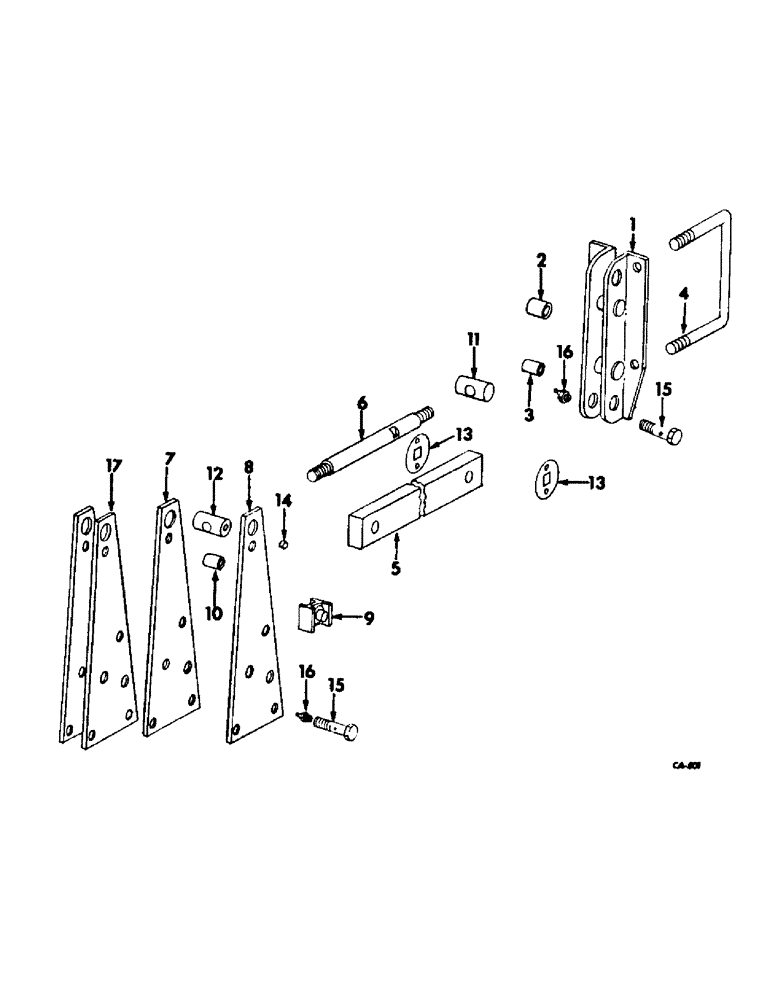

Запчасти Case IH 353 (AT-03) - PARALLEL LINKAGE, FOR UNITS A THRU K

1

492960R91

BRACKET

ASSY, head, 3 used for unit G, 5 used for units A and C, 7 used for units D and H

1шт.

1

492936R91

BRACKET

ASSY, head, 7 used for units B and E, 9 used for units F, J and K

1шт.

2

492939R1

SPACER

lower, 3 used for unit G, 5 used for units A and C, 7 used for units B, D, E and H, 9 used for units F, J and K

1шт.

24541R1

RIVET, 5/8 x 3 f-hd solid, 1 used per spacer

1шт.

3

492941R1

SPACER

upper, 3 used for unit G, 5 used for units A and C, 7 used for units B, D, E and H, 9 used for units F, J and K

1шт.

25434R1

RIVET, 1/2 x 2-3/4 f-hd solid, 1 used per spacer

1шт.

4

492963R1

BOLT,5/8" - 11 x 5 1/4"

U-BOLT, head bracket, 4 used for unit G, 8 used for units A and C, 12 used for units D and H

1шт.

4

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

head bracket, 12 used for units B and E, 16 used for units F and J

1шт.

4

1250813C1

U-BOLT

head bracket, 16 used for unit K

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex., 2 used per u-bolt

1шт.

5

483281R1

BAR, lower parallel link, 1970 to 1971, 5 used for units A and C, 7 used for units B, D and E, 9 used for unit F

1шт.

5

545405R1

BAR

lower parallel link, 1971 and since, 3 used for unit G, 5 used for units A and C, 7 used for units B, D, E and H, 9 used for units F, J and K

1шт.

6

523448R1

ROD

upper link, 3 used for unit G, 5 used for units A and C, 7 used for units B, D, E and H, 9 used for units F, J and K

1шт.

7

483282R3

PLATE, tool bar, 5 used for units C and E, 7 used for units D and F

1шт.

7

544014R1

PLATE, tool bar tapered, 3 used for unit G, 5 used for unit A, 7 used for units B and H, 9 used for units J and K

1шт.

8

483283R3

PLATE, tool bar att not tap., 5 used for units C and E, 7 used for units D and F

1шт.

8

544013R1

PLATE, tool bar, 3 used for unit G, 5 used for unit A, 7 used for units B and H, 9 used for units J and K

1шт.

180193

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

SCREW, 1/2-13 x 3-3/4 hex-hd C-Z cap, 6 used for unit G, 10 used for unit A, 14 used for units B and H, 18 used for units J and K

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 znd hex-hd cap, 10 used for unit C, 14 used for units D and E, 18 used for unit F

1шт.

120384

WASHER,1/2"

LOCK, , 6 used for unit G, 10 used for unit A, 14 used for units B and H, 18 used for units J and K 1/2"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 10 used for unit C, 14 used for units D and E, 18 used for unit F 5/8"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 6 used for unit G, 10 used for unit A, 14 used for units B and H, 18 used for units J and K 1/2"-13, G5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex., 10 used for unit C, 14 used for units D and E, 18 used for unit F

1шт.

9

483287R2

BLOCK

gang stop, 3 used for unit G, 5 used for units A, C and E, 7 used for units B, D, E and H, 9 used for units J and K

1шт.

10

483284R1

SPACER

3 used for unit G, 5 used for units A and C, 7 used for units B, D, E and H, 9 used for units F, J and K

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 znd hex-hd mach, 1 per spacer

1шт.

120384

WASHER,1/2"

LOCK, , 1 per spacer 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per spacer 1/2"-13, G5

1шт.

11

483285R1

PIVOT ASSY.

SWIVEL, upper link front, 3 used for unit G, 5 usd for units A and C, 7 used for units B, D, E and H, 9 used for units F, J and K

1шт.

12

483286R1

PIVOT ASSY.

SWIVEL, upper link rear, 3 used for unit G, 5 used for units A and C, 7 used for units B, D, E and H, 9 used for units F, J and K

1шт.

13

486998R1

WASHER,20.63mm ID x 76.2mm OD x 1.52mm Thk

lower pivot brg, 6 used for unit G, 10 used for units A and C, 14 used for units B, D, E and H, 18 used for units F, J and K

1шт.

14

522591R1

PLUG

bolt locking, 3 used for unit G, 5 used for units A and C, 7 used for units B, D, E and H, 9 used for units F, J and K

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach, 1 per plug

1шт.

15

487061R1

BOLT

lower link pivot, 1970 to 1971, 10 used for units A and C, 14 used for units B, D and E, 18 used for unit F

1шт.

15

545406R1

BOLT (SPREADER),Hex, 3/4" - 10 x 3", Cl 1

BOLT, lower link pivot, 1971 and since, 6 used for unit G, 10 used for units A and C, 14 used for units B, D, E and H, 18 used for units F, J and K

1шт.

24663R1

LOCK NUT,3/4"-10, G5

NUT, 3/4-10 C-Z hex. nylon insert, 1 per bolt

1шт.

16

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 45 deg angle or lub rear, replaces 110146R91, 3 used for unit G, 5 used for units A and C, 7 used for units B, D, E and H, 9 used for units F, J and K

1шт.

16

19700R91

FITTING

3/16 45 deg angle or lub front, replaces 110146R91, 3 used for unit G, 5 used for units A and C, 7 used for units B, D, E and H, 9 used for units F, J and K

1шт.

17

490170R2

BRACKET ASSY, 2 used for units E and F

1шт.

22222R1

SCREW, 3/4-10 x 2-1/2 C-Z sq-hd ov-pt set, 2 used for units E and F

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex. jam, 2 used for units E and F

1шт.
