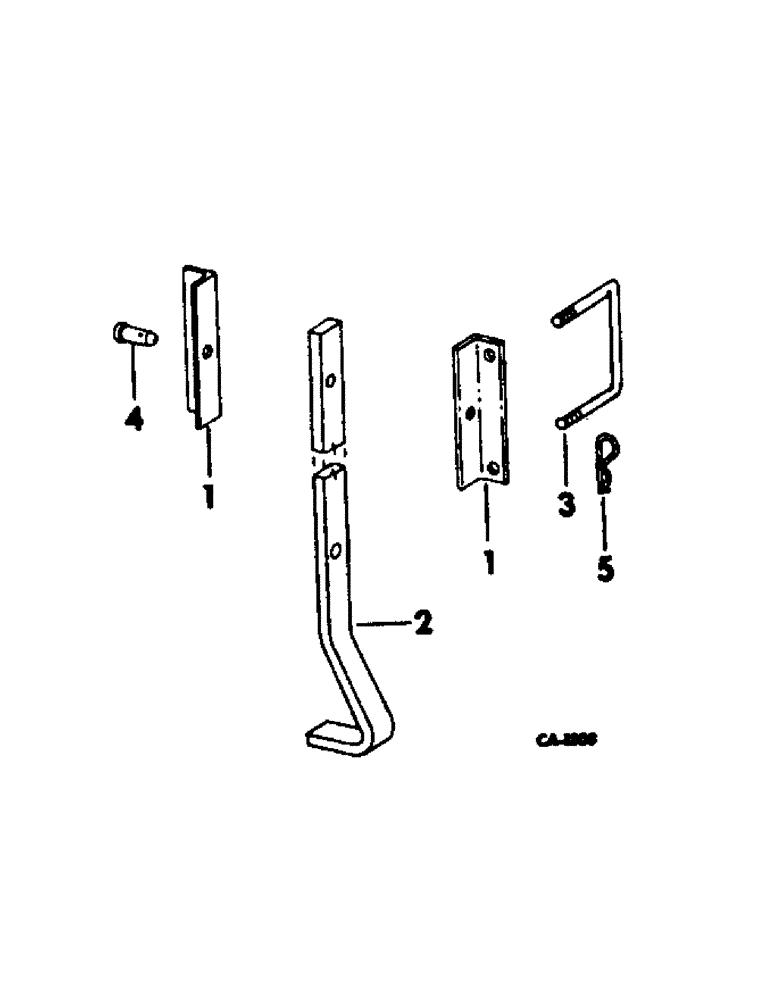

Запчасти Case IH 353 (AT-24) - SUPPORT STAND, FOR UNITS A THRU J

1

542992R1

ANGLE

2 used units A, C, D, G and H

1шт.

1

543108R2

ANGLE, 4 used units B, E, F and J

1шт.

2

542984R1

STAND

support, 1 used units A, C, D, G and H, 2 used units B, E, F and J

1шт.

3

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

4 used units B, E, F and J

1шт.

3

492963R1

BOLT,5/8" - 11 x 5 1/4"

U-BOLT, 2 used units A, C, D, G and H

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 znd hex., 2 used per u-bolt

1шт.

4

542977R1

PIN, 5/8 pointed, 1 used for units A, C, D, G and H, 2 used for units B, E, F and J

1шт.

5

517843R1

COTTER PIN

PIN, quick attachable cot., 1 used units A, C, D, G and H, 2 used units B, E, F and J

1шт.
