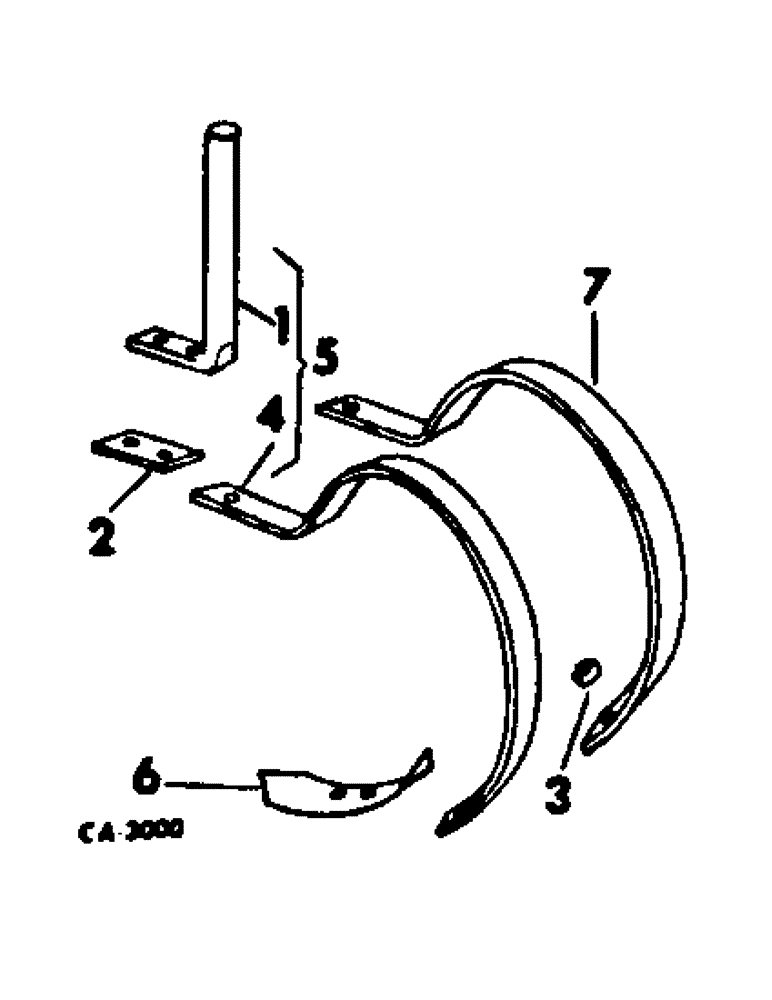

Запчасти Case IH 353 (AT-18) - SPRING TEETH

1

547754R1

SUPPORT ASSY.

STANDARD, 1-1/4 dia. x 10 in.

1шт.

1

547755R1

STANDARD, 1-7/16 dia. x 13 in., units A, B, G, H, J and K

1шт.

1

547756R1

STANDARD, 1-1/4 dia. x 11.5 in., units C, D, E and F

1шт.

2

547759R1

STRAP

spring tooth

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

3

SA2344

SPACER,3/8" Pipe x 7/16"

outer spring tooth

1шт.

4

547757R1

SPRING

TOOTH, spring

1шт.

5

547751R91

SPRING TOOTH ASSY, 1-1/4 x 10 in.

1шт.

5

547752R91

SPRING TOOTH ASSY, 1-7/16 dia. x 13 in., units A, B, G, H, J and K

1шт.

5

547753R91

SPRING TOOTH ASSY, 1-1/4 dia. x 11.5 in., units C, D, E and F

1шт.

6

25702BA

SHOVEL

double point

1шт.

25548BBX

BOLT,7/16" - 14 x 1 1/2"

ASSY, special sweep and shovel

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

271501

SOCKET

NUT, 7/16-14 znd hex.

2шт.

25596BBX

BOLT

ASSY, special sweep and shovel

1шт.

11029R1

WASHER, 15/32 x 1 x 11 ga C-Z

2шт.

7

547758R1

TOOTH

outer spring

1шт.
