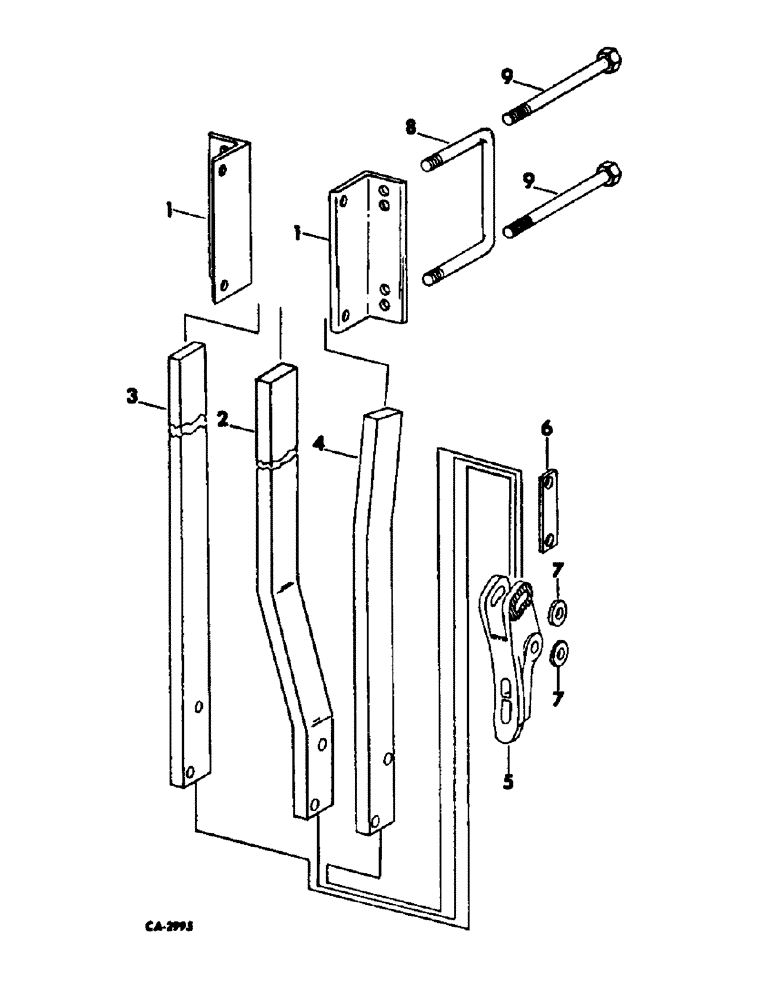

Запчасти Case IH 353 (AT-17) - BED RIPPER SHANK
№
Артикул
Название
Примечание
Количество
1
55336C1
ANGLE, beam mounting
4шт.
2
55338C1
BEAM, offset ripper LH
1шт.
2
55339C1
BEAM, offset ripper RH
1шт.
413-1048
BOLT,Hex, 5/8" - 11 x 3", Gr 5
SCREW, 5/8-11 x 3 znd hex-hd cap
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
3
55340C1
BEAM, straight ripper, except two-row
2шт.
413-1048
BOLT,Hex, 5/8" - 11 x 3", Gr 5
SCREW, 5/8-11 x 3 znd hex-hd cap
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
4
55341C1
BEAM, wheel track
2шт.
413-1048
BOLT,Hex, 5/8" - 11 x 3", Gr 5
SCREW, 5/8-11 x 3 znd hex-hd cap
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
124589
BALL STUD,Hex, 5/8" - 11 x 2", Gr 5
5/8-11 znd hex.
4шт.
5
55342C1
SHANK
2шт.
6
55343C1
CLIP
2шт.
7
523011R1
WASHER
serrated
4шт.
413-1060
BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5
SCREW, 5/8-11 x 3-3/4 znd hex-hd cap
2шт.
413-1048
BOLT,Hex, 5/8" - 11 x 3", Gr 5
5/8-11 x 3 znd hex-hd cap
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
8
493467R1
BOLT,3/4" - 10 x 5 1/2", Steel
U-BOLT, 3/4, units A, C, D, G and H, with straight and offset beams
4шт.
8
541654R1
BOLT,U, 3/4" - 10 x 168.90mm
U-BOLT, 3/4, units B, E, F, and J, with straight and offset beams
4шт.
8
541655R1
BOLT,U, 3/4" - 10 x 192.80mm
U-BOLT, 3/4, unit K, with straight and offset beams
4шт.
9
273312
BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5
SCREW, 5/8-11 x 5-1/2 znd hex-hd cap, 8 for units A, C, D, G and H, with wheel track beam
1шт.
9
21275R1
BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5
SCREW, 5/8-11 x 6-1/2 znd hex-hd cap, 8 for units B, E, F and J, with wheel track beam
1шт.
9
19995R1
BOLT,Hex, 5/8" - 11 x 8 1/2", Gr 5
SCREW, 5/8-11 x 8-1/2 znd hex-hd cap, 8 for unit K, with wheel track beam
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
124589
BALL STUD,Hex, 5/8" - 11 x 2", Gr 5
5/8-11 znd hex.
8шт.
Выбрано товаров: 30
