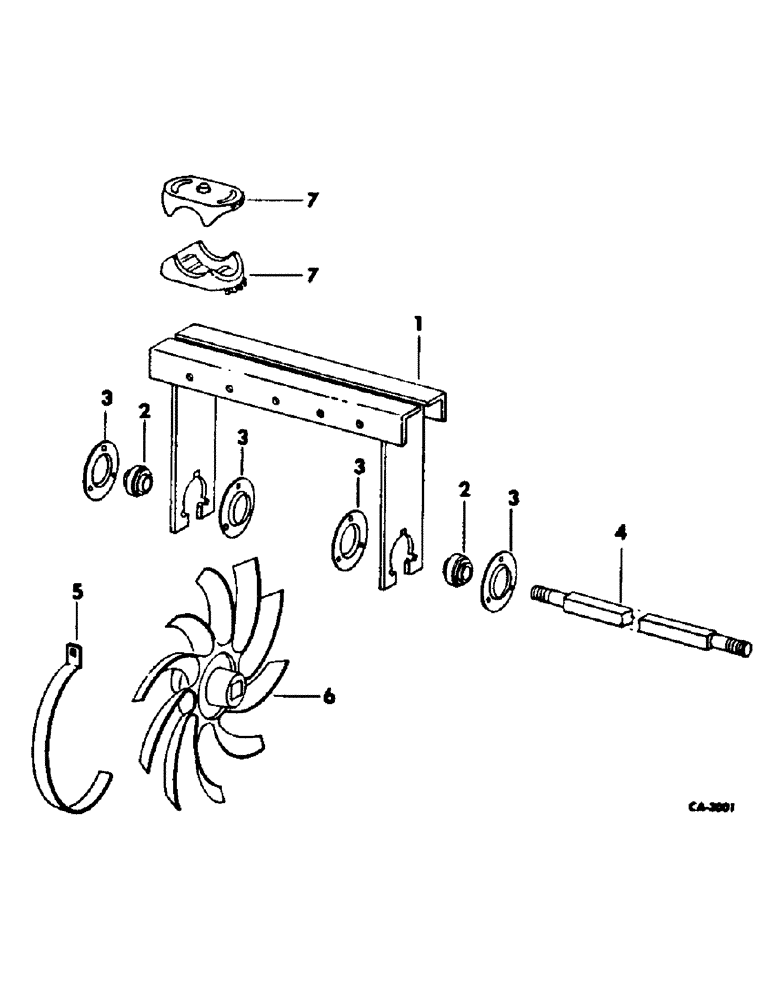

Запчасти Case IH 353 (AT-15) - FOUR WHEEL TILLAGE, FOR UNITS A, B, G, H, J AND K

1

55543C1

FRAME ASSY, wheel

4шт.

2

55557C91

BEARING

ball

8шт.

3

612032R1

FLANGE, adapter bearing

16шт.

477794R1

BOLT, 5/16-18 x 1 znd crg

24шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

120376

NUT,5/16"-18, G5

24шт.

4

55544C1

SHAFT

4шт.

19638R1

LOCK NUT,3/4"-16, GB

NUT, 3/4-16 znp nylon insert lock

8шт.

5

55546C1

BAR

scraper

12шт.

477796R1

BOLT, 3/8-16 x 1 znd crg

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

6

55549C1

WHEEL

rotary tillage RH

8шт.

6

55548C1

WHEEL

rotary tillage LH

8шт.

7

55545C1

CLAMP, half

8шт.

26224R1

BOLT,Short NK, 5/8"-11 x 5", G5

5/8-11 x 5 znd sq-nk crg

8шт.

542978R1

WASHER

8шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 znd hex.

8шт.

55547C1

CLIP

4шт.
