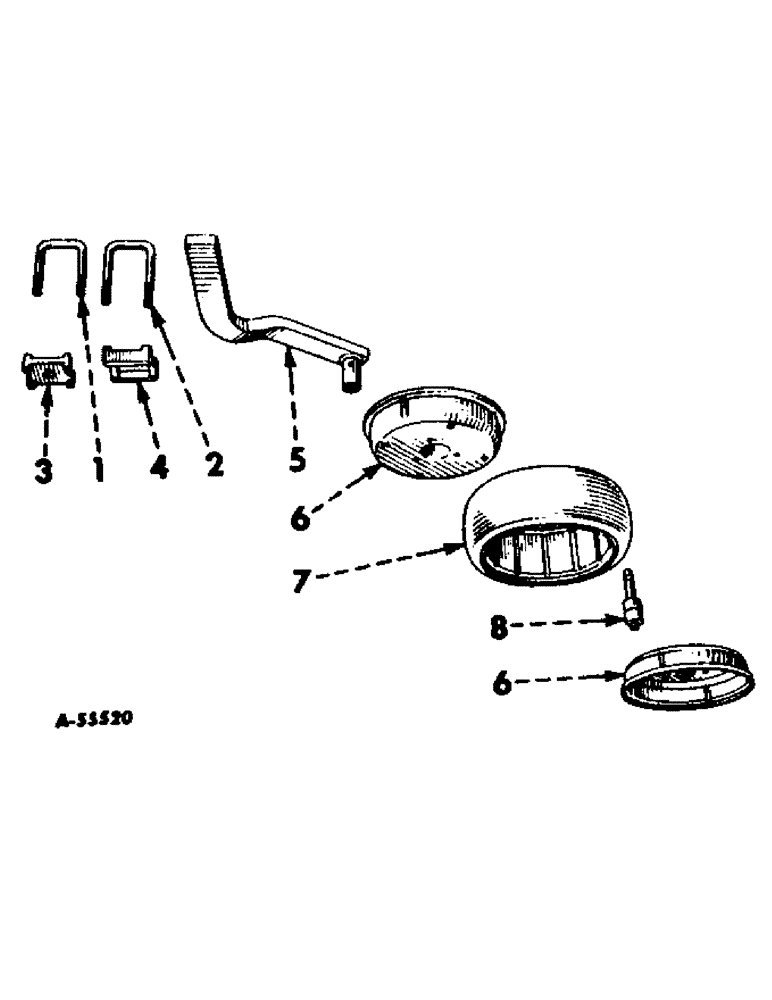

Запчасти Case IH 353 (AT-13) - GAUGE WHEEL, FOR UNITS C THRU F

1

522572R2

BOLT,U, 1/2" - 13 x 3 3/16"

U-BOLT, standard, square tooling

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

1

547819R1

U-BOLT, standard, round tooling

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

2

(Not used in this application)

1шт.

3

522571R2

BLOCK

standard clamp, square tooling

2шт.

3

547822R1

BLOCK, clamp, round tooling

1шт.

4

547823R1

CLIP, gauge wheel, round tooling

1шт.

5

492842R1

SUPPORT ASSY.

STANDARD ASSY, LH, square tooling

1шт.

5

492843R1

SUPPORT ASSY.

STANDARD ASSY, RH, square tooling

1шт.

5

547820R1

STANDARD ASSY, gauge wheel, round tooling

1шт.

22227R1

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, 3/8-16 x 3/8 C-Z hex-soc-hd f-pt set

2шт.

6

526768R1

WHEEL

RIM, gauge wheel

4шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16-18 x 5/8 C-Z hex-hd mach

14шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

120376

NUT,5/16"-18, G5

14шт.

7

516492R1

TYRE/TIRE

TIRE, 4 x 12 semi-pneumatic

2шт.

8

ST667

BEARING

ASSY

2шт.
