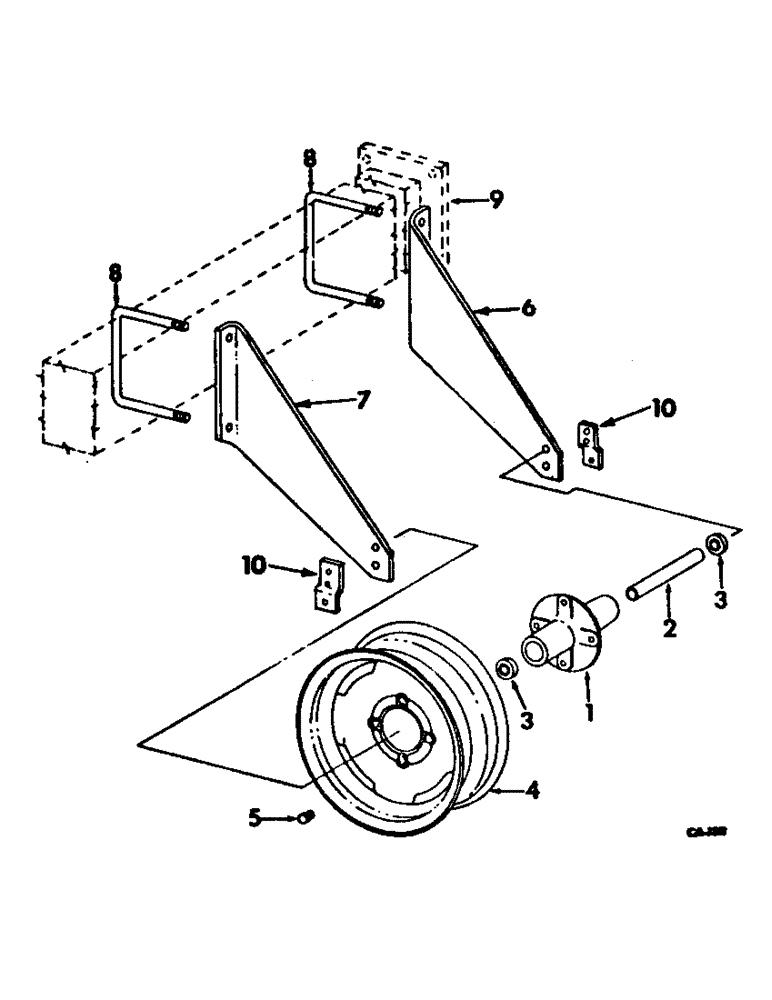

Запчасти Case IH 353 (AT-12) - TOOL BAR CARRYING WHEELS, FOR UNITS B, E, F, J AND K

1

465418R2

HUB

wheel

2шт.

2

465423R1

PIPE

SPACER, pipe

2шт.

3

611050R91

BALL BEARING,0.638" ID x 1.5748" OD x 0.72"

ball, replaces 666624R91

4шт.

4

463036R1

WHEEL (STEERING)

WHEEL ASSY, 14 in.

2шт.

5

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

8шт.

6

492997R1

ARM, wheel LH

2шт.

7

492998R1

ARM, wheel RH

2шт.

18065R1

BOLT,Hex, 5/8"-11 x 12", G2

5/8-11 x 12 hex-hd mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

8

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

wheel arm, for units B, E, F and J

4шт.

8

1250813C1

U-BOLT

wheel arm, for unit K

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

9

TUBE ASSY, refer to frame unit

1шт.

10

542980R1

CLIP, ext, for units B and J

4шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 znd hex-hd cap

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex-hd

8шт.
