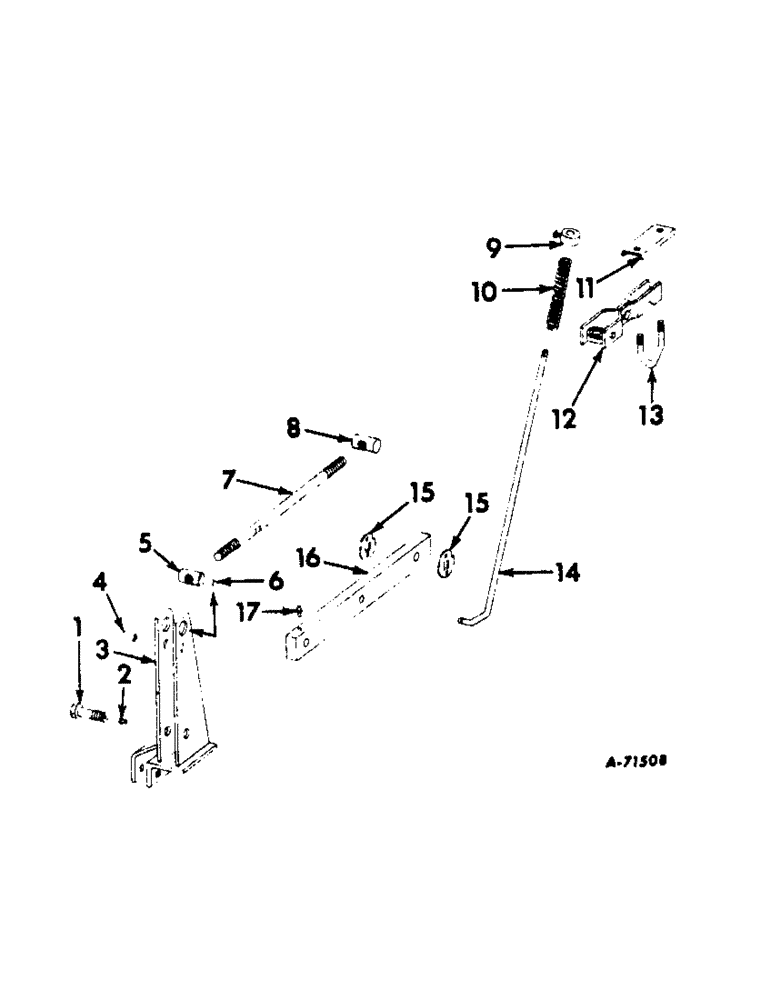

Запчасти Case IH 268 (S-07) - FIRST GANG PARALLEL LINKAGE
№
Артикул
Название
Примечание
Количество
1
522544R2
BOLT
3/4 x 2-1/2 in, mach, special
1шт.
426897
JAM NUT,Jam, 3/4"-10, G5
3/4 in. C-Z jam
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
2
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
FITTING, 1/4 in. straight lubrication
1шт.
3
467637R91
PLATE, tool bar attaching LH
1шт.
3
467638R91
PLATE, tool bar attaching RH
1шт.
523060R1
BOLT, 1/2 x 2-1/4 in. crg, special, heat-treated
1шт.
468732R1
BOLT, 3/4 x 2-1/2 in. mach, special
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
426897
JAM NUT,Jam, 3/4"-10, G5
1/2 in. C-Z jam
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
4
522537R1
SPACER
tool bar attaching plate
1шт.
18810R1
BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2
1/2 x 2-1/4 in. C-Z mach
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
5
522510R1
BAR
SWIVEL, rear upper parallel link, RH thread
1шт.
19289R1
BOLT, 1/2 x 3/4 in. cd-pltd mach
1шт.
6
522591R1
PLUG
CUSHION, upper parallel link lock bolt
1шт.
7
522506R2
TURNBUCKLE
ROD, upper parallel
1шт.
8
522509R1
BAR
SWIVEL, rear upper parallel link, LH thread
1шт.
9
516595R11
COLLAR,16.67mm ID x 28.5mm OD x 19mm L
COLLAR W/SET SCREW, lift rod
1шт.
85-15010
SET SCREW,Sq Hd, 1/2"-13 x 5/8"
SCREW, 1/2 x 5/8 in. cup-pt sq-hd set
1шт.
10
PO3A
SPRING
lift rod cushion
1шт.
11
CLIP, lift arm, discontinued for service
1шт.
12
467649R91
ARM
lift short
1шт.
NLS
NO LONGER SERVICED
3/8 x 1 in. rd-hd
1шт.
13
522508R1
BOLT,U, 1/2" x 3 1/8"
U-BOLT, lift arm
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
14
467643R1
ROD, no. 1 inside lift
1шт.
15
464414R1
RETAINER
WASHER, lower parallel link inner bearing
1шт.
16
464409R2
LINK, lower parallel inner
1шт.
17
110161
FITTING, 3/16 in. straight drive type lubrication
1шт.
Выбрано товаров: 33
