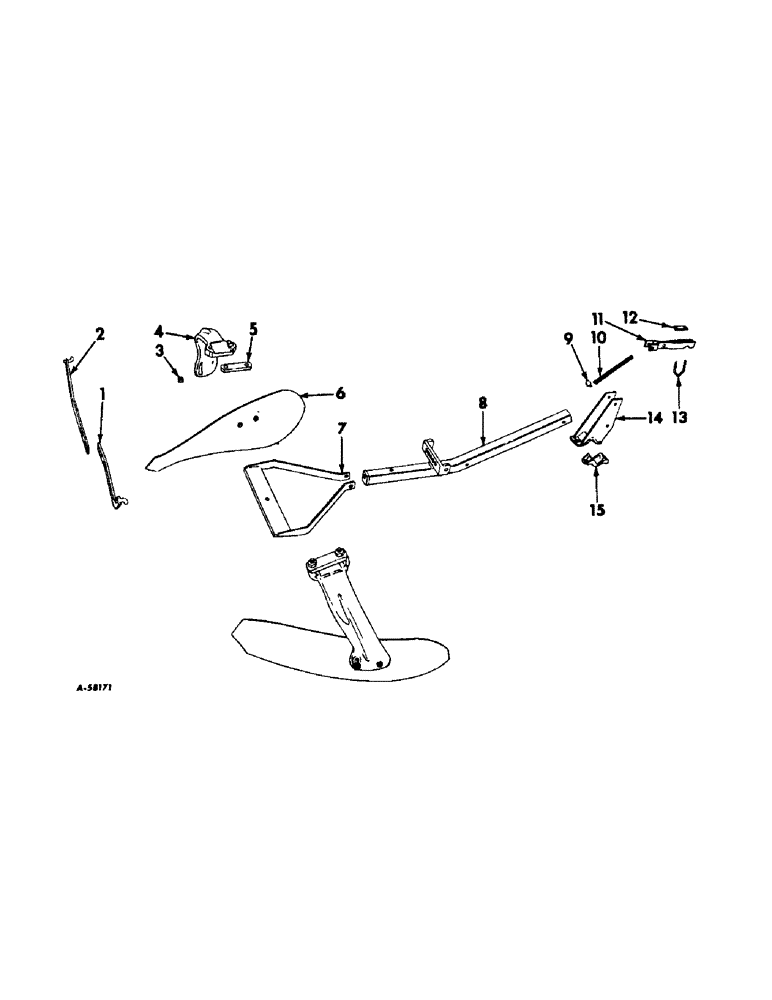

Запчасти Case IH 268 (S-18) - POTATO HOE ATTACHMENT

1

463496R11

STRAP ASSEMBLY, jockey RH

60шт.

1

461706R91

STRAP ASSEMBLY, jockey RH (58)

60шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 type 1

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

2

463495R11

STRAP ASSEMBLY, jockey LH

60шт.

2

461705R91

STRAP ASSEMBLY, jockey LH (58)

60шт.

3

484BA

WASHER

WASHER, special

1шт.

4

1873BB

STANDARD LH

1шт.

4

1872BB

STANDARD RH

1шт.

5

PO27382

CLIP, standard

1шт.

18613R1

BOLT,Hex, 3/4"-10 x 3 1/4", G2

3/4 x 3-1/4 type 1

2шт.

280954

NUT,3/4"-10, G5

2шт.

6

29635B

BLADE, hoe LH

1шт.

6

29636B

BLADE, hoe RH

1шт.

15604R1

SCREW,#3, 7/16" - 14 x 1 3/4", Gr 2

BOLT, 7/16 x 1-3/4 pln plow type 1

1шт.

15633R1

PLOW BOLT,#3, 7/16" - 14 x 2 1/4", Gr 2

BOLT, 7/16 x 2-1/4 pln plow type 1

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

271501

SOCKET

NUT, 7/16 type 5

2шт.

7

463492R91

BAR ASSEMBLY, frame

60шт.

7

30070BA

BAR ASSEMBLY, frame (58)

60шт.

22019R1

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 2

7/16 x 3-1/4 type 8

1шт.

18827R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 2

5/8 x 3-1/2 type 1

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

8

461699R91

PIPE ASSEMBLY, frame LH

1шт.

8

461700R92

PIPE ASSEMBLY, frame RH

1шт.

9

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR ASSEMBLY, set

1шт.

10

PO23

SPRING

lift rod pressure

1шт.

11

525666R91

ARM ASSEMBLY, long lift

1шт.

12

CLIP, lift arm U-bolt, discontinued for service

1шт.

104113

RIVET,But Hd, 3/8" x 1"

3/8 x 1 pln but/hd sol

1шт.

13

522508R1

BOLT,U, 1/2" x 3 1/8"

U-BOLT, lift arm

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

14

461704R11

PLATE ASSEMBLY, attaching

1шт.

15

518859R1

CLAMP

CAP, clamp

1шт.

27463R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 3/4", Gr 5

BOLT, 1/2 x 3-3/4 crg type 5

1шт.

18850R1

BOLT

7/8 x 3 type 1

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.
