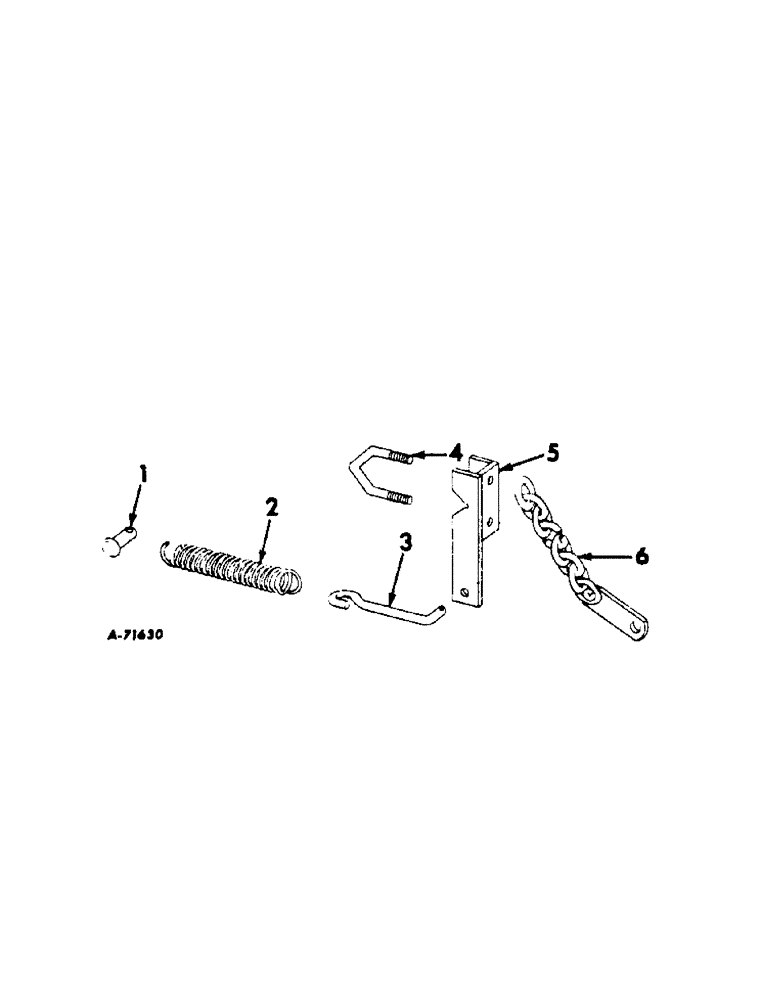

Запчасти Case IH 268 (S-15) - DEPTH CHAIN AND RETURN SPRING

1

467685R1

PIN

spring attaching

1шт.

2

PO27

SPRING

cylinder return

1шт.

3

467684R1

SWIVEL, return spring arm

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

4

522508R1

BOLT,U, 1/2" x 3 1/8"

U-BOLT, return spring arm

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

467681R91

ARM, return spring

1шт.

6

527030R91

CHAIN (AG)

CHAIN, depth

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 in. rd-hd

1шт.
