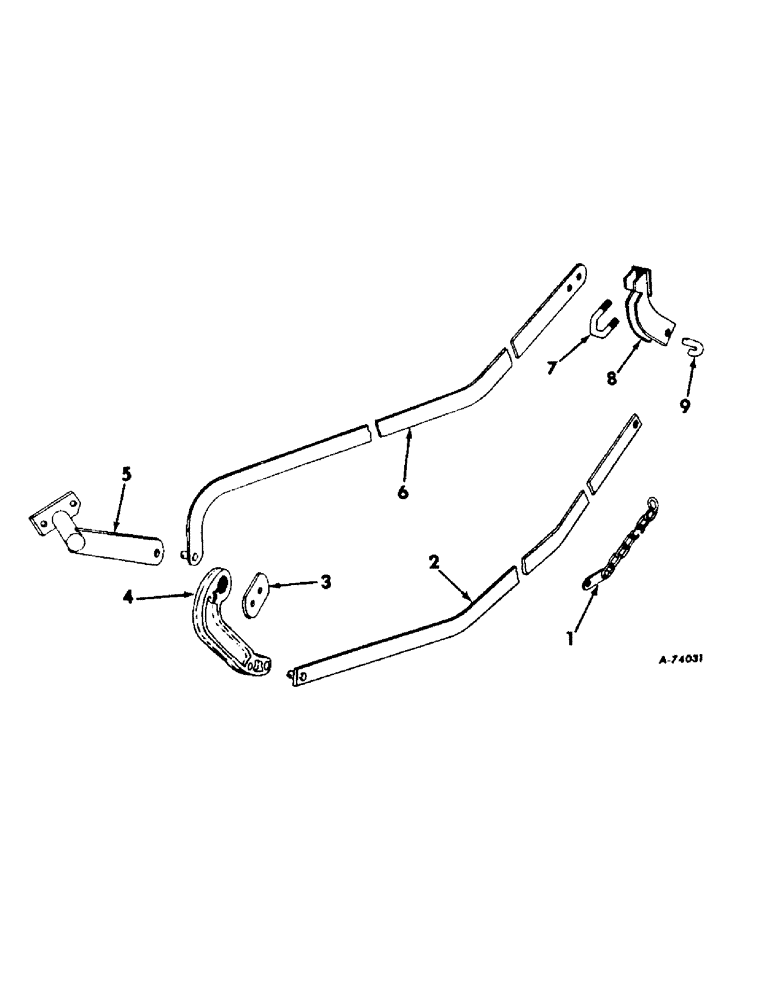

Запчасти Case IH 268 (S-14) - SIMULTANEOUS LIFT, 1963

1

527030R91

CHAIN (AG)

CHAIN, depth inside gang

1шт.

For use with Farmall 504 tractors

1шт.

1

527030R91

CHAIN (AG)

CHAIN, depth inside gang

2шт.

For use with Farmall 460 and 560 tractors

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 pln but/hd sol

2шт.

2

472697R91

LINK ASSEMBLY, lift LH

1шт.

For use with Farmall 504 tractors

1шт.

2

472698R91

LINK ASSEMBLY, lift RH

1шт.

For use with Farmall 504 tractors

1шт.

520172R1

PIN, quick-attachable cotter

2шт.

3

466375R1

CLIP, simultaneous lift arm

1шт.

For use with Farmall 460 and 560 tractors

1шт.

3

466375R1

CLIP, simultaneous lift arm

2шт.

For use with Farmall 504 tractors

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8 x 1-1/4 in. cap

2шт.

4

466360R1

ARM, simultaneous lift LH

1шт.

For use with Farmall 504 tractors

1шт.

4

466361R1

ARM, simultaneous lift RH

1шт.

For use with Farmall 504 tractors

1шт.

5

467662R91

ARM ASSEMBLY, simultaneous lift LH

1шт.

For use with Farmall 460 and 560 tractors

1шт.

467663R91

ARM ASSEMBLY, simultaneous lift RH

1шт.

For use with Farmall 460 and 560 tractors

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

4шт.

6

472703R91

LINK ASSEMBLY, simultaneous lift LH

1шт.

For use with Farmall 460 and 560 tractors

1шт.

6

472704R91

LINK ASSEMBLY, simultaneous lift RH

1шт.

For use with Farmall 460 and 560 tractors

1шт.

520175R1

CLIP

PIN, quick-attachable cotter

2шт.

7

520309R1

U-BOLT, lift arm

2шт.

102639

NUT,5/8"-11, G5

4шт.

8

472700R91

ARM ASSEMBLY, simultaneous lift rockshaft

1шт.

9

472696R1

PIN, lift arm

2шт.

520175R1

CLIP

PIN, quick-attachable cotter

2шт.
