Запчасти Case IH 268 (S-13) - SIMULTANEOUS LIFT, 1962-63

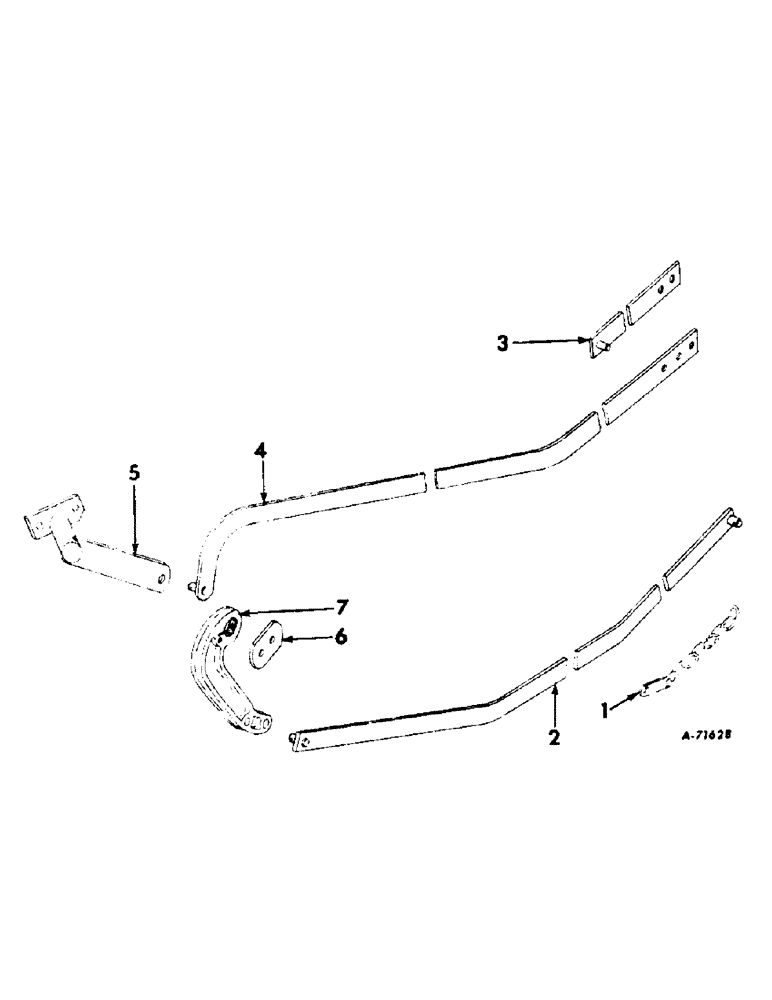

Схема запчастей Case IH 268 - (S-13) - SIMULTANEOUS LIFT, 1962-63
5
3
4
6
1
2
7

Артикул

Название

Примечание

Количество

1

527030R91

CHAIN (AG)

CHAIN, depth inside gang, unit A

2шт.

For use with Farmall 460 and 560 tractors

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 in. rd-hd

2шт.

2

467671R91

LINK, simultaneous lift LH, unit B

1шт.

For use with Farmall 504 tractors

1шт.

2

467672R91

LINK, simultaneous lift RH, unit B

1шт.

520175R1

CLIP

PIN, quick-attachable cotter

1шт.

3

467670R11

STRAP, simultaneous lift, unit A

1шт.

520175R1

CLIP

PIN, quick-attachable cotter

1шт.

4

467667R91

LINK, simultaneous lift LH, unit A

1шт.

4

467668R91

LINK, simultaneous lift RH, unit A

1шт.

5

467662R91

ARM, simultaneous lift LH, unit A

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

5

467663R91

ARM, simultaneous lift RH, unit A

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

6

466375R1

CLIP, simultaneous lift arm, unit B

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8 x 1-1/4 in. C-Z cap

2шт.

7

466360R1

ARM, simultaneous lift LH, unit B

1шт.

7

466361R1

ARM, simultaneous lift RH, unit B

1шт.

Выбрано товаров: 19
