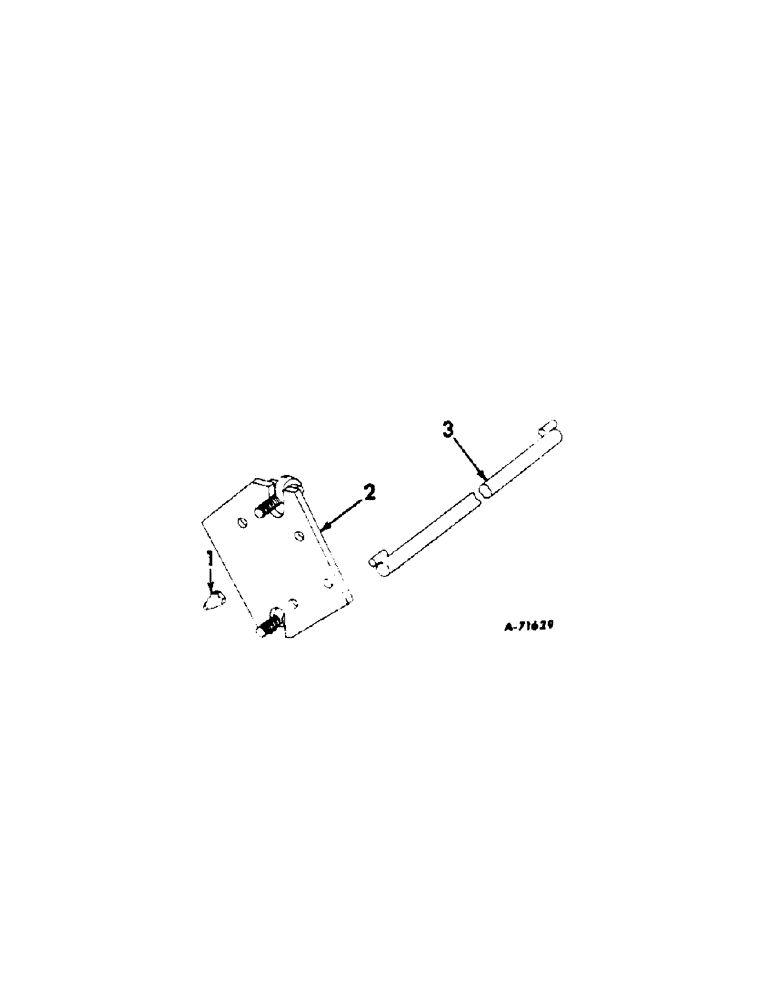

Запчасти Case IH 268 (S-13[A]) - ADAPTER PLATES

1

467658R1

NUT

main frame guide, for 467657R1 bolt

1шт.

2

467653R92

PLATE, adapter LH

1шт.

2

467654R92

PLATE, adapter RH, 5/8 in. thick

1шт.

467657R1

BOLT,Short NK, 5/8"-11 x 1 1/2", G5, Full Thd

5/8 x 1-1/2 in. C-Z pltd special crg

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 in. C-Z

2шт.

280954

NUT,3/4"-10, G5

2шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8 x 1-1/2 in. C-Z cap

2шт.

589068R1

WASHER

21/32 x 1-1/4 in. x 11 ga C-Z

2шт.

23471S

WASHER

25/32 x 1-1/2 in. x 7 ga C-Z pltd

2шт.

3

467659R91

BRACE, stabilizer, for 4 and 6 row

1шт.
