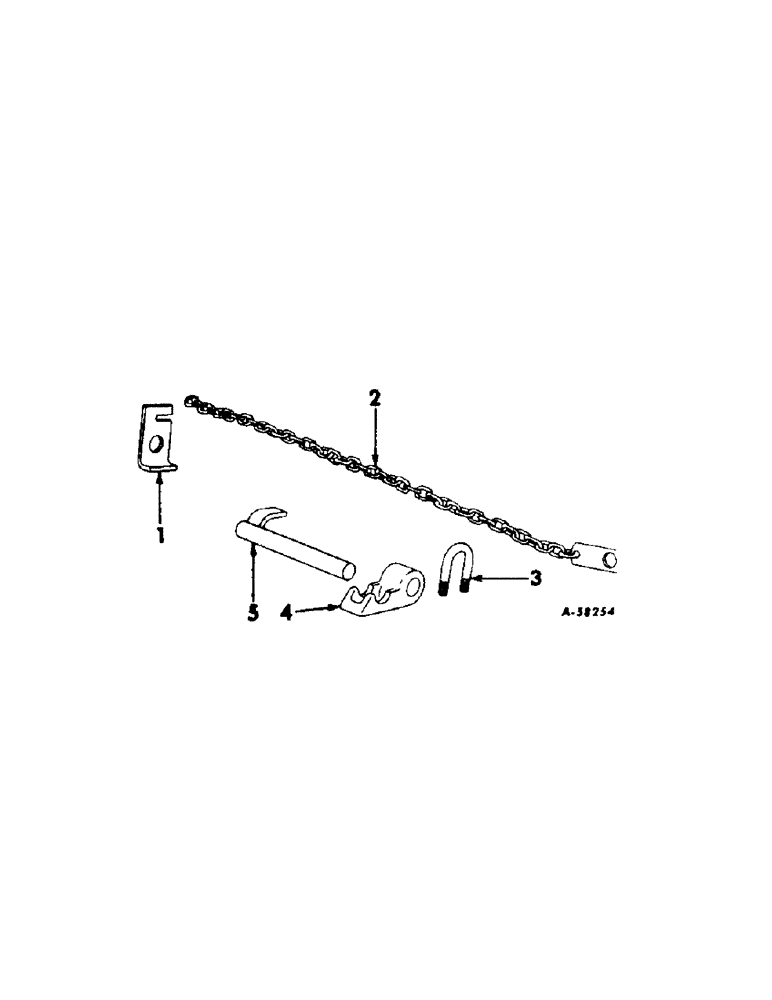

Запчасти Case IH 268 (S-11[A]) - DEPTH CHAIN AND STOPS

1

527031R1

BRACKET, depth chain left

1шт.

For 268 cultivator

1шт.

1

527032R1

BRACKET, depth chain right

1шт.

For 268 cultivator

1шт.

2

527030R91

CHAIN (AG)

CHAIN, w/clip, 40 links no. 2 steel chain

1шт.

For 268 cultivator

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 in. b-hd

1шт.

3

527036R1

U-BOLT, clamp

1шт.

Not used on the 268 cultivator

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

527035R11

CLAMP, adjusting

1шт.

Not used on the 268 cultivator

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2 x 3/4 in. cup-pt sq-hd set

1шт.

5

527033R11

ROD, adjusting

1шт.

Not used on the 268 cultivator

1шт.
