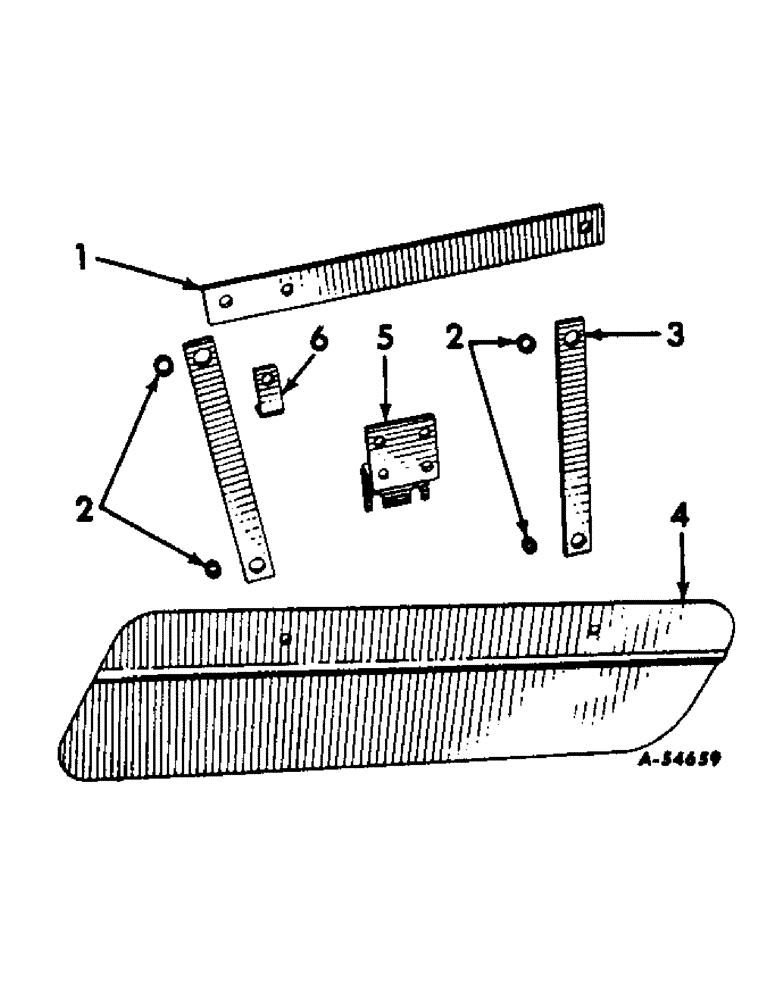

Запчасти Case IH 268 (S-10) - SHIELD

1

526452R1

SUPPORT, shield

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 in. mach

1шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 in. mach

1шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 in. mach

1шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Q1505

WASHER

13/32 x 1 in. x 16 ga

2шт.

114607

1/4 in. ext-tooth lock

1шт.

2

512836R1

WASHER

BUSHING, pivot link

1шт.

3

510754R1

LINK, pivot, straight

1шт.

3

484325R1

LINK, pivot, offset

1шт.

3

513237R1

LINK, pivot, offset

1шт.

4

526319R1

SHIELD

left

1шт.

4

526320R1

SHIELD

right

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 in. mach

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Q1505

WASHER

13/32 x 1 in. x 16 ga

2шт.

5

29815B

BRACKET, shield support

1шт.

6

515217R1

SUPPORT

CLIP, shield adjusting

1шт.
