Запчасти Case IH 268 (S-08) - GAUGE WHEELS

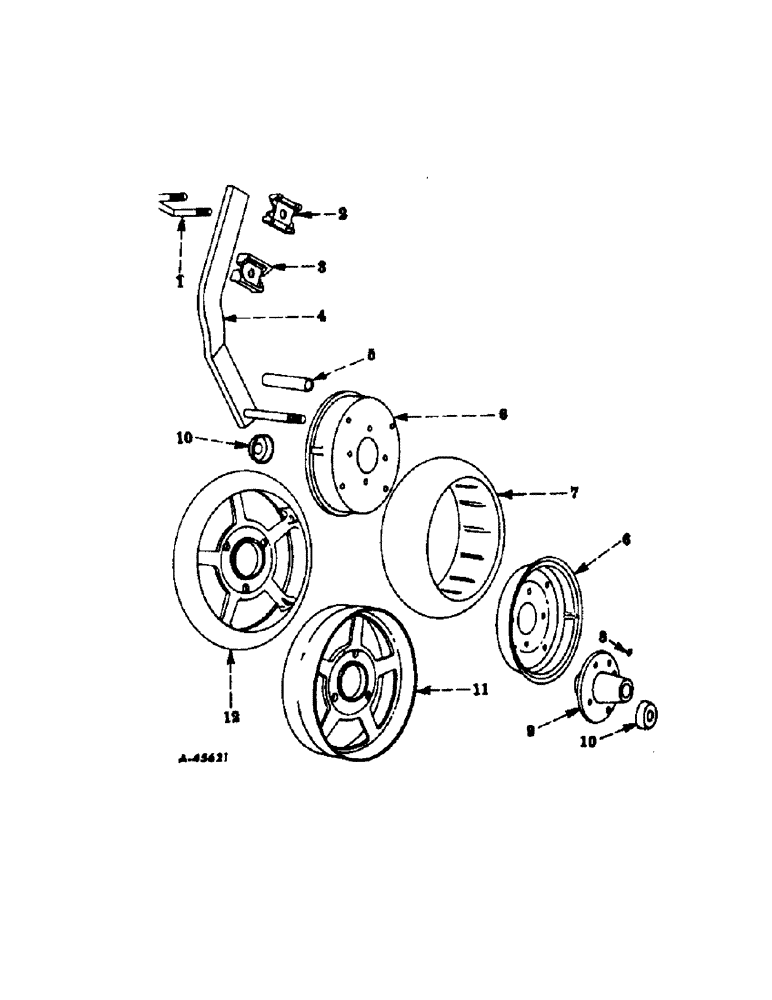

Схема запчастей Case IH 268 - (S-08) - GAUGE WHEELS
5
10
9
2
6
11
12
6
1
4
7
8
3
10

Артикул

Название

Примечание

Количество

1

522572R1

BOLT

U-BOLT, standard, for square tool bar

1шт.

1

522647R1

BOLT,U, 1/2" - 13 x 3 5/8"

U-BOLT, standard, for pipe tool bar

1шт.

102637

NUT,1/2"-13, G5

2шт.

2

522571R1

BLOCK

standard clamp, for square tool bar

1шт.

3

522635R1

CLAMP

BLOCK, standard clamp left, for pipe tool bar

1шт.

3

522636R1

CLAMP

BLOCK, standard clamp right, for pipe tool bar

1шт.

4

483272R91

STANDARD ASSY, gauge wheel

1шт.

4

478429R91

STANDARD ASSY, LH

1шт.

4

478430R91

SUPPORT ASSY.

STANDARD ASSY, RH

1шт.

478293R1

LOCK NUT,3/4"-10, GB

NUT, 3/4 in. Maclean Fogg two-way

2шт.

Q3481

WASHER

1-1/32 x 1-1/2 in. x 16 ga

4шт.

5

519893R1

BUSHING

wheel

1шт.

6

516491R2

RIM

wheel, zero-pressure tire

2шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 in. C-Z pltd mach

4шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 in. C-Z pltd mach

4шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

134238R1

WASHER

11/32 x 1 in. x 16 ga

1шт.

7

516492R1

TYRE/TIRE

TIRE, rubber, zero-pressure

1шт.

8

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 in. drive type straight lubrication

1шт.

9

519029R21

HUB

W/FITTING, wheel

1шт.

10

522371R1

WASHER

COLLAR, sand

1шт.

11

1750B

WHEEL, gauge, flat tire

1шт.

12

1688B

WHEEL, gauge, V-tire

1шт.

17472R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 in. mach

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

Выбрано товаров: 26
