Запчасти Case IH 266 (R-03) - FIRST GANG PARALLEL LINKAGE

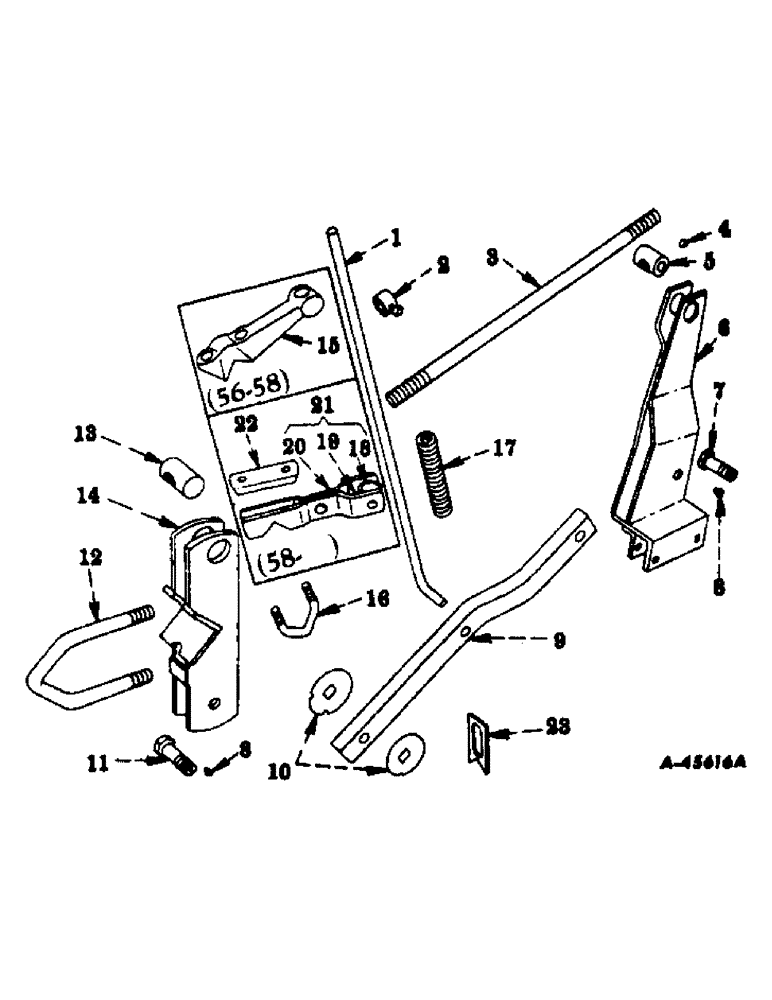

Схема запчастей Case IH 266 - (R-03) - FIRST GANG PARALLEL LINKAGE
12
10
18
16
4
18
17
5
8
8
23
9
15
7
1
6
20
8
11
21
19
14
2
22

Артикул

Название

Примечание

Количество

1

522503R1

ROD LIFT

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

523061R1

WASHER

21/32 x 1-3/8 in. x 11 ga case hardened

1шт.

2

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, lift rod

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. sq-hd cup-pt set

1шт.

3

523448R1

ROD

upper parallel

1шт.

4

522591R1

PLUG

CUSHION, upper parallel link locking bushing fibre

1шт.

5

522510R1

BAR

SWIVEL, upper parallel link rear, rh-thd

1шт.

19289R1

BOLT, 1/2 x 3/4 in. cd-pltd mach

1шт.

6

525843R91

BRACKET, inner tool bar left attaching

1шт.

6

525844R91

BRACKET, inner tool bar right attaching

1шт.

523060R1

BOLT, 1/2 x 2-1/4 in. heat-treated crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

7

522544R2

BOLT

lower parallel link rear pivot

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

8

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, straight 1/4 in. lubrication, Lower parallel link pivot bolt

1шт.

9

525828R1

LINK, inner lower parallel

1шт.

10

522532R1

RETAINER

WASHER, lower parallel link bearing

1шт.

11

522543R2

BOLT,Hex, 3/4" - 10 x 2 3/4"

lower parallel link front pivot

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

12

522498R1

BOLT,U, 3/4" - 10 x 6 5/16"

U-BOLT, head bracket

1шт.

280954

NUT,3/4"-10, G5

1шт.

467750R1

WASHER

25/32 x 1-1/2 in. x 11 ga C-Z

1шт.

13

522509R1

BAR

SWIVEL, upper parallel link front, LH thd

1шт.

14

BRACKET, head, discontinued for service

1шт.

15

ARM, short lift (56), discontinued for service

58шт.

16

522508R2

U-BOLT, lift arm, for 1-1/4 in. sq rockshaft

1шт.

16

523378R1

BOLT,U, 1/2" - 13 x 3 1/4"

U-BOLT, lifr arm, for 1-3/8 in. sq rockshaft

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

17

PO3A

SPRING

inner and outer lift rod cushion

1шт.

18

468022R1

TRUNNION

lift arm

1шт.

19

ARM, left short lift, discontinued for service

1шт.

20

ARM, right short lift, discontinued for service

1шт.

104113

RIVET,But Hd, 3/8" x 1"

3/8 x 1 in. rd-hd

1шт.

21

ARM ASSEMBLY, short lift, discontinued for service

1шт.

22

CLIP, lift arm, discontinued for service

1шт.

23

525670R2

BAR

LOCK, frame

58шт.
