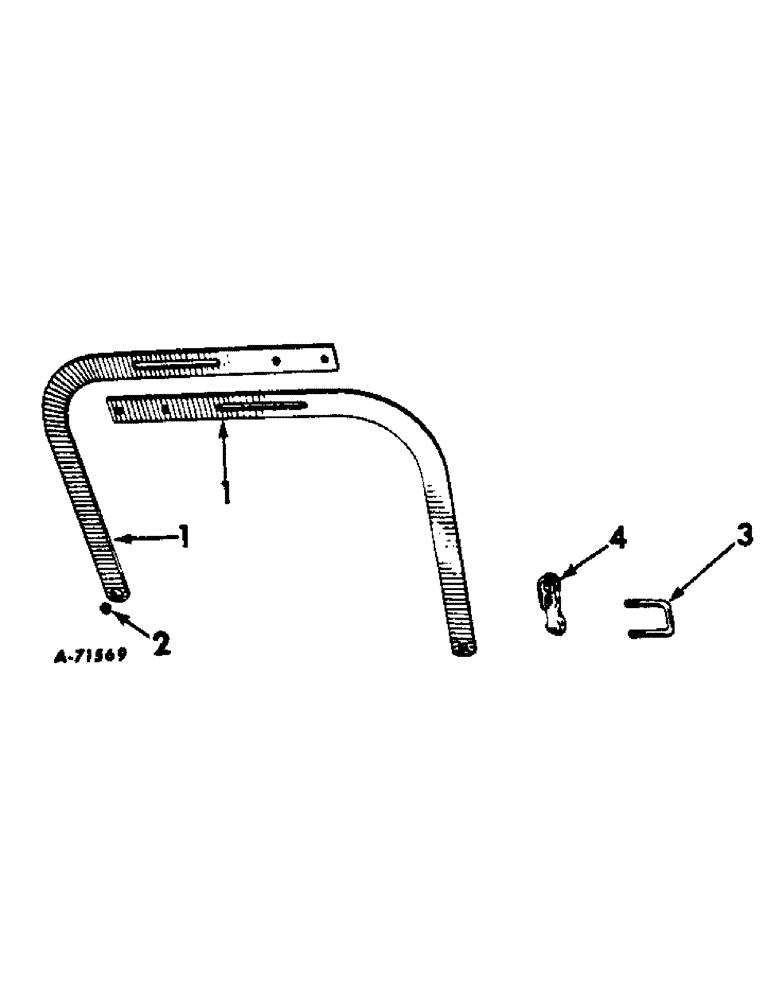

Запчасти Case IH 266 (R-11[A]) - JOCKEY ARCH

1

518974R1

ARCH, jockey

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

1шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 type 1

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

271501

SOCKET

NUT, 7/16 type 5

1шт.

2

S5375

SPACER,3/8" Pipe x 3/8"

pipe

1шт.

3

28140B

U-BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

1226BA

BRACKET, jockey arch

1шт.
