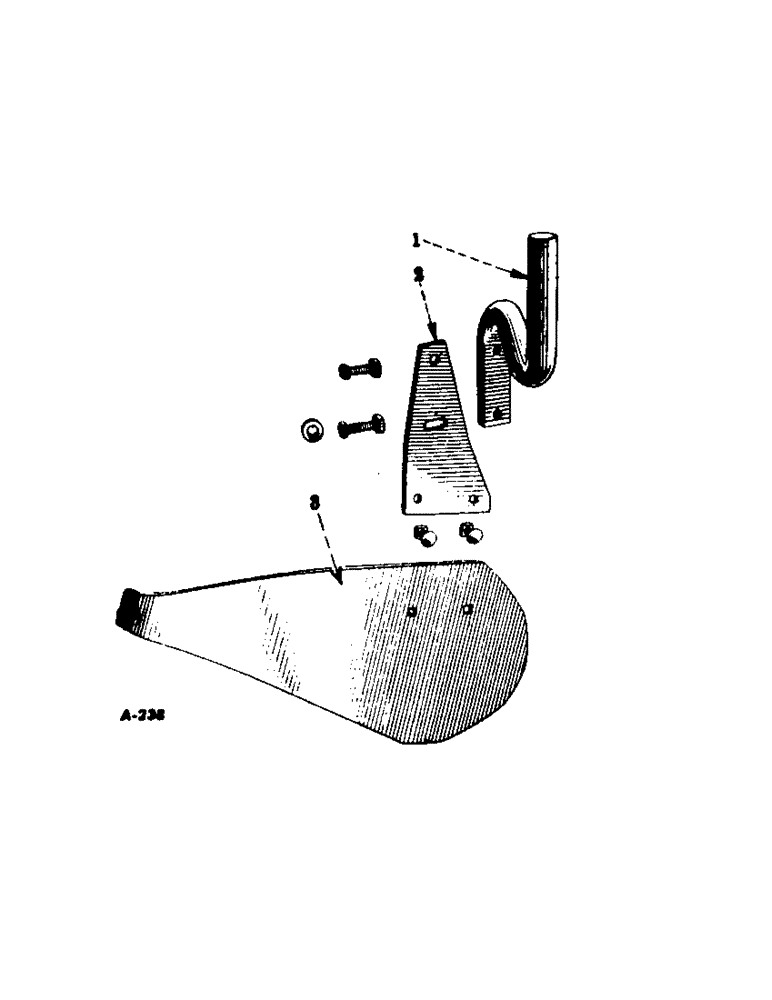

Запчасти Case IH 266 (R-07) - POTATO HILLER

1

29641B

STANDARD, 1-1/4 in. dia 5 in. offset

1шт.

17472R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 in. mach

1шт.

17497R1

BOLT, 7/16 x 1-3/4 in. mach

1шт.

271500

SOCKET

7/16 in.

1шт.

Q5097

WASHER

15/32 x 1-1/4 in. x 16 ga

1шт.

2

30519B

BRACKET, standard left

1шт.

2

30518B

BRACKET, starnard right

1шт.

3

29645B

BLADE, hiller left

1шт.

3

29644B

BLADE

hiller right

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 in. crg

4шт.

102635

NUT,3/8"-16, G5

4шт.
