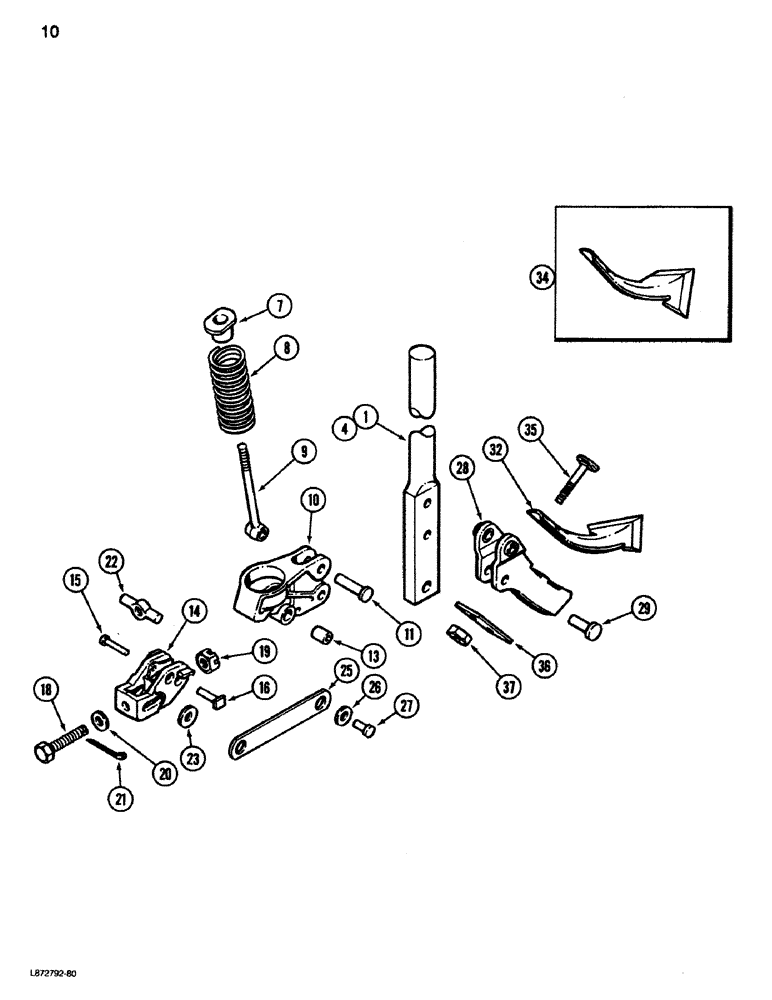

Запчасти Case IH 265 (10) - FRONT SPRING TRIP AND SWEEPS, 416 STYLE

1976203C1

SWEEP

ATTACHMENT - front, standard tractor (Machinery Item, order 0241010)(Includes Ref. 7 through 37)

1шт.

1

518285R2

SUPPORT ASSY.

STANDARD - sweep, short, 13-1/4 inch

4шт.

1976205C1

SWEEP ATTACHMENT - front, high-clearance tractor (Machinery Item, order 0241012)

1шт.

4

518286R1

SUPPORT ASSY.

STANDARD - sweep, long, 15-3/4 inch

4шт.

7

5105BB

NUT

- spring

4шт.

8

15282BA

SPRING

- compression

4шт.

9

27018B

ROD

- spring

4шт.

10

1694BA

BRACKET

- spring

4шт.

11

45-728

RIVET,But Hd, 7/16" x 1 3/4"

- button head, 7/16 x 1-3/4 inch

8шт.

13

27326BA

SPACER

BUSHING - spring rod

4шт.

14

1695BA

YOKE

- adjusting

4шт.

15

104201

TRACK SHOE

- flat head, 3/8 x 1-1/2 inch

4шт.

16

46-724

RIVET,Csk, 7/16" x 1 1/2"

- flat head, 7/16 x 1-1/2 inch

4шт.

18

27015BX

BOLT,Adj, Hex, 1/2" - 13 x 2 3/4", Drilled

ASSEMBLY - adjusting

4шт.

19

121592

SLOTTED NUT,1/2"-13, G5

NUT - hex slotted, 1/2 inch NC

1шт.

20

25710R1

WASHER

- flat, hardened

1шт.

21

648002

KNIFE

1/8" x 3/4"

1шт.

22

27017B

PIVOT

TRUNNION - adjusting yoke

4шт.

23

178374R1

WASHER

- flat, 17/32 x 1-1/4 x 3/64 inch

8шт.

25

27016BA

STRIP

STRAP -, Serial Range: shank-yoke

8шт.

26

25846R1

WASHER

- flat, hardened

8шт.

27

135203

RIVET,Csk, 7/16" x 3/4"

- flat head, 7/16 x 3/4 inch

8шт.

28

30811B

SHANK

- slotted

4шт.

29

30813B

RIVET

- special

4шт.

32

479006R2

SWEEP

- 8 inch, full

2шт.

34

479011R2

SWEEP

- 10 inch, half left

1шт.

34

479012R2

SWEEP

- 10 inch, half right (Shown)

1шт.

35

549783R1

PLOW BOLT,Spcl, 7/16" - 14 x 2 1/2"

BOLT - sweep, special

8шт.

36

490648R1

CLIP

- sweep bolt

4шт.

37

129-104

NUT,7/16"-14, G5

8шт.
